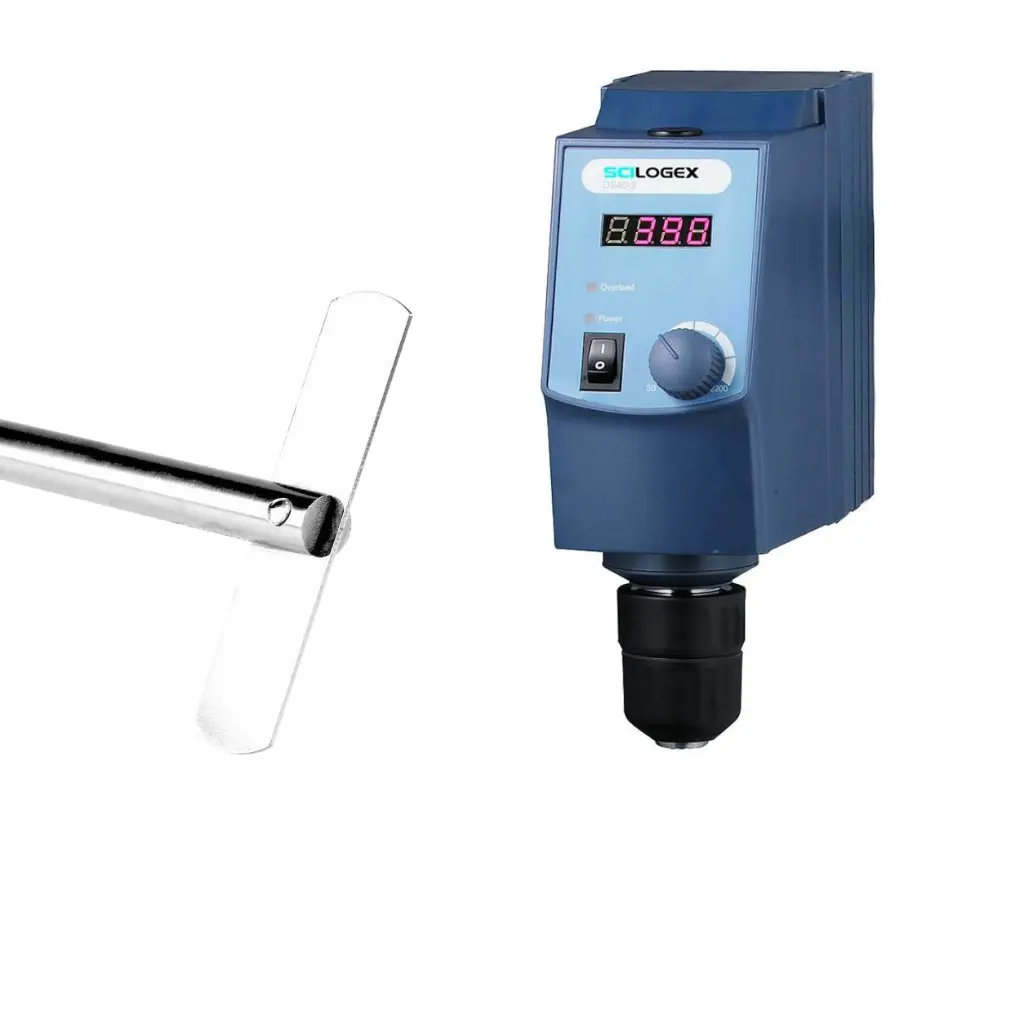

SCILOGEX OS20-S (20L) LED Digital Overhead Stirrer

SCILOGEX OS20-S (20L) LED Digital Overhead Stirrer
Cat. No. 840102019999

SCILOGEX OS20-S Overhead LED Digital Stirrer, 20L Capacity, 100-220V 50/60Hz, US Plug (order stand/impellers separately)

Qty:

660.00 660.0 USD

660.00

Credit Cards

For more information please call +1 (860) 436-9221

or email us at info@scilogex.com

OS20-S LED Digital Overhead Stirrer Features:



  • High reliability and outstanding performance
  • A wide range of speed from 50 to 2200rpm
  • Analog speed controlis displayed on the LED display
  • Brushless DC motor for long life, maintenance free and explosion proof
  • High torque for viscous medium stirring
  • Safety circuits allow for safe stop function in anti-stall or overload conditions
  • LED screen for monitoring actual speed
  • Over torque protection automatically stops the motor
  • A through-shaft design allows for easy adjustment of the impeller position
  • Large chuck diameter for many shaft types
  • Pass through stirrer rods accepted
  • Keyless chuck
  • Multi voltage
  • cTUVus approved for UL and CSA
  • 2 YEAR WARRANTY



OS20-S (20L) LED Digital Overhead Stirrer



OS20-S LED Digital Overhead Stirrer Specifications:



Maximum stirring capacity20 Liters
Maximum torque40Ncm
Viscosity maximum10000mPas
Speed range50-2200rpm
Speed display accuracy± 3rpm
Speed display resolution± 1rpm
Chuck diameter range0.5-10mm
Dimensions3.3W x 8.7H x 7.3Dinches
Motor rating input60W
Motor rating output50W
Weight5.5lbs
Voltage/Power110-220Volts 50/60Hz/ 70W
Motor typebrushless DC motor
Speed displayLED
Overload protection displayLED lights
Protection classIP42
Permissible ambient temperature and humidity5-40°C, 80%RH








SCILOGEX OS20-S (20L) LED Digital Overhead Stirrer Accessories:

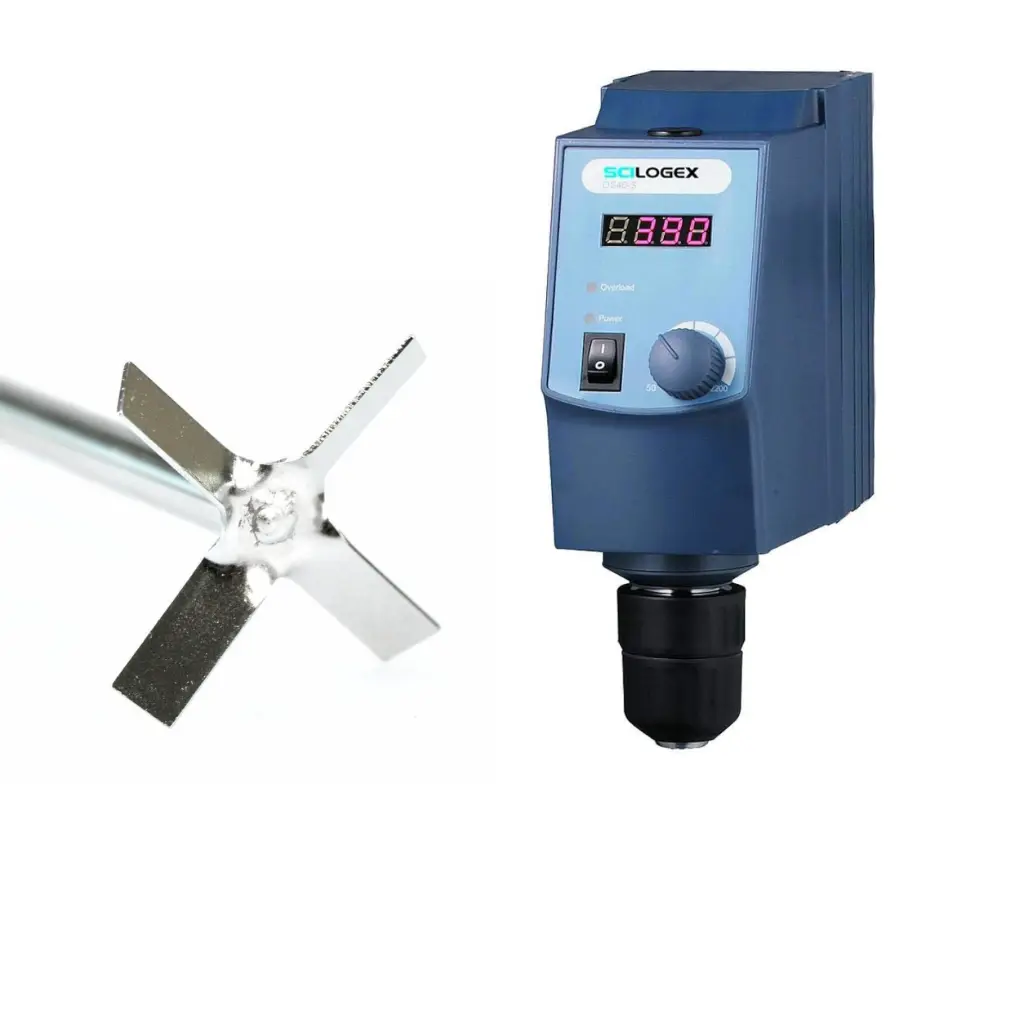

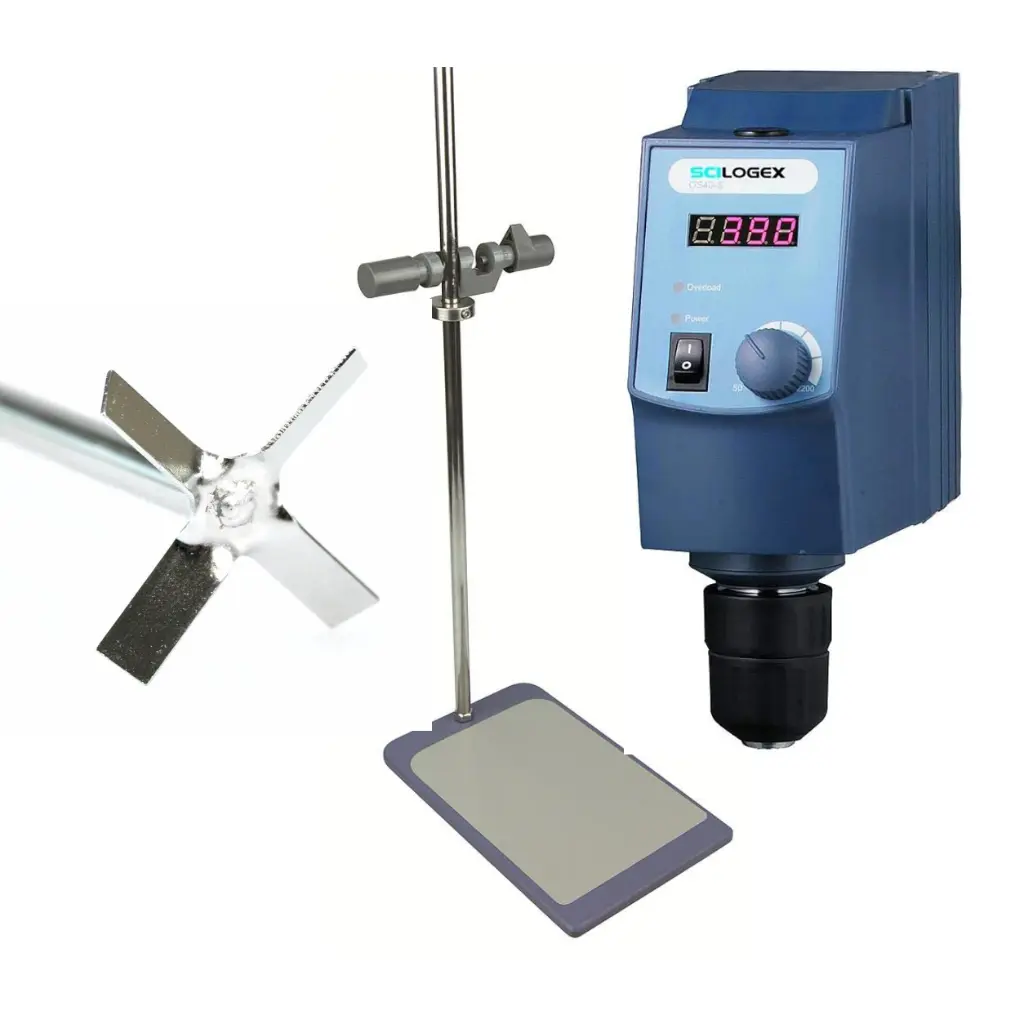

Cross stirrer, 316L stainless steel. Shaft 400mm long x 8mm diameter. Impeller 50mm diameter.
Cat. No.:
18900071
Description:

Cross stirrer, 316L stainless steel. Shaft 400mm long x 8mm diameter. Impeller 50mm diameter.

20.00

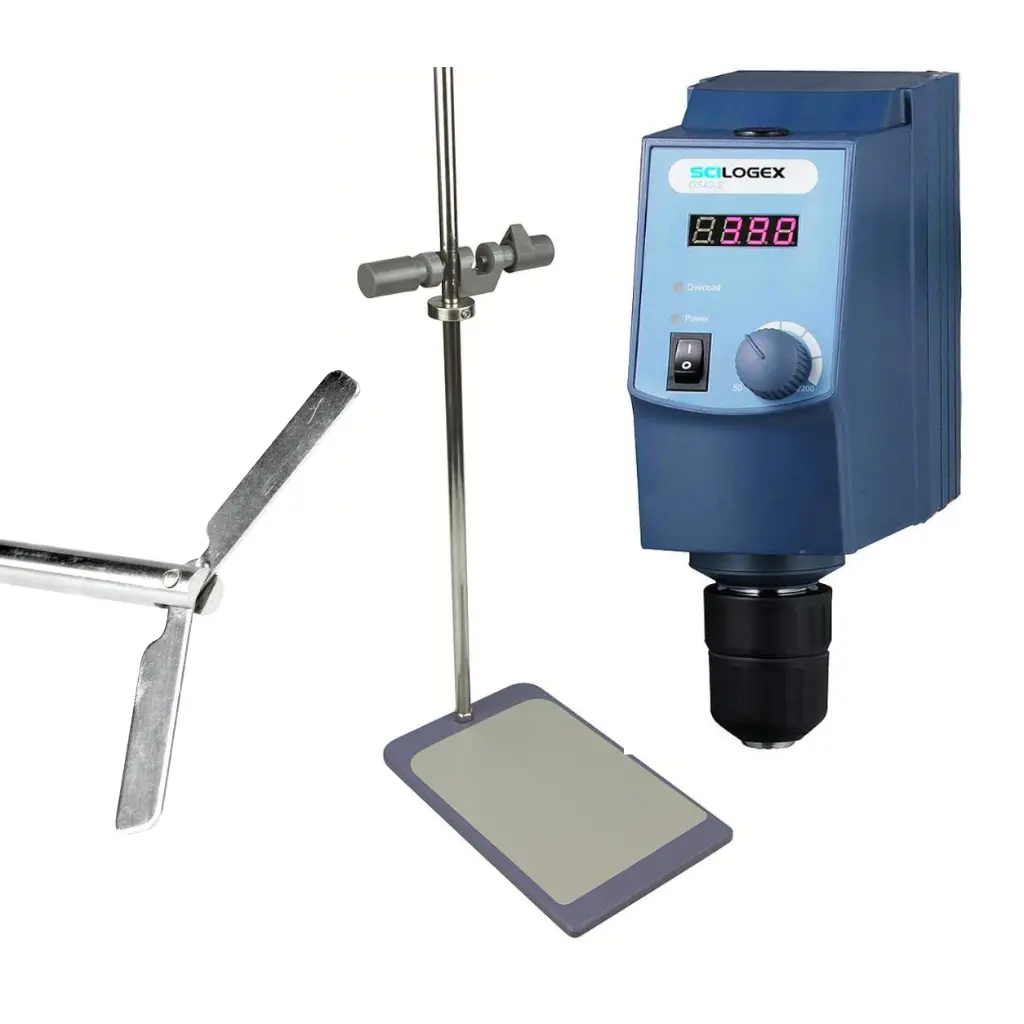

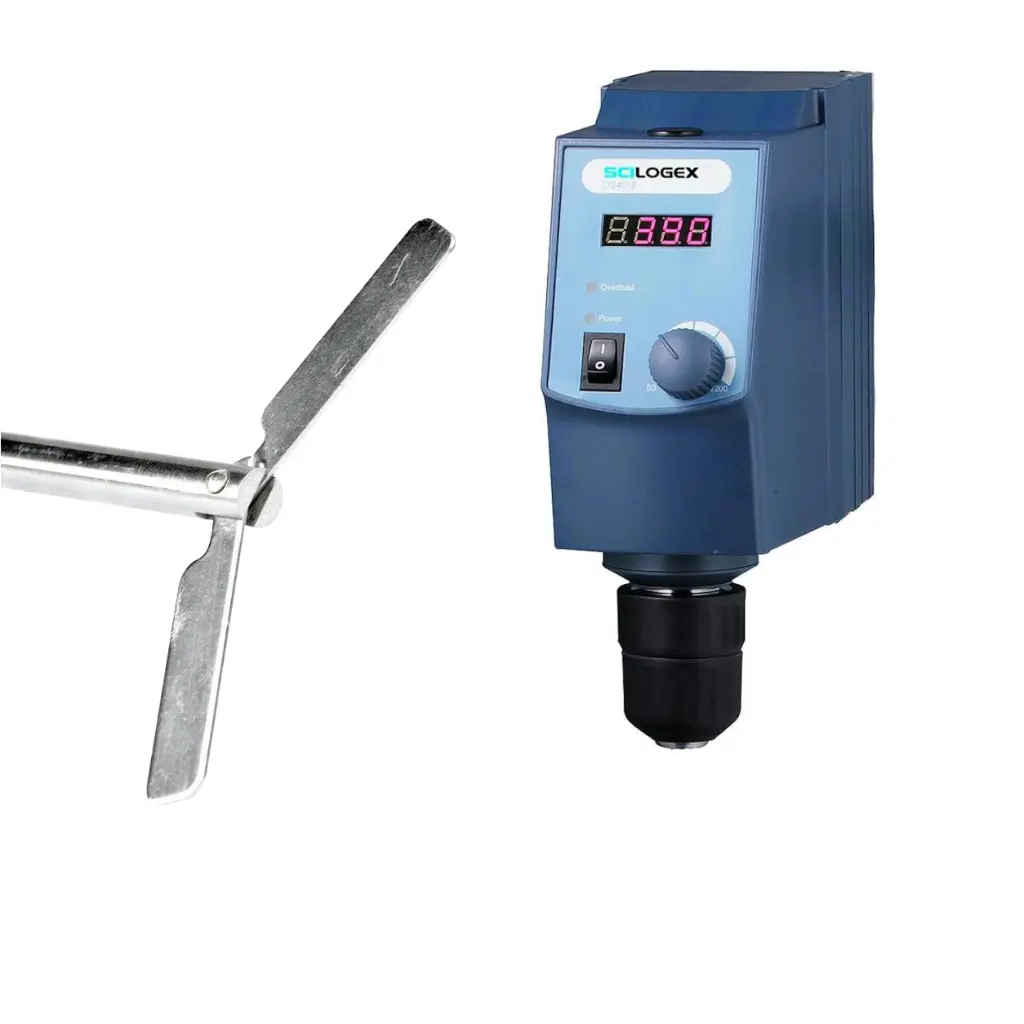

Straight stirrer, 316L stainless steel. Shaft 400mm long x 8mm diameter. Impeller 60mm diameter.
Cat. No.:
18900072
Description:

Straight stirrer, 316L stainless steel. Shaft 400mm long x 8mm diameter. Impeller 60mm diameter.

54.00

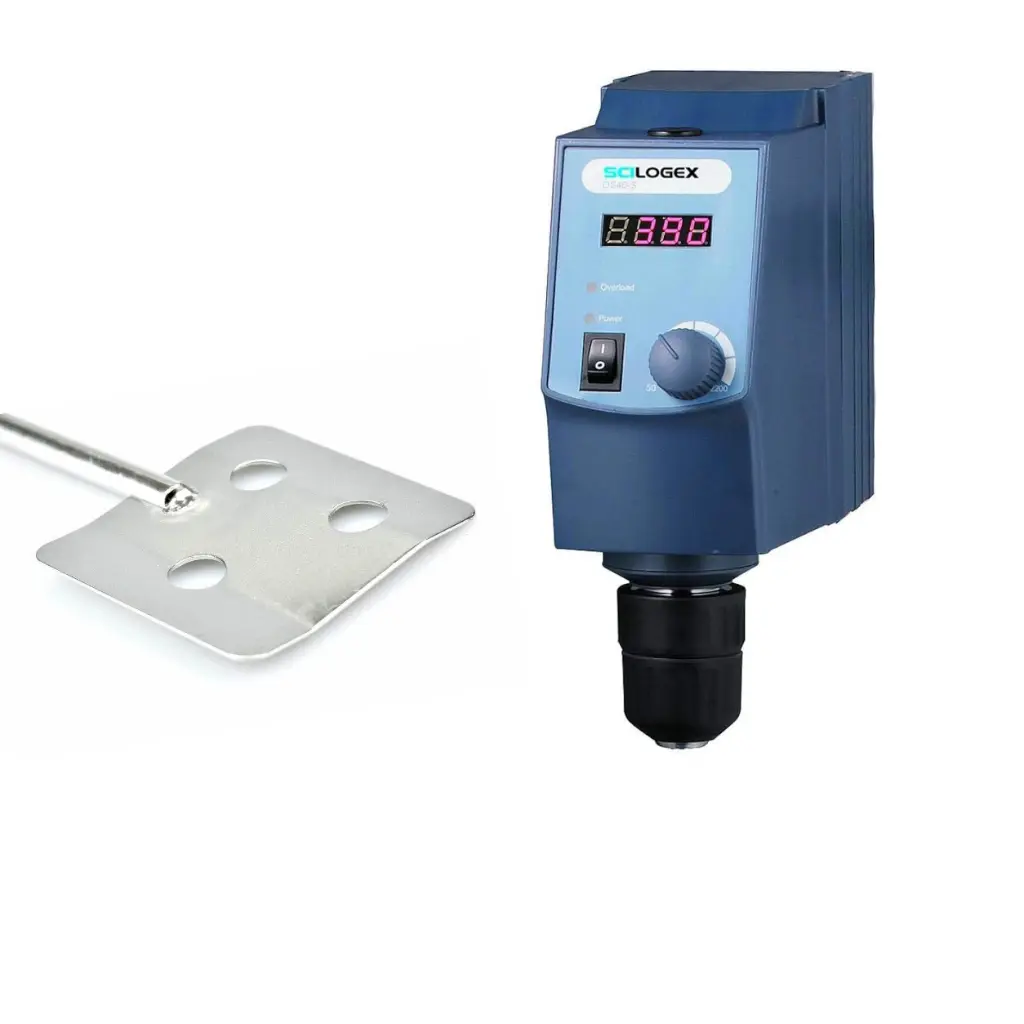

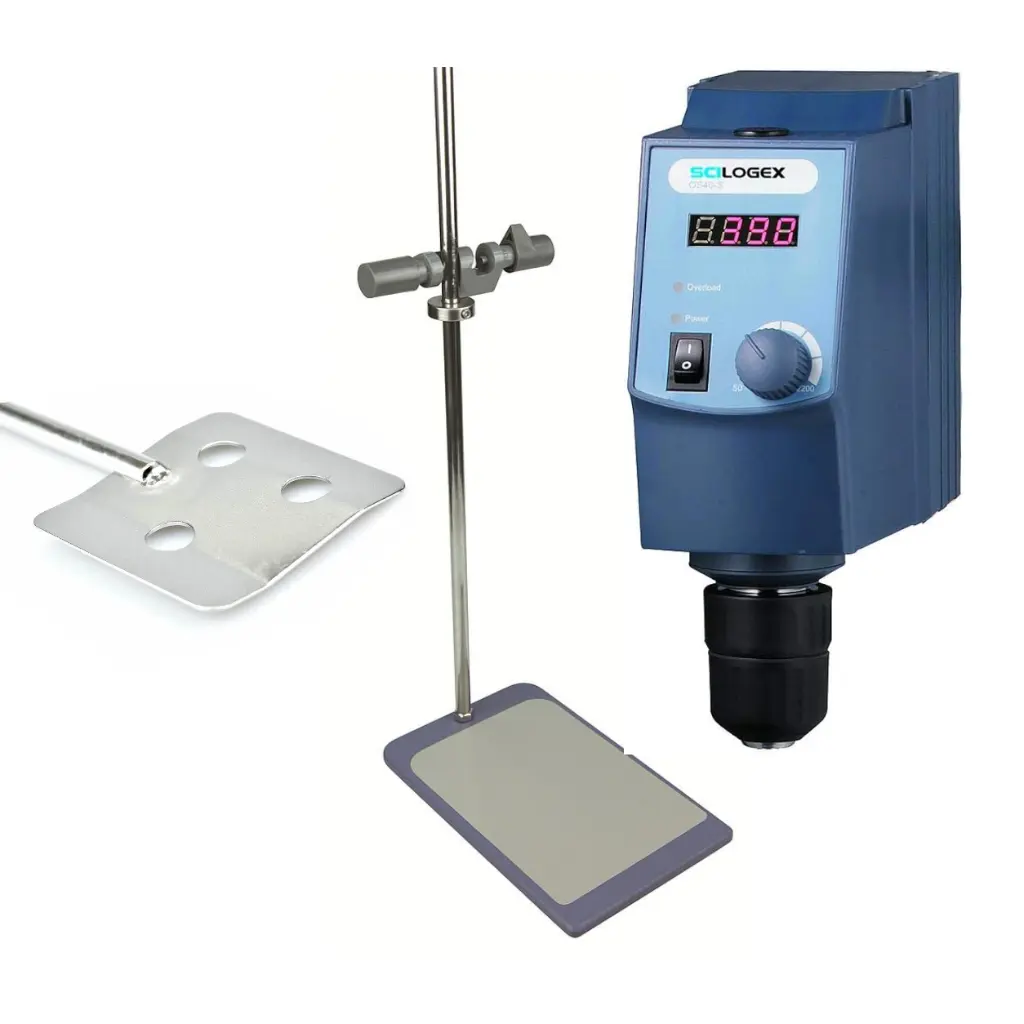

Paddle stirrer, 316L stainless steel. Shaft 400mm long x 8mm diameter. Impeller 67mm width x 67mm height.
Cat. No.:
18900073
Description:

Paddle stirrer, 316L stainless steel. Shaft 400mm long x 8mm diameter. Impeller 67mm width x 67mm height.

52.00

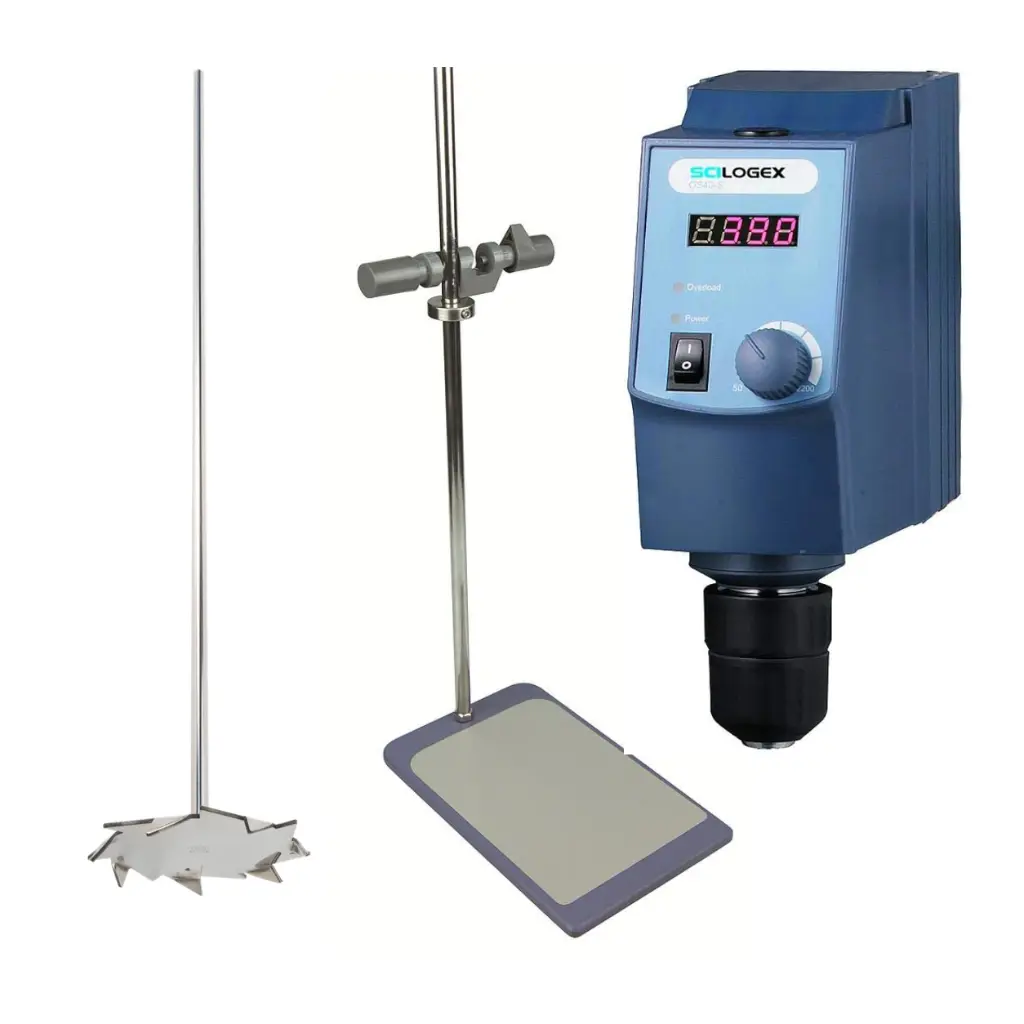

Centrifugal stirrer, 316L stainless steel. Shaft 400mm long x 8mm diameter. Impeller 90mm diameter.
Cat. No.:
18900074
Description:

Centrifugal stirrer, 316L stainless steel. Shaft 400mm long x 8mm diameter. Impeller 90mm diameter.

52.00

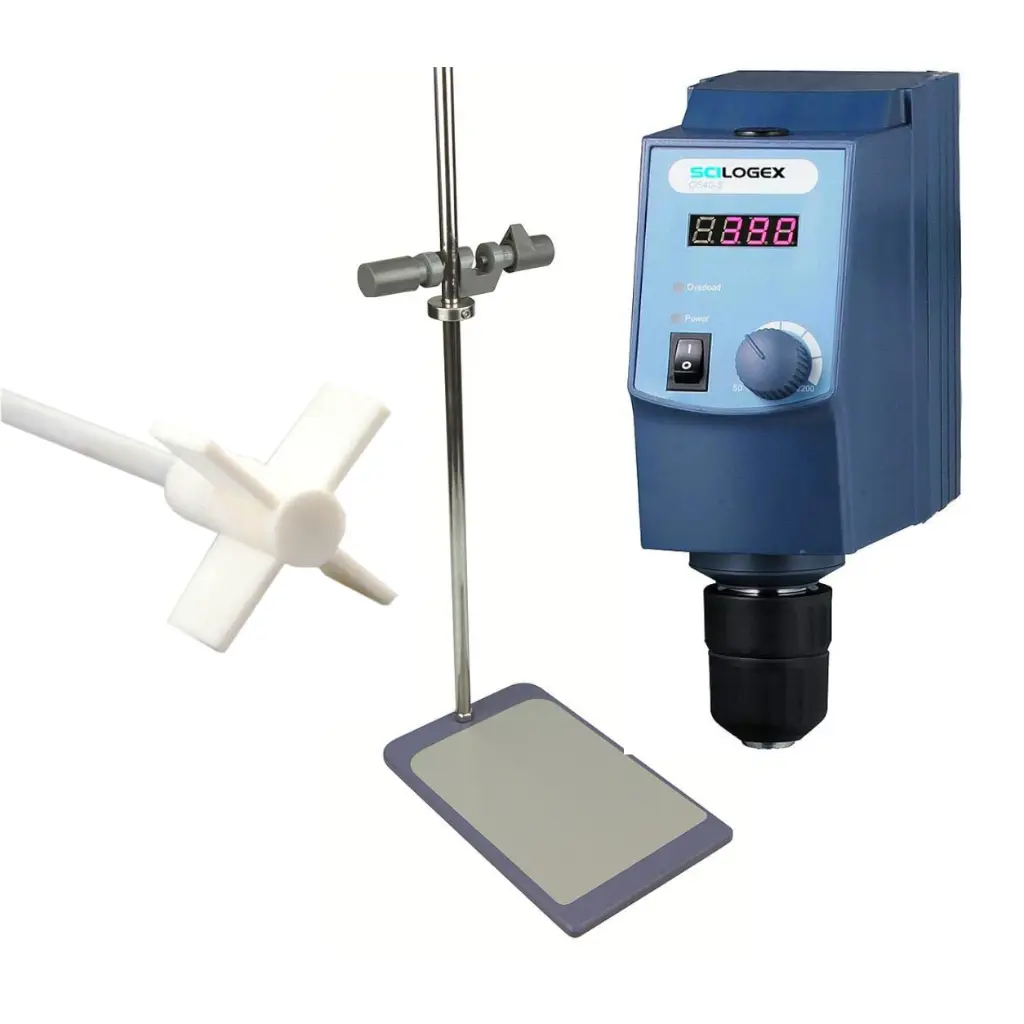

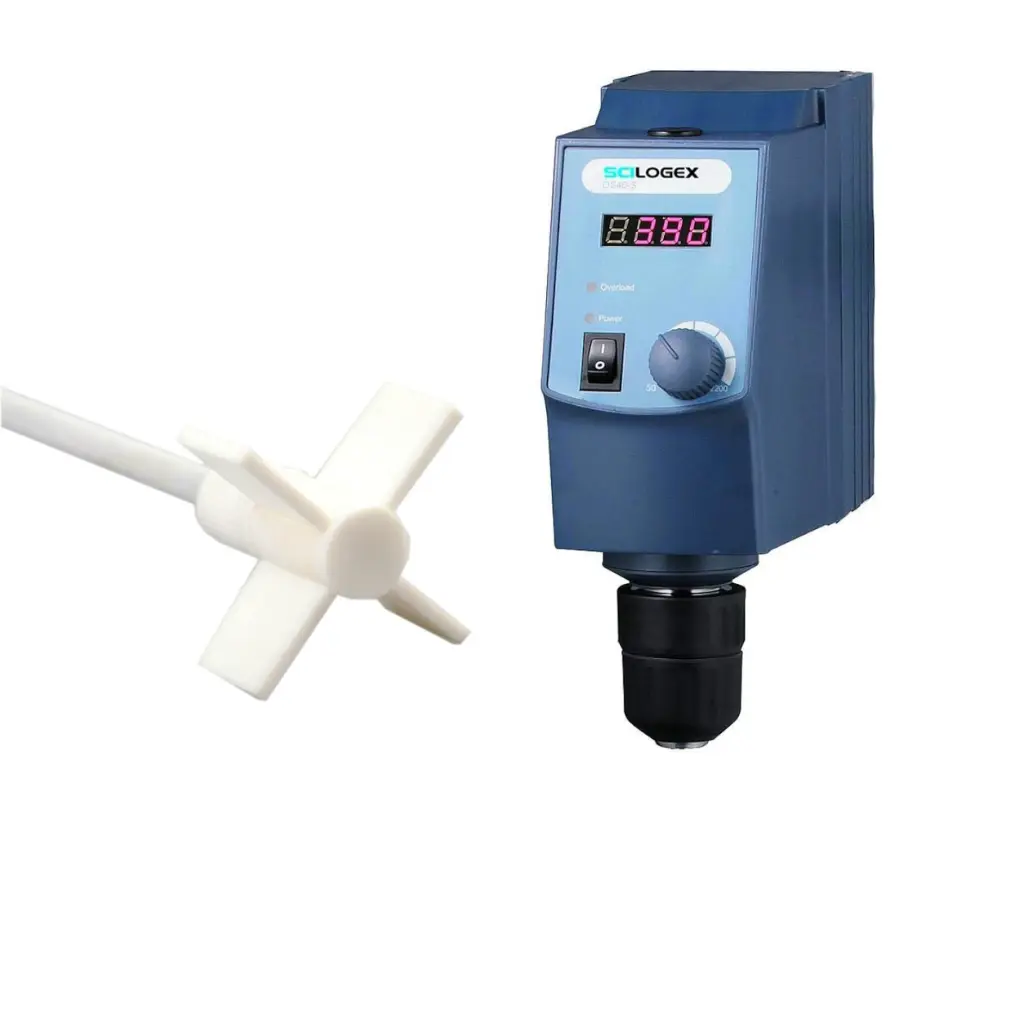

Cross stirrer, PTFE coated. Shaft 300mm long x 6mm diameter. Impeller 65mm diameter.
Cat. No.:
18900075
Description:

Cross stirrer, PTFE coated. Shaft 300mm long x 6mm diameter. Impeller 65mm diameter.

82.00

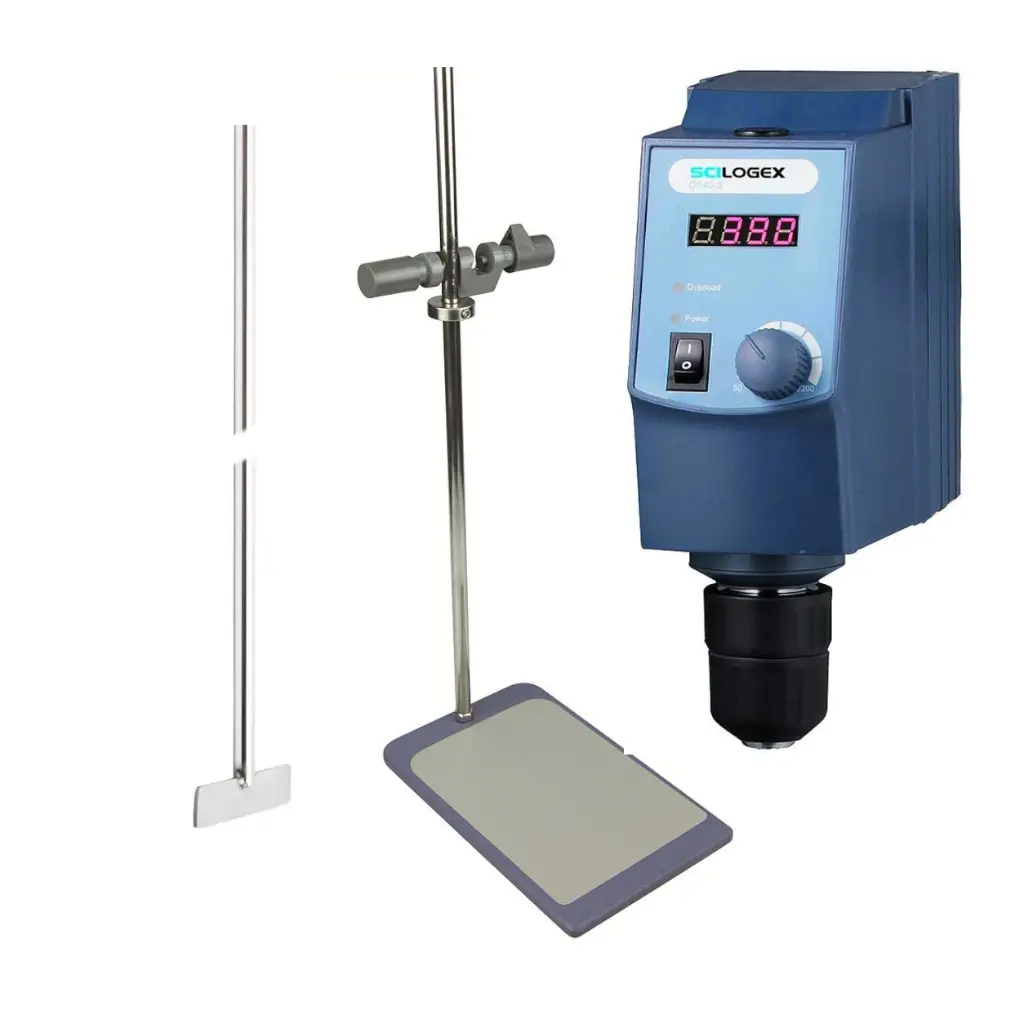

Straight stirrer, PTFE coated. Shaft 300mm long x 6mm diameter. Impeller 70mm diameter.
Cat. No.:
18900076
Description:

Straight stirrer, PTFE coated. Shaft 300mm long x 6mm diameter. Impeller 70mm diameter.

82.00

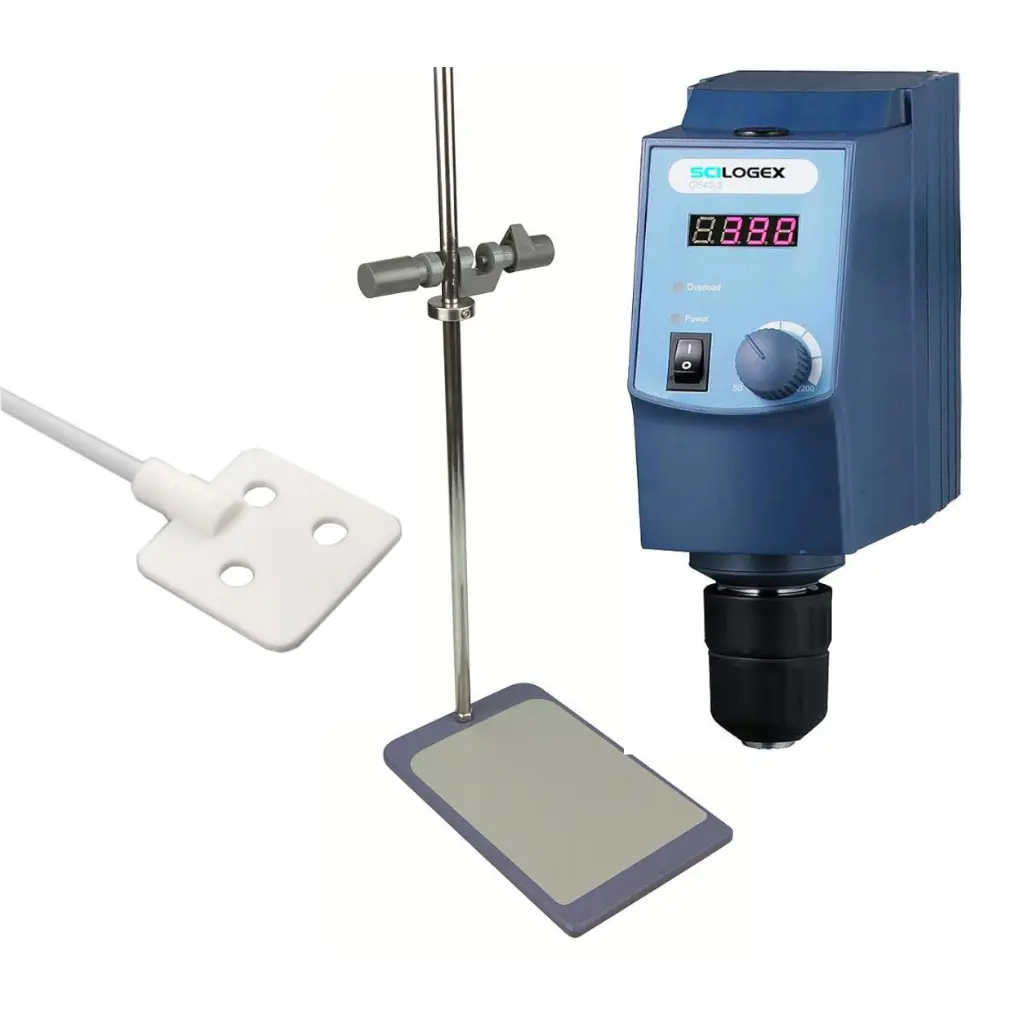

Paddle stirrer, PTFE coated. Shaft 300mm long x 6mm diameter. Impeller 67mm width x 67mm height.
Cat. No.:
18900077
Description:

Paddle stirrer, PTFE coated. Shaft 300mm long x 6mm diameter. Impeller 67mm width x 67mm height.

82.00
Centrifrugal stirrer, PTFE coated. Shaft 300mm long x 6mm diameter. Impeller 90mm diameter.
Cat. No.:
18900078
Description:

Centrifrugal stirrer, PTFE coated. Shaft 300mm long x 6mm diameter. Impeller 90mm diameter.

82.00

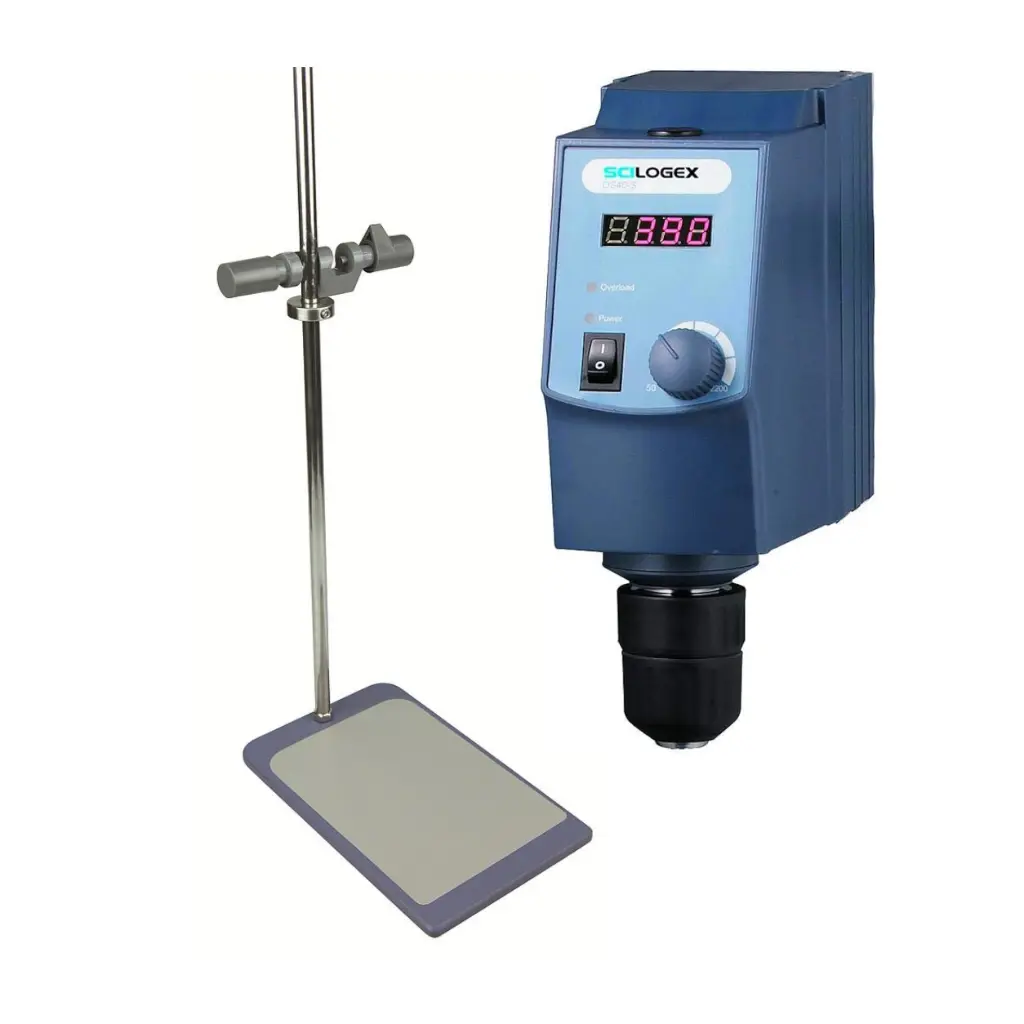

Plate stand with support rod and clamp. Plate size 12inches x 8inches. Rod length 26inches.
Cat. No.:
18900131
Description:

Plate stand with support rod and clamp. Plate size 12inches x 8inches. Rod length 31inches.

180.00
