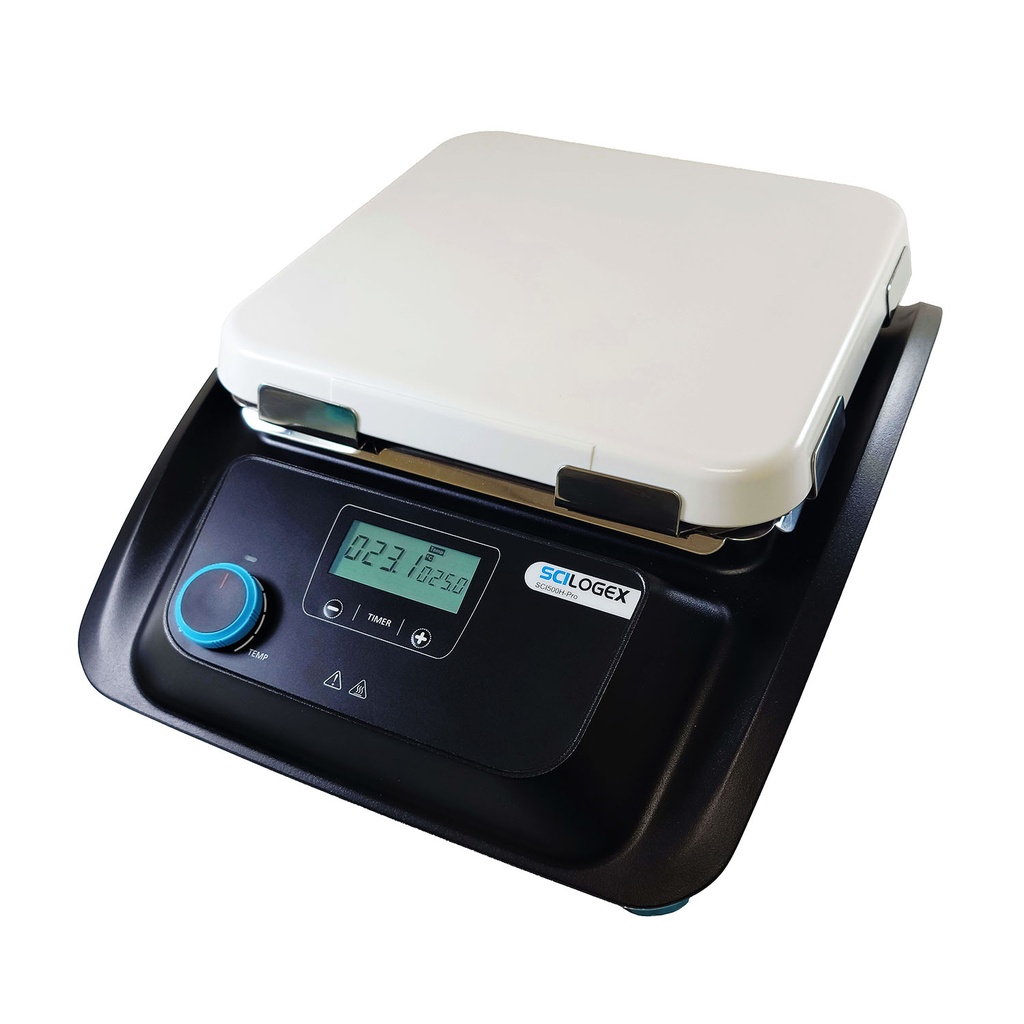

SCILOGEX SCI500H-Pro LCD Digital 10x10 Hotplate (500°C Max.)

Cat. No.
50311321159999
https://www.scilogex.com/web/image/product.template/1220/image_1920?unique=e9699e0

SCILOGEX SCI500H-Pro LCD Digital 10 x 10 Hotplate, ceramic-glass plate, 110V, 50/60Hz US Plug

804.00 804.0 USD 804.00 1,073.00

804.00 1,073.00

Currently Out-of-Stock

    This combination does not exist.

    Out of Stock
    Invalid email
    We'll notify you once the product is back in stock.



    For more information please call +1 (860) 436-9221 or email us at info@scilogex.com

    SCILOGEX SCI500H-Pro LCD Digital 10 x 10 Hotplate Features

    • LCD screen shows temperature, Max. temperature up to 500°C
    • 10-inch glass ceramic work plate provides excellent chemical-resistant performance and most efficient heat transfer
    • External temperature control is possible by connecting the temperature sensor (PT 1000) with an accuracy at ±0.2°C
    • The "Hot" warning will flash if the work plate temperature is above 50°C even when the hotplate is turned off
    • Heating temperature: room temperature ~500°C
    • The included SD Card can record the instrument's running data in real time.
    • Timing function: the heat time can be easily set.

    SCILOGEX SCI500H-Pro LCD Digital 10 x 10 Hotplate Specifications

    Work plate Dimension[WxD] 254x254mm(10 x 10inch)
    Work plate material Glass ceramic
    Heating Position 1
    Heating temperature range Room temp. to 500°C, increments 1°C
    Temperature control accuracy ±1°C(<100°C)±1%(>100°C)
    Safety temperature 540°C
    Temperature,Time display LCD
    Timer function 1min to 99h59min
    Temperature display accuracy ±0.1°C
    External temperature sensor PT1000 (±0.2°C)
    "Hot" warning 50°C
    Protection class IP21
    Power class 1400W
    Heating output 1350W
    Voltage Frequency 100-120/200-240V 50/60Hz
    Dimension[WxDxH] 328x424x138mm
    Weight 7.18kg
    Permissible Ambient temperature and humidity 5-40°C, 80%RH

    Additional Resources and Information

    Downloadable PDFs


    SCI500H-Pro Manual​
