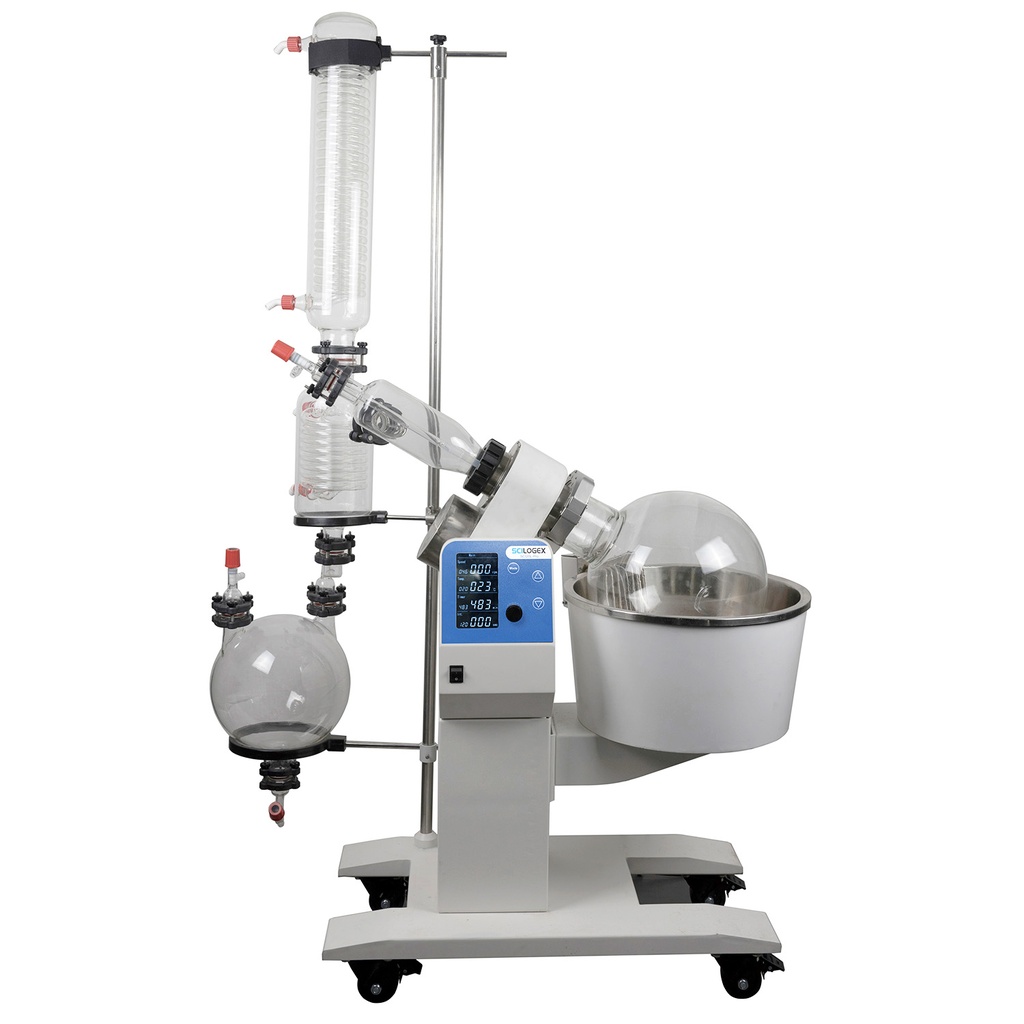

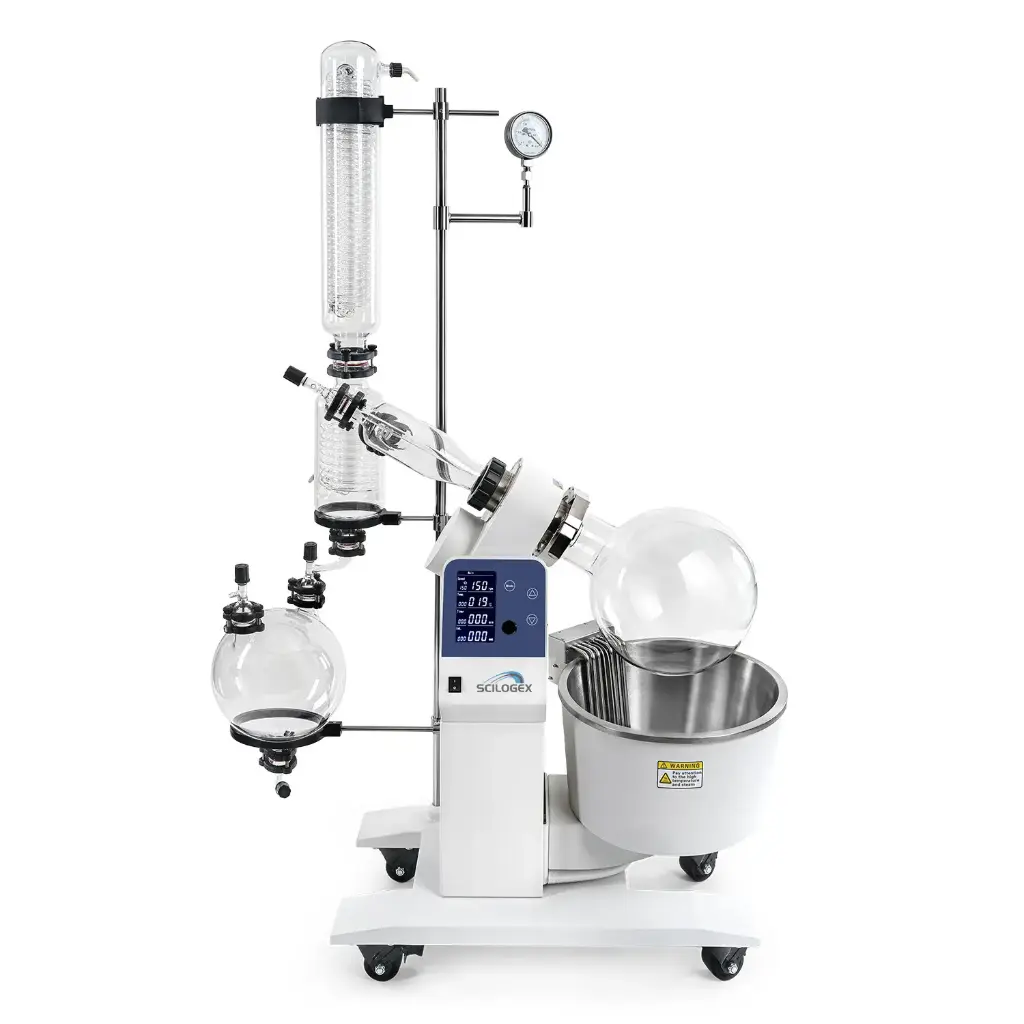

SCILOGEX SCI20L-Pro 20L Rotary Evaporator, Vertical Coiled Condenser, Motorized Lift

Cat. No.
60301121249999
https://www.scilogex.com/web/image/product.template/1205/image_1920?unique=1504c98

SCILOGEX SCI20L-Pro 20L Rotary Evaporator, Vertical Coiled Condenser, 20L evaporating flask and 10L receiving flask, 220-240V, 50/60Hz

9,420.00 9420.0 USD 9,420.00 12,560.00

9,420.00 12,560.00

Currently Out-of-Stock

    This combination does not exist.

    Out of Stock
    Invalid email
    We'll notify you once the product is back in stock.



    For more information please call +1 (860) 436-9221 or email us at info@scilogex.com

    Product Description

    The SCI20L-Pro is ideal for continuous distillation of many volatile solvents under reduced pressure. It offers an excellent distilling solution in a wide range of applications.

    Product Features

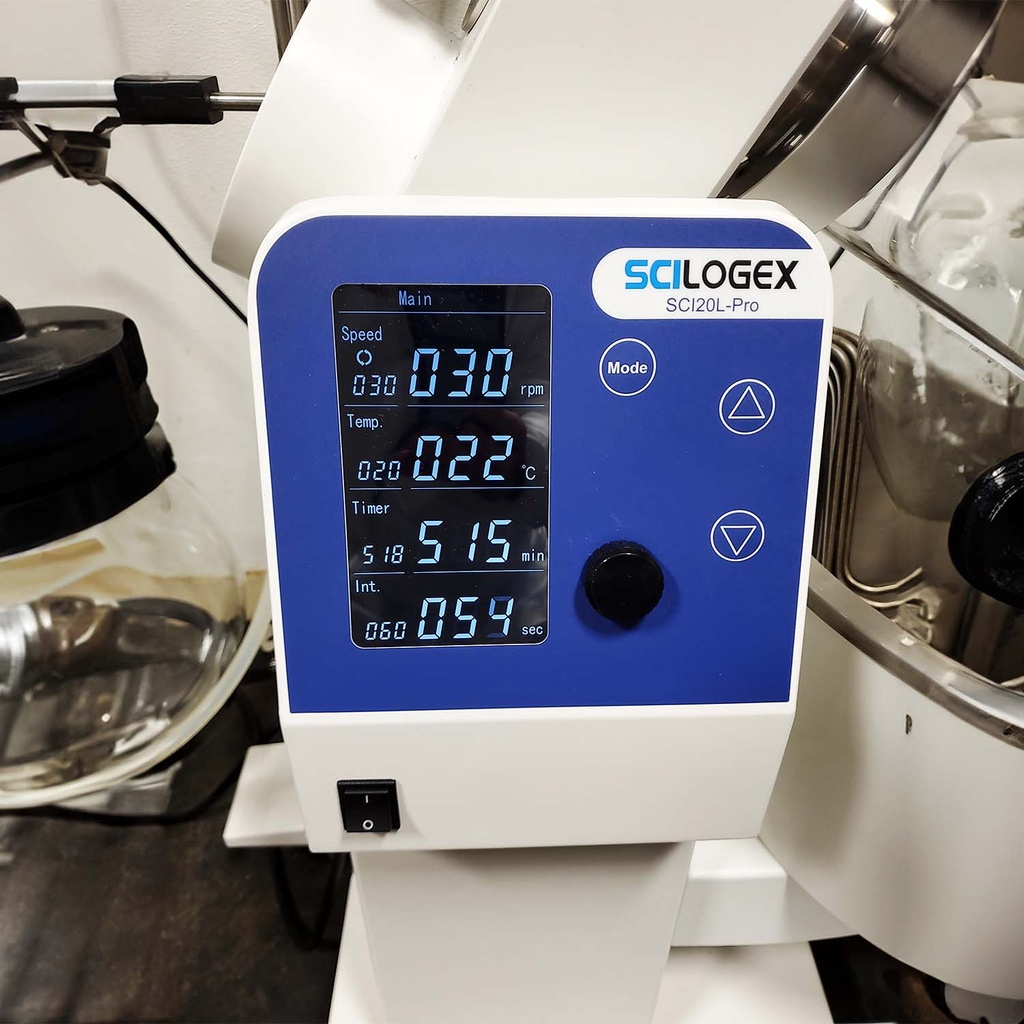

    • Large LCD digital display with heating temperature, rotation speed, clockwise, anti-clockwise and timer;
    • Simple automatic motorized lift (stroke 180mm), smooth and silent;
    • Water/oil heating bath with wide temperature range from room temperature range to max. 180°C;
    • Speed range from 10 to 150rpm, and interval operation in clockwise and anti-clockwise directions for drying process;
    • Double-layer high-efficiency condensing tube with large condensation area and strong evaporation capacity, ensuring efficient sample recovery;
    • Patented PTFE double sealing ring with excellent sealing performance.
    • Switching valve for continuous collection without compromising the system vacuum and solvent distillation.
    • Large LCD display
    • Overheating protection
    • Excellent chemical resistance
    • 2 YEAR WARRANTY

    Product Specifications

    Rotation Speed 10~150 rpm
    Display LCD (temperature/speed/clockwise and Anti-clockwise/time)
    Clockwise and Anti-clockwise Yes
    Temperature Range Room temp. to 180°C (both water and oil)
    Control Accuracy Water: ± 1°C Oil: ± 3°C
    Evaporation capacity Max. 4.0 L/h (water vapor volume)
    Stroke Displacement Automatic 180 mm
    Ultimate vacuum Less 2.6 hpa
    Dimension [DxWxH] 1160 mm × 600 mm× 1860 mm
    Temperature control method Micro processor PID control
    Safety features Motor over-current protection, Residual Current Device, lifting overload protection, Boil-dry protection, over-temperature protection
    Sample flask Round flask 20 L
    Receiving flask Round flask 10 L with drain valve
    Condenser Two-section vertical triple serpentine condenser, cooling surface 1.2 m2
    Heating bath size ϕ 450 × 240 mm
    Takeover caliber Cooling/suction nozzle outer diameter 16 mm, vacuum pump nozzle outer diameter 16 mm
    Power Supply 220 V/ 4600 W / 50/60 Hz 380 V/ 6000 W/ 50/60 Hz
