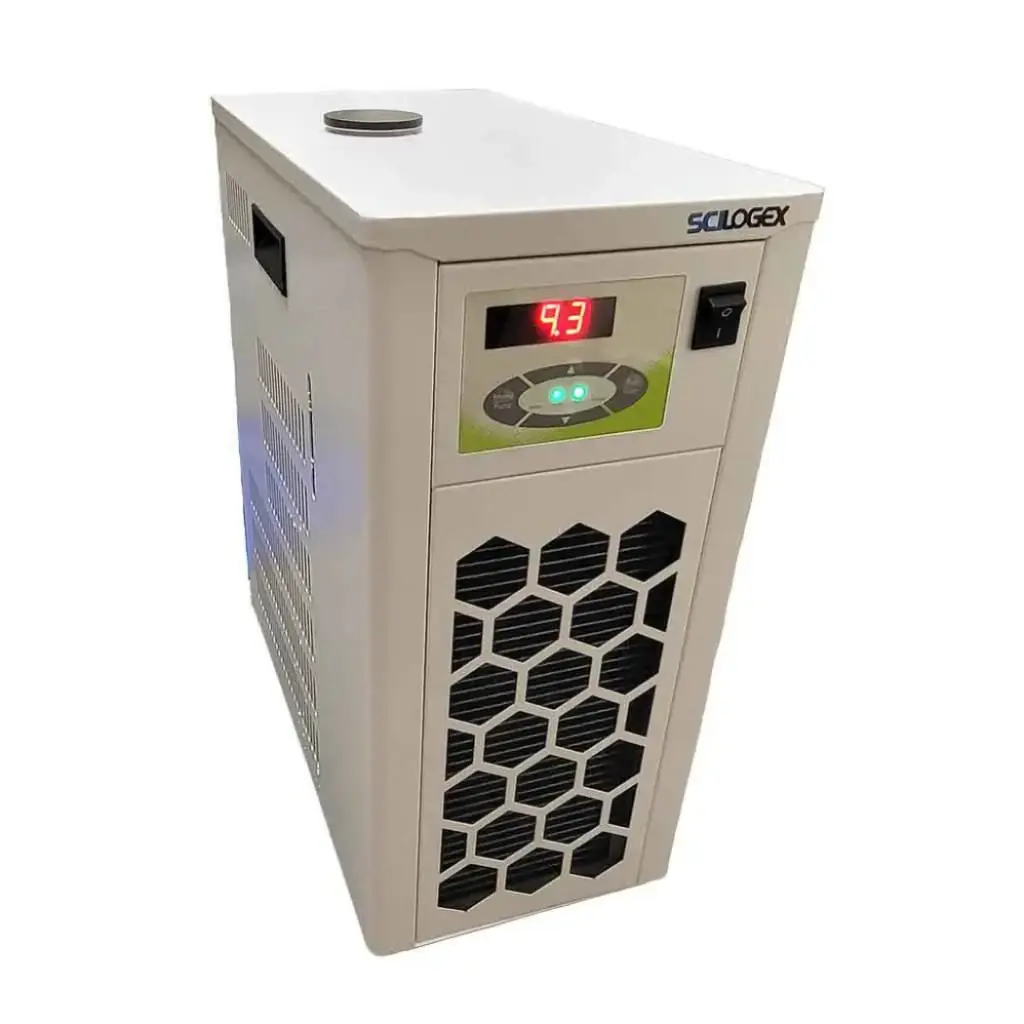

SCILOGEX SCIP5-Mini LED Recirculating Chiller, -20°C to ambient, 110V, 60Hz.

Cat. No.
60321002209
https://scilogex.odoo.com/web/image/product.template/1236/image_1920?unique=6fa74a0

SCILOGEX SCIP5-Mini LED Recirculating Chiller, -20°C to ambient, 110V, 60Hz.

2,503.00 2503.0 USD 2,503.00 3,337.00

2,503.00 3,337.00

Currently Out-of-Stock

    This combination does not exist.

    Out of Stock
    Invalid email
    We'll notify you once the product is back in stock.



    For more information please call +1 (860) 436-9221 or email us at info@scilogex.com


    SCILOGEX SCIP5-Mini LED Recirculating Chiller, -20°C to ambient, 110V, 60Hz.

    Features & Advantages:

    • Temperature range: -20C to room temperature
    • Employs PID temperature control with built-in PT1000 temperature sensor that provides high accuracy of temperature control
    • A crystal-clear LED display that switches between display of set temperature and that of actual temperature
    • The entire unit is capable of protection against short circuit, over-current, overload and delayed start

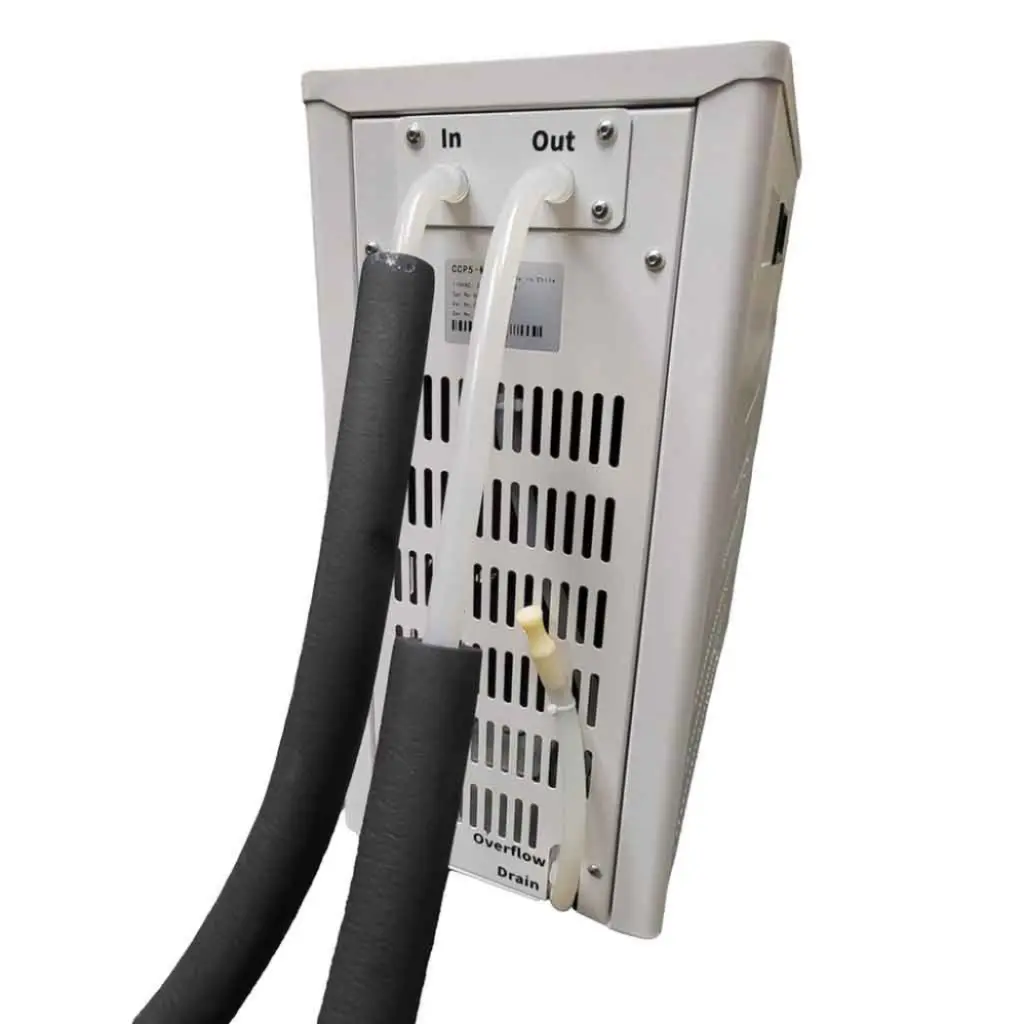

    • Integrated design of drain outlet and water outlet that allows easy drainage
    • The compressor employs state-of-the-art R290 environment-friendly refrigerant
    • The liquid pathway is made of stainless steel or high-quality corrosion-resistant material
    • User-friendly operating panel for easy operation
    • A large-volume open reservoir allows easy filling and supports cold trap experiments

    SCILOGEX LED Recirculating Chiller Specifications:

    Range of temperature control -20°C to Room Temperature
    Temperature adjustment accuracy 0.1°C
    Temperature control accuracy ±0.3°C (0°C a 20°C typical value)
    Reservoir capacity 4.5L
    Range of temperature adjustment -30°C։30°C
    Temperature display LED
    Type of temperature sensor PT1000
    Compressor refrigerant R290
    Circulating pump throughput 22L/min
    Circulating pump head 6m
    Pump pressure 0.3bar
    Pump suction 0.2bar
    Power 700W
    Maximum overall dimensions 220*420*495 (mm)
    Weight 30Kg
    Power supply 110V/60Hz
    Operating environment 10°C։4 0°C RH ≤ 80%

    Additional Information and Resources

    Downloadable PDFs


    SCIP5-Mini Recirculating Chiller Manual


    SCIP5-Mini Recirculating Chiller Brochure​


    Rotary Evaporator System Set-ups
