Yamato High Temperature Fine Oven

High temperature programmable fine oven with exhaust damper

This combination does not exist.

For more information please call +1 (860) 436-9221 or email us at [email protected]

Get the best price
for your organization today

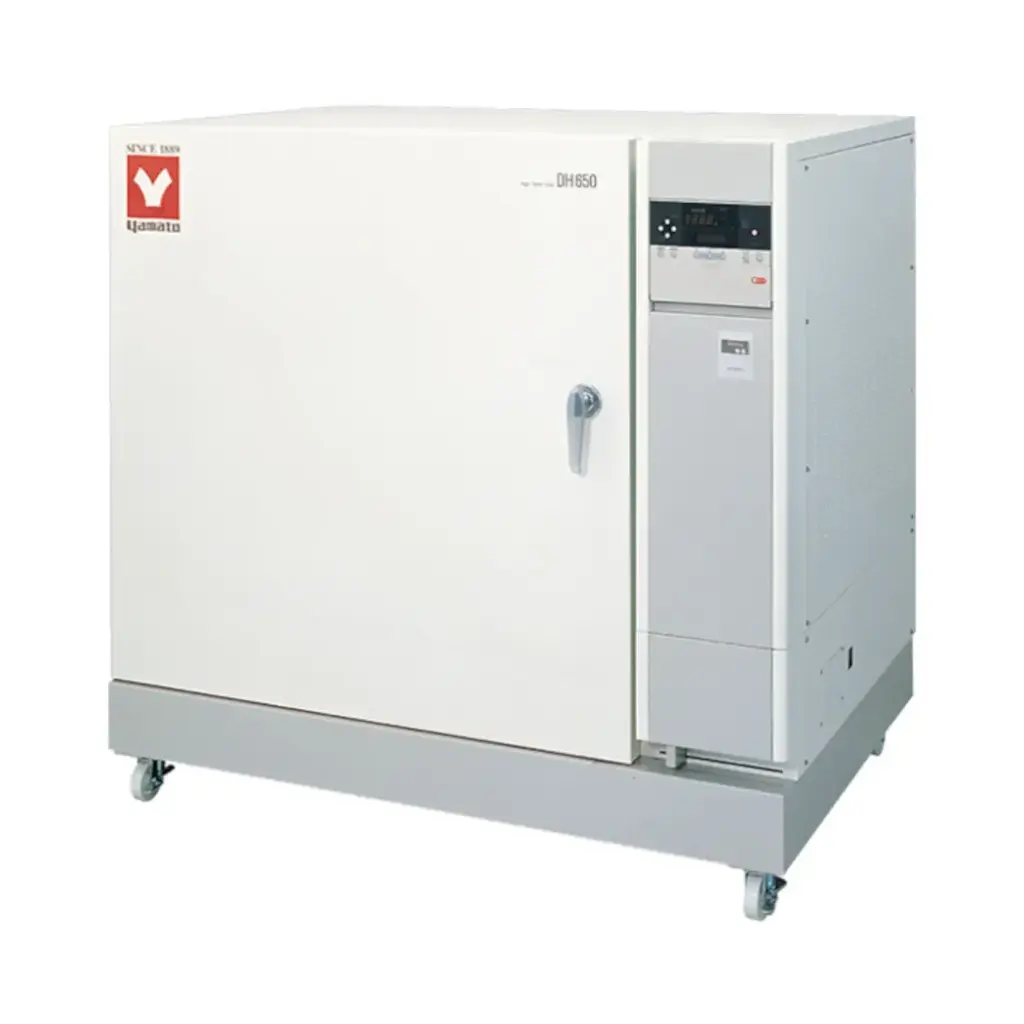

DH650

Maximum working temperature at 500°C
Exhaust damper allows quick exhaust and cooling of inside chamber
Equipped with a variety of operation functions such as an easy-to use program operation function, power consumption, power charge display and history storage
Operation function includes fixed temp., program, quick auto stop, auto stop and auto start operations
Equipped with a four-fold overheating prevention device (automatic overheating, heater chamber overheating, tank overheating, and temp. fuse) to ensure complete safety

40 years as a leading scientific lab equipment provider in the United States.

All products come with a 1 year warranty.

Every product is made through environmentally conscious methods and remains eco-friendly all throughout its life cycle.

Model	DH650

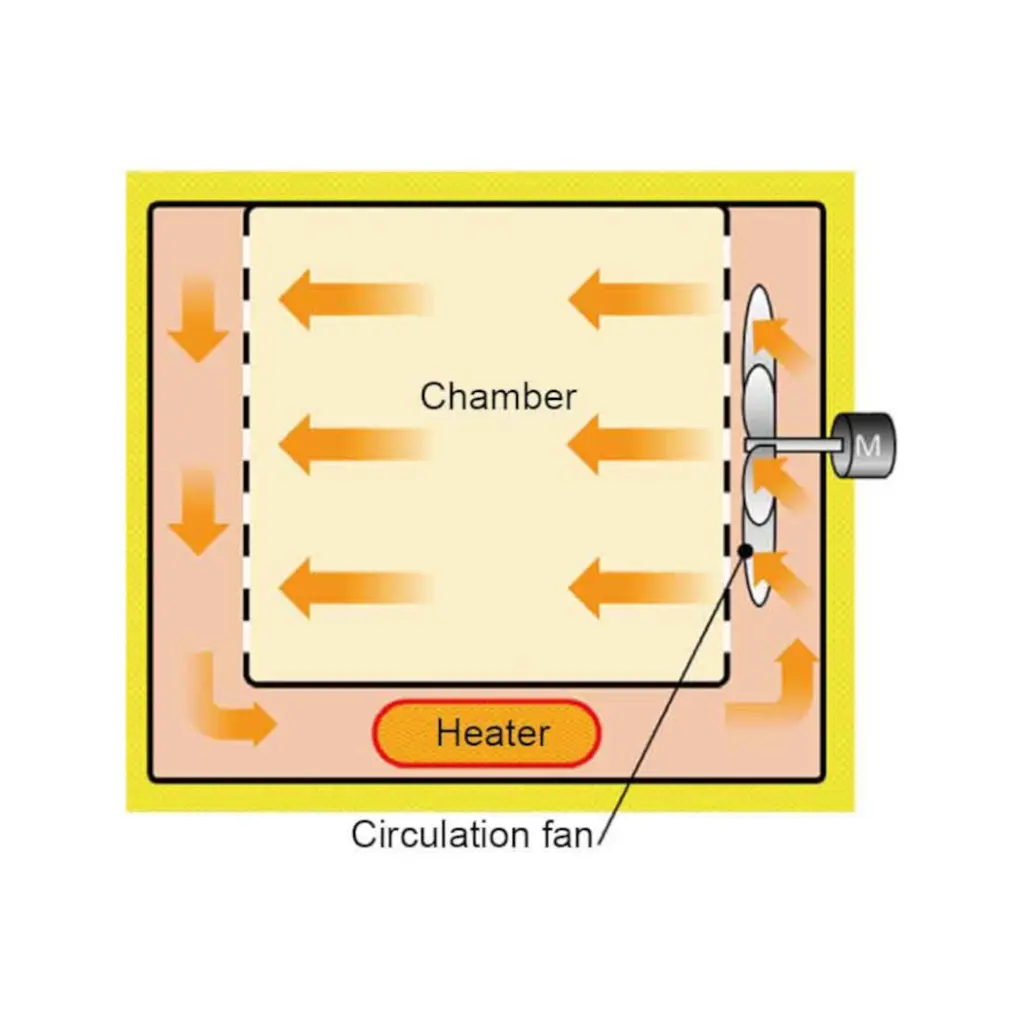

System	Forced convection circulation (with exhaust damper)
Operating temp. range	Room temp. +10~500°C
Temp. control precision*¹	± 0.3°C (at 360°C)
Temp. distribution precision*¹	± 3°C (at 360°C)
Max. temp. reaching time*¹	~60 min.
Temp. control system	PID control / SSR control with a microcomputer
Temp. setting / display method	Digital setting / digital display
Damper control	Manual circulation / ventilation operation
Safety functions	Over current ELB, overheat preventive device (in the bath, heater chamber), self-diagnostic function (temperature sensor error, heater disconnection, SSR short-circuit) Automatic overheat prevention (internal controller), temperature fuse, door switch
Additional functions	Key lock function, calibration offset function, external alarm output, temperature output, time-up output
Sensor	K thermocouple
Heater control	SSR-controlled
Heat insulator	Ceramic fiber, rock wool, heat insulating block
Heater	Wire heater: 200V 1.3 kW × 6
Fan motor	20W (capacitor)
Exhaust port	ø80mm (rear)
Internal dimensions	600×600×600 mm (W×D×H)

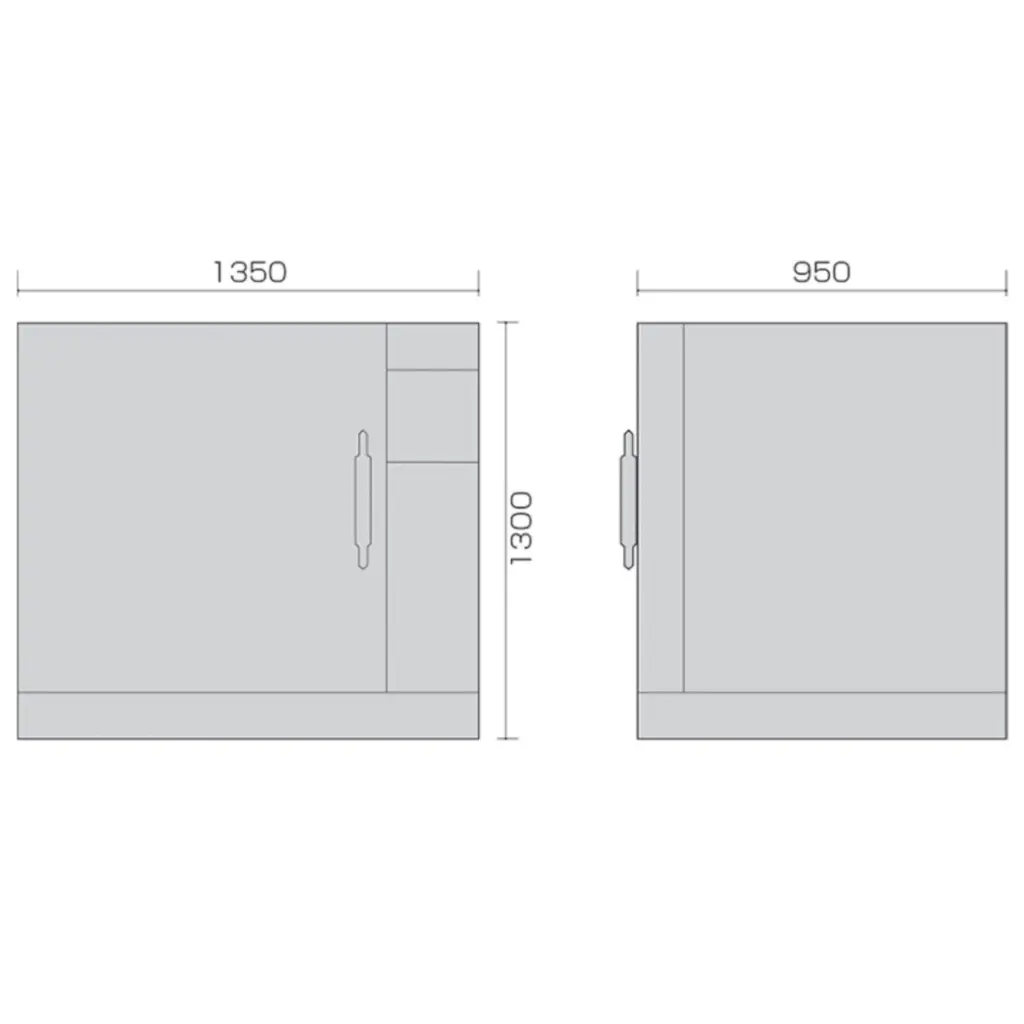

External dimensions*²	1350×950×1300 mm (W×D×H)
Internal capacity	216L
Shelf max. load	~30kg / pc.
Shelf support qty. / pitch	9 steps / 60mm
Power source 50/60 Hz	AC220V 20.5A 3 phase
Weight	~250 kg

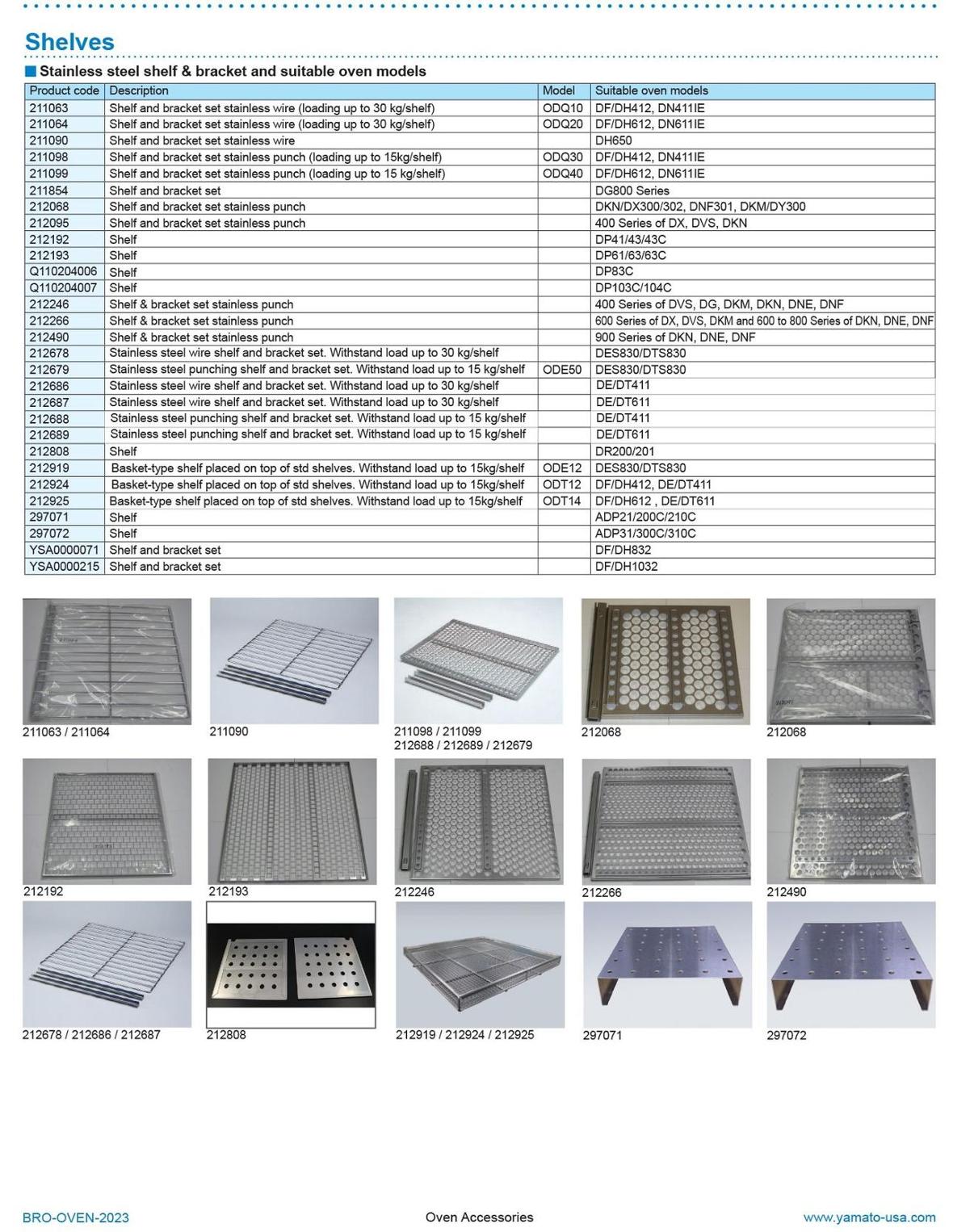

Included accessories	Shelf and brackets
Shelf / bracket	3 pcs / 6 pcs

*¹ Values shall be at room temperature of 23°C, power voltage of 200V, and no sample load
*² Protrusions excluded

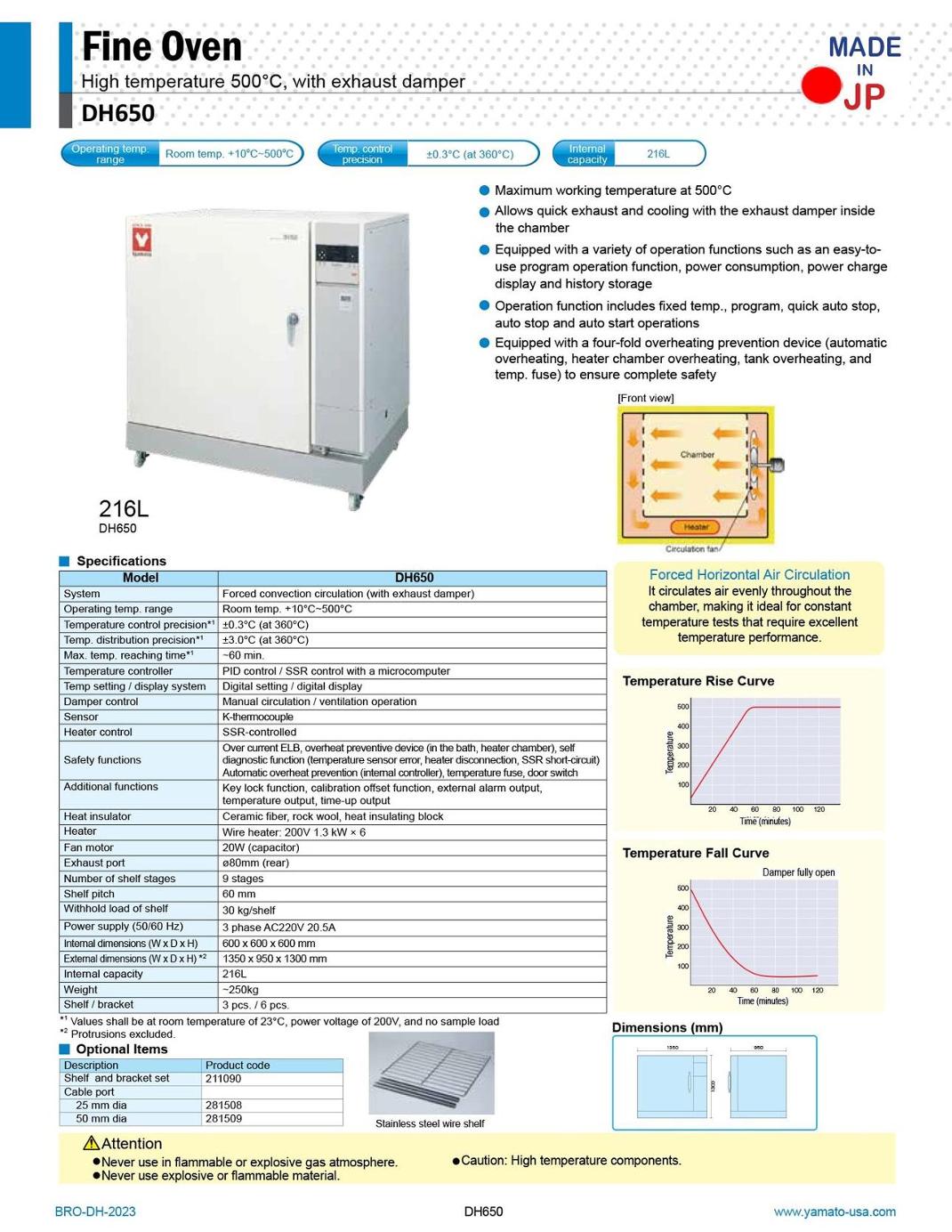

Click on the links below to download the associated PDFs.
