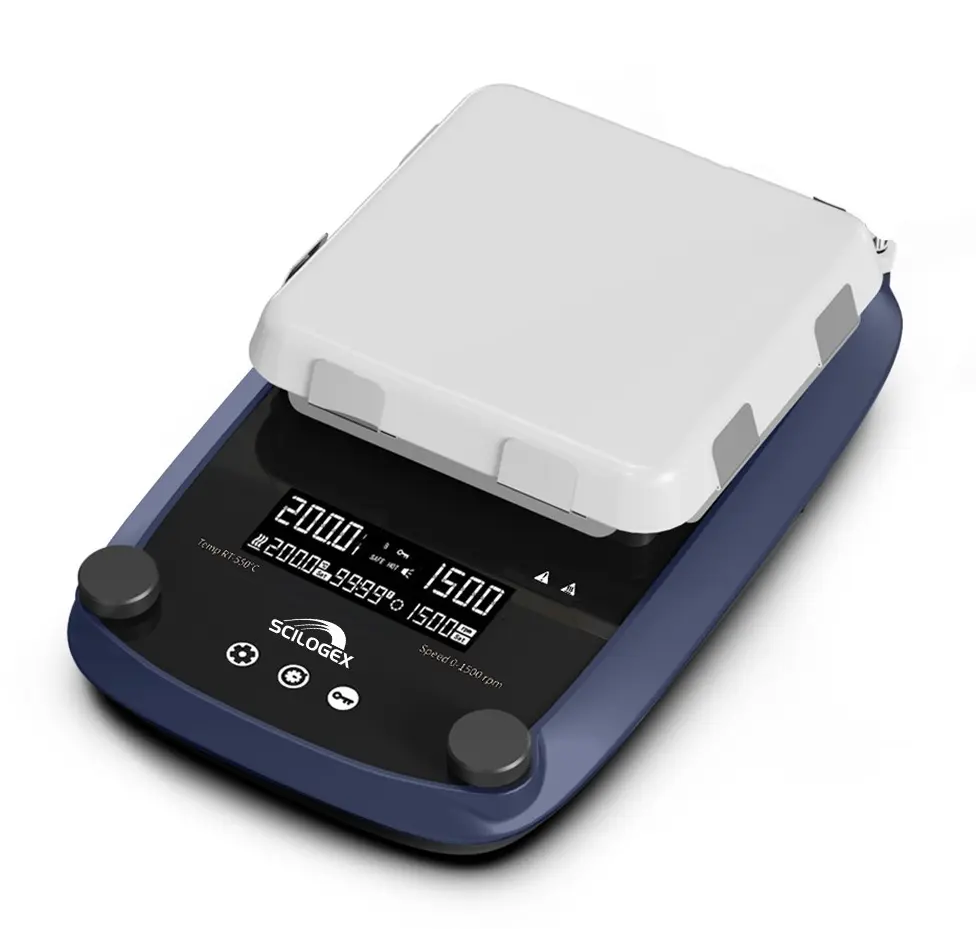

SCILOGEX SCI7-550HSM LCD Digital 7 x 7 in. Magnetic Hotplate Stirrer, ceramic-glass plate, with Timer & Strong Magnet, 110V, 50/60Hz US Plug

Cat. No.
80104822119999
https://www.scilogex.com/web/image/product.template/6548/image_1920?unique=769c4ab
Square LCD Digital Range: 7-Inch Magnetic Hotplate Stirrer & Timer with Strong Magnet - Hotplate - Magnetic Stirrer

1,275.00 1,275.00 In stock
Please contact us for availability Usually ships in 4 weeks

1,275.00

Currently Out-of-Stock

This combination does not exist.

Please contact us for availability
Get the best price
for your organization today

Features

  • Ceramic-glass plate is extremely corrosion-resistant, resistant to strong acids and alkalis, and high temperatures, making it easy to clean.
  • The corrosion-resistant all-metal housing provides good heat dissipation and heat protection.
  • High-efficiency infusion platform and waterproof edge design prevents liquid from entering the interior.
  • Strong magnetic magnet suitable for viscous liquid stirring.
  • Selectable heating modes are divided into: A - rapid heating mode, B - standard heating mode, C - stable heating mode.
  • Safety locks to prevent accidental changes in operating conditions.
  • Alarm function: The timer function counts down to the set-point and will emit an audible sound.
  • Residual heat warning sign, when the plate temperature is higher than 50 ℃.
  • Over temperature PT1000 sensor monitoring turns off heating if sensor is accidentally misplaced from the sample.
  • The LCD displays the set temperature and set speed and real-time temperature and speed.
  • Timing function, timing range 1min-99h59min.
  • RS232 for remote control, providing PC control and data transmission with free software.
  • Selectable over-temperature safety setting.
Specifications SCI7-550HSM
Working plate size184x184mm (7 inch)
Plate MaterialGlass Ceramic
Motor typeBrushless DC motor
Stirring positions1
Maximum stirring volume [H2O]20L
Maximum stirrer size [length]80mm
Speed range and step50~1500rpm, increment 1rpm
Speed DisplayLCD
Temperature displayLCD
Heating temperature rangeRoom temp-550°C, increment 1°C
Temperature control accuracy of heating liquid±1°C(<100°C)±1%(>100°C)
overheating protection580°C
Temperature display accuracy0.1°C
External temperature sensorPT1000 (accuracy ±0.2°C)
Waste heat warning function50°C
Data connectionRS232
Protection classIP21
Timer function1min-99h59min
Motor output power50W
Power1200W
Heating output power1150W
Voltage, Frequency100-120/200-240V, 50/60Hz
Dimensions [L x W x H]360x230x110mm
Weight4.3kg
Permissible ambient temperature and humidity5-40°C, 80%RH

Additional Resources and Information

Downloadable PDFs

NEW SCILOGEX Hotplate-Stirrers

New SCILOGEX Hotplates with new Sensor Safety Countermeasures

New SCILOGEX Hotplates & Stirrers operating manual

SCILOGEX Magnetic Stirrers Software Operating Instructions

Magnetic Stirrer Control Software V2.0.0 Portable Version

Magnetic Stirrer Control Software V2.0.0 Installation Package
