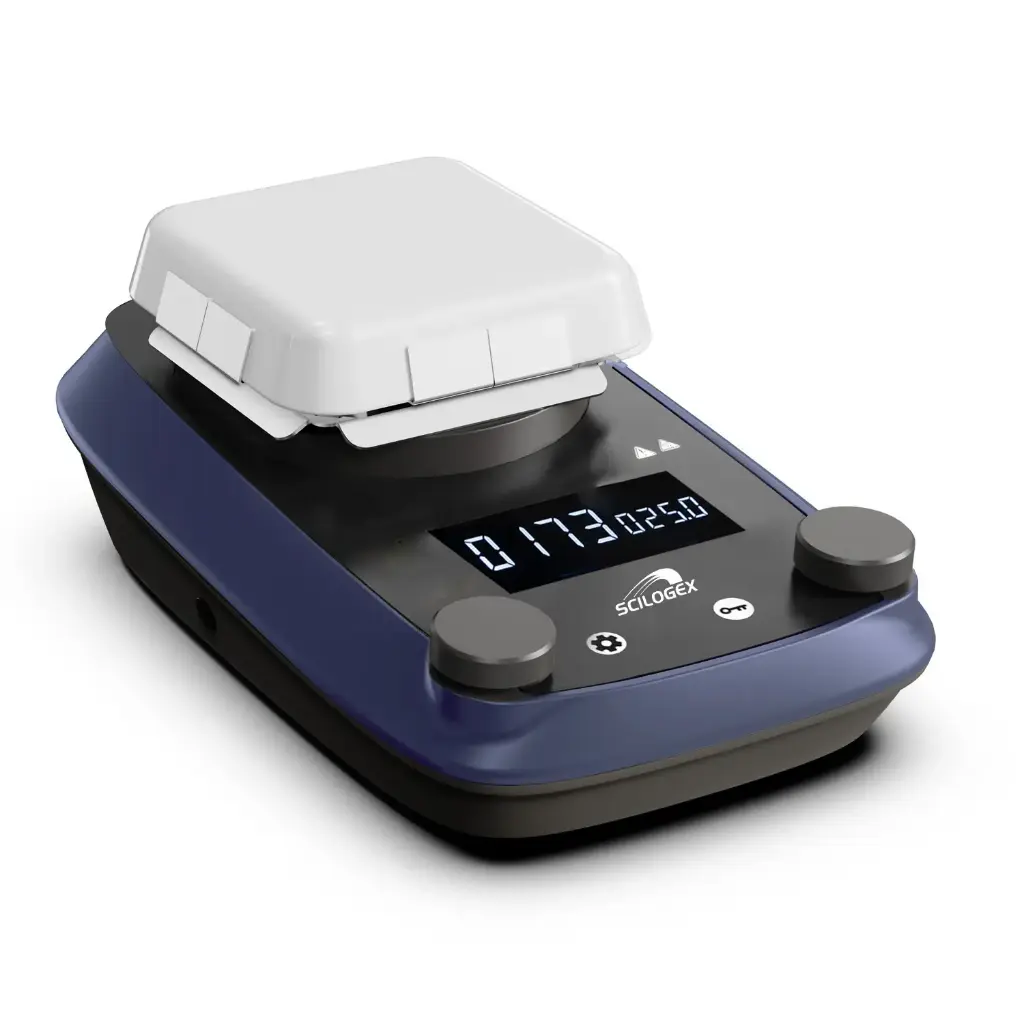

SCILOGEX SCI-4ST LCD Digital 4 x 4 in. Magnetic Stirrer, ceramic-glass plate, wit Timer, 110V, 50/60Hz US Plug

Cat. No.
8021512211
https://www.scilogex.com/web/image/product.template/6546/image_1920?unique=5276080
Square LCD Digital Range: 4-Inch Magnetic Hotplate Stirrer & Timer - Hotplate - Magnetic Stirrer

625.00 625.00 In stock
Please contact us for availability Usually ships in 4 weeks

625.00

Currently Out-of-Stock

This combination does not exist.

Please contact us for availability

Features

  • Ceramic discs are extremely corrosion-resistant, resistant to strong acids and alkalis, and high temperatures, making it easy to clean accidental drips of solvents, oils, or other contaminants.
  • The corrosion-resistant all-metal housing provides good heat dissipation and reliable fire protection.
  • High-efficiency infusion platform and waterproof edge design prevents liquid from entering the interior of the machine and corroding electronic components.
  • Selected high-temperature resistant strong magnetic magnet, strong stirring, suitable for viscous liquid stirring.
  • Heating modes are divided into: A rapid heating mode, B standard heating mode, C stable heating mode, to meet different customer needs.
  • Safety locks to prevent accidental changes in operating conditions.
  • Buzzer: When the machine malfunctions, or the timer function counts down to the end of the buzzer will emit a "drip drip drip" sound.
  • Residual heat warning function, when the disc temperature is higher than 50 ℃, turn off the heating, the screen will have a "HOT" flashing prompt, even if the power off, the display is still "HOT" flashing to remind the high temperature.
  • Two independent safety circuits are designed to continuously monitor the equipment. When
  • overheating occurs, the sensor fails, the machine reports an error and stops heating, and when the line is short-circuited, the machine automatically cuts off the power supply to protect the operator's safety.
  • DC brushless motor, no spark, long life; low noise, maintenance-free, smooth running.
  • The LCD displays the set and real-time values of speed, time and temperature in an intuitive and clear manner.
  • Timing function, timing range 1min-99h59min, countdown to the end of the stop heating, will not stop stirring, so as not to heat damage to the sample.
  • Remote control function with PC connection.
  • Safety temperature can be set.
Specifications SCI-4ST
Working plate size100x100mm (4 inch)
Plate MaterialGlass Ceramic
Motor typeBrushless DC motor
Stirring positions1
Maximum stirring volume [H2O]10L
Maximum stirrer size [length]40mm
Speed range and step50~1500rpm, step 1rpm
Speed DisplayLCD
Data connectionRS232
Protection classIP21
Timer function1min-99h59min
Motor output power10W
Power30W
Voltage,Frequency100-240V, 50/60Hz
Dimensions [L x W x H]270x175x108mm
Weight1.8kg
Permissible ambient temperature and humidity5-40°C, 80%RH
