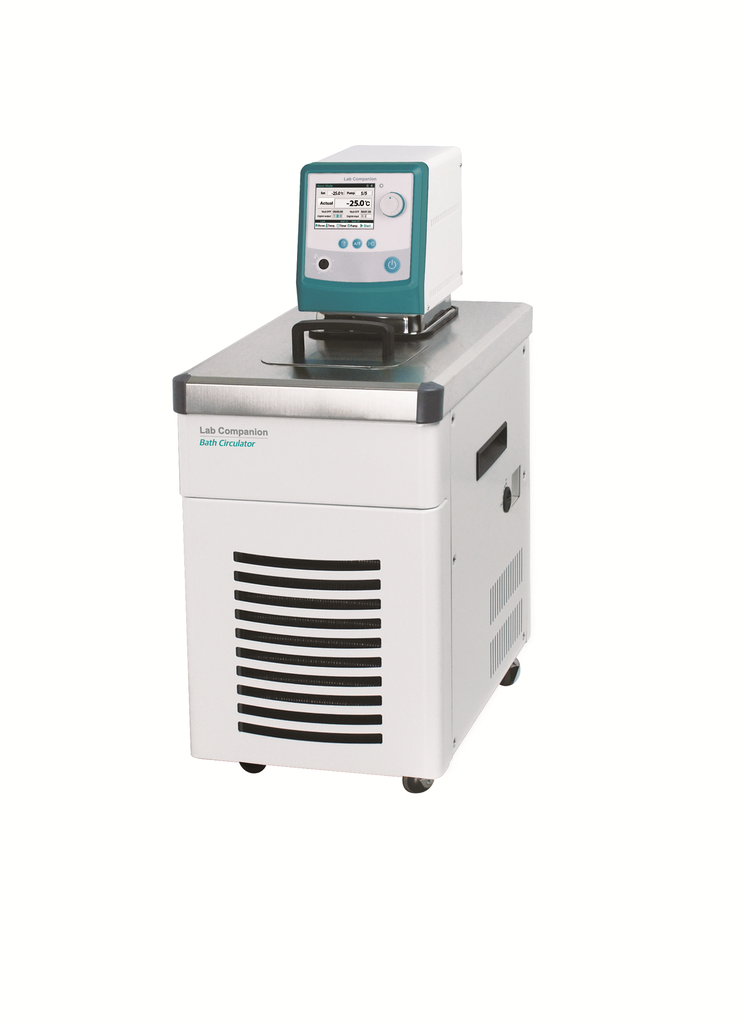

RW3-1025P 10L Programmable Refrigerated/Heated Circulating Bath, -25°C to 150°C

Program Type

• Possible to set and save 10 programs.
• Up to 10 steps can be set per program.
• Set time up to 99 hours and 59 minutes per step.
• Includes useful scheduler management functions such as program operation range and repeat interval setting.
• Program repetition possible up to 99 times.
• Provides temperature ramp control in program operation.
• Digital Input / Output function makes it easy to connect external equipment.
• Intuitive operation with color touch display.

Structural Functional Features

• Internal circulation and internal/external circulation of solution.
• Built-in bath cover with handle.
• Internal bath with seamless integral structure.
  (except RW3-3025P, 3035P models)
• Stainless steel material inside and at the top of the bath is excellent in terms of corrosion resistance and clean maintenance.
• Drain valve for easy draining of bath solution.
• Easy-to-clean refrigerator condenser filter.
• Equipped with easy-to-move/install caster.
• 8 models provided according to temperature range, capacity, etc.
• 5-steps pump speed adjustment with simple operation.

Outstanding Safety

• Top-rated overheating protection system.
  (Registration KR 10-0397583)
• Over temperature limiting function.
  (Over Temperature Limiter)
• Prevention of mal-operation with controller lock function.
• Check and alert of temperature sensor abnormality.
• If an error occurs during operation, the details of the error are displayed on the screen and an alarm is sounded.
• Safe structure in which the heater, sensor, and pump inside the bath are separated by covering plates.

Use Convenience Features

• Temperature calibration of up to 3 points provides more reliable temperature control.
• Optimized control with auto-tuning.
• Wait On/Off timer. (up to 99 hours 59 minutes)
• Microprocessor PID method for precise temperature control.
• USB/RS-232 connection and software provide convenient computer operation and data management.
• Notification of low solution. (low level limiter)
• Automatic restart of operation when power is restored after power failure.
• Monitor via mobile app anytime, anywhere with LC Connected. (mobile monitoring system)
  (when purchased LC GreenBox)

Specification

• Bath volume (L / cu ft): 10 / 0.4 (Bath volume (L / cu ft) 10 / 0.4)
• Temperature:
  • Working temp. range (℃ / ℉): -25 to 150 / -13 to 302
  • Temp. stability1): 0.05 / 0.09
  • Cooling capacity:
    • at +20℃ (+68℉), W: 380
    • at 0℃ (+32℉), W: 270
    • at -20℃ (-4℉), W: 150
• Dimension:
  • Bath opening / depth (W x L, D) (mm / inch): 211 x 154 x 180 / 8.3 x 6.1 x 7.1
  • Exterior (W x L x H) (mm / inch): 366 x 532 x 780 / 14.4 x 20.9 x 30.7
• Net weight (kg / lbs): 44 / 97
• Electrical requirements (120V, 60Hz, A): 12.6
