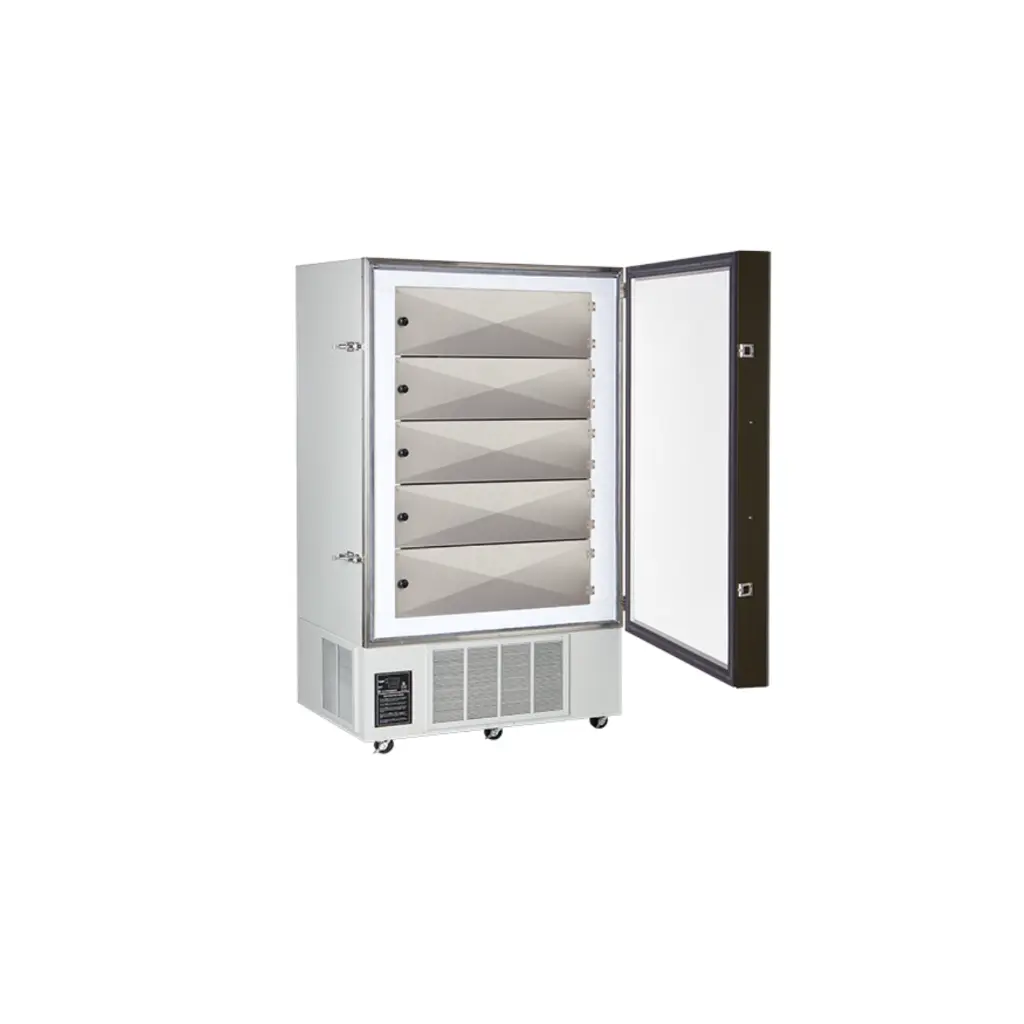

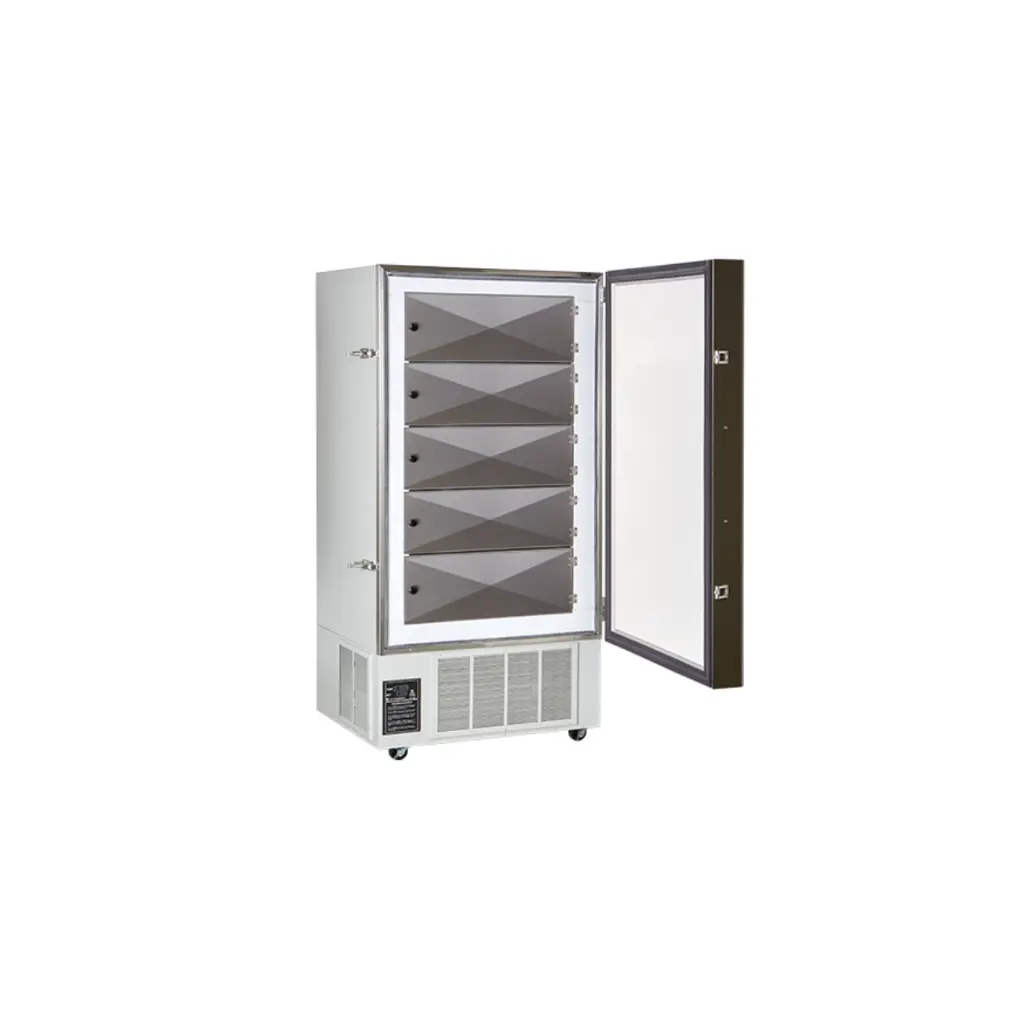

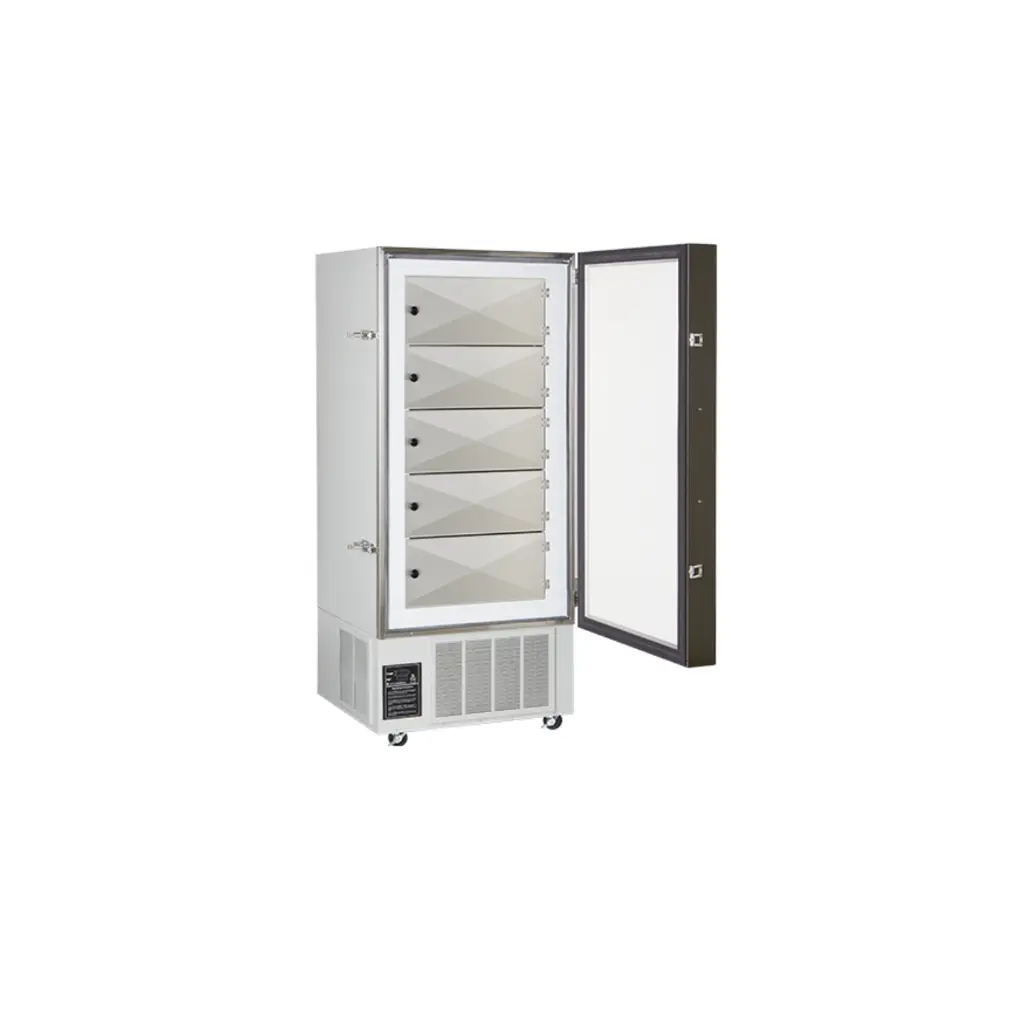

Low-Temp LTF Series Vertical (Upright) Freezers

0˚C to -40˚C

Model
- [797059930111] LTF401U
- [797059930128] LTF501U
- [797059930135] LTF601U
- [797059930142] LTF701U
- [797059930159] LTF901U

This combination does not exist.

For more information please call +1 (860) 436-9221 or email us at [email protected]

Downloads:

LTF Series Low Temperature Freezers

Looking for a Low-Temp Chest Freezer?

COMMON SPECIFICATIONS OF VERTICAL (UPRIGHT STYLE) MODELS

Model	LTF Series
Temperature range	0°C ~ -40°C / +32 ~ -40°F
Temperature control system	Digital Control with two temperature displays. One display shows the set temperature, the other shows the actual temperature in the freezer.
Digital alarm system with relay	Battery operated alarm system will emit an audible and visual signal when there is a mechanical or electrical failure. The alarm has an over and under temperature setting, alarm silencing switch, and battery test switch. Also provided is a relay for remote alarm hook-up.
Refrigeration system	Single stage system with one hermetic compressor. CFC & HCFC free refrigerants
Construction	Chamber is 14-ga. zinc coated galvanized steel. Exterior is 16-ga. steel. Powder coated cool gray finish.
Electrical requirements	115V, 60 Hz, 1 phase 208V, 60 Hz, 1 phase 230V, 60 Hz, 1 phase 220V, 50 Hz, 1 phase 220V, 60 Hz, 1 phase
Optional accessories	Chart recorder, CO² and LN² back-up system, Racks, Cold safety gloves

UNIQUE SPECIFICATIONS OF VERTICAL (UPRIGHT STYLE) MODELS

Model	Capacity	Rack Capacity	Shelving	Internal Dimensions	External Dimensions
LTF401U	370L / 13 cu. ft.	15	4 adjustable (5 compartments)	20” x 22” x 51.25 50 x 55 x 130 cm	35" x 34.5" x 79.5" 88 x 87 x 201 cm
LTF501U	505L / 18 cu. ft.	20	4 adjustable (5 compartments)	23” x 26” x 51.25” 58 x 66 x 130	40" x 36" x 79.5" 101 x 91 x 201 cm
LTF601U	626L / 22 cu. ft.	25	4 adjustable (5 compartments)	28.5” x 26” x 51.25” 72 x 66 x 130 cm	43" x 37" x 79.5" 109 x 93 x 201 cm
LTF701U	710L / 25 cu. ft.	30	4 adjustable (5 compartments)	34” x 25” x 51.25” 86 x 63 x 130 cm	50" x 37" x 79.5" 127 x 93 x 201 cm
LTF901U	792L / 28 cu. ft.	30	4 adjustable (5 compartments)	38” x 25” x 51.25” 96 x 63 x 130	54" x 37" x 79.5" 137 x 93 x 201

Downloads

LTF Series Low Temperature Freezers
