Type 2 & 3 Three-Stage Lab Water Purification System
Building a new lab? Let us take some work off your shoulders
We can help make your job a little less challenging.
Tell us:
- What analytical instruments you're setting up.
- What volume of ultrapure water you need for each.
We'll build you a quote that will make it easier to manage your budget when setting up the lab and running it for the next 10 years.
Stop wasting budget on brand loyalty.
Ultrapure water is ultrapure water. The big 5 manufacturers of lab water purification systems:
- Don't give you better quality 18.MΩ.cm water.
- Don't integrate with your processes better.
- Don't give you better support.
- Don't provide unique customization options.
But they DO mark up the purchase price of their lab water purification systems and filter cartridges quite well.
Your Yamato lab water purification system does everything the systems you're familiar with do. But at a fraction of the cost of ownership and cost per liter of type 1 water.

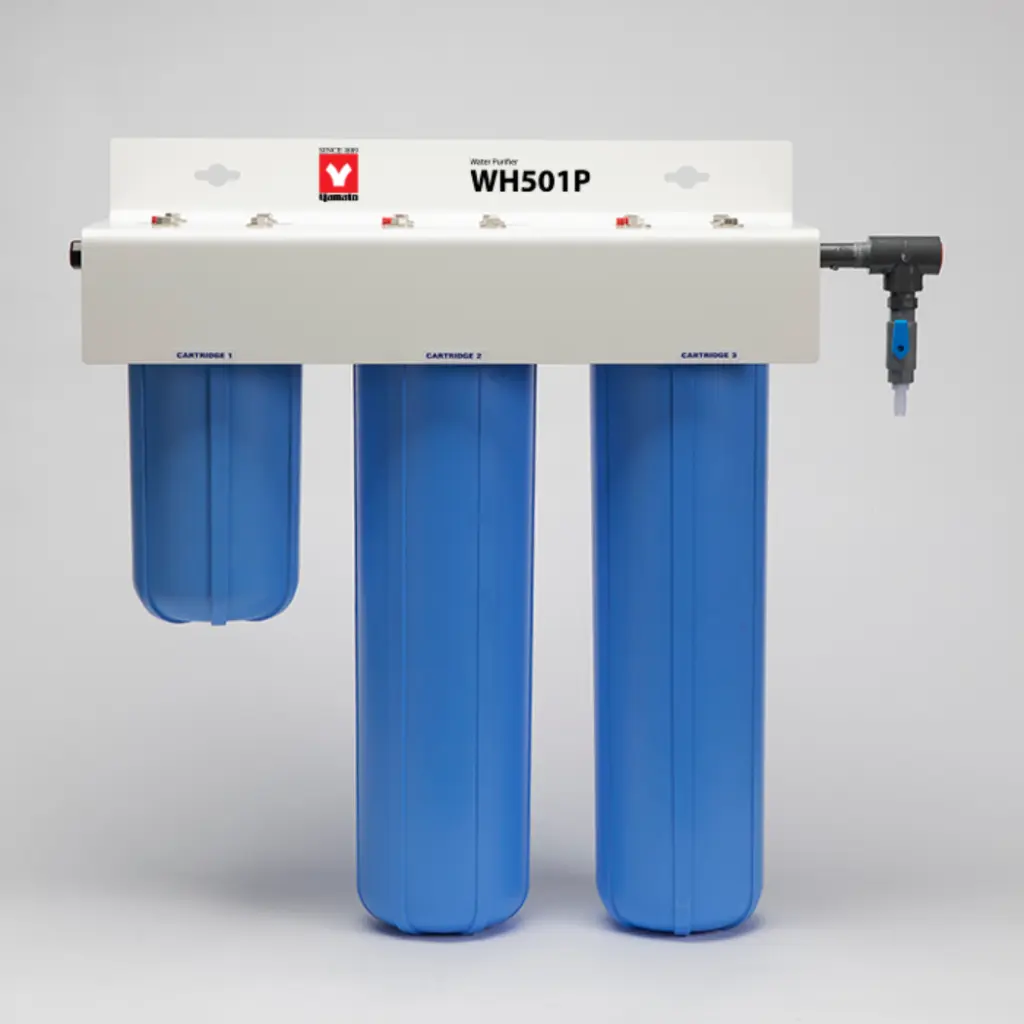

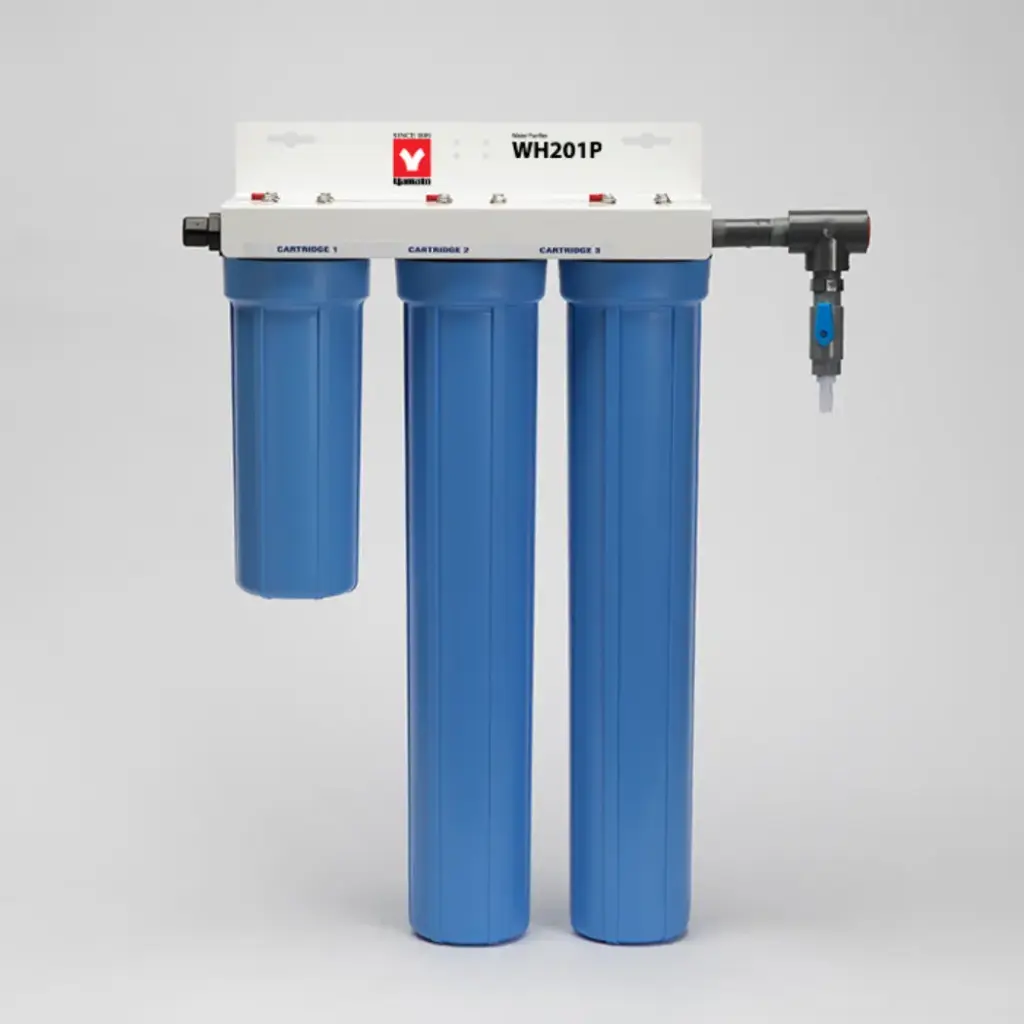

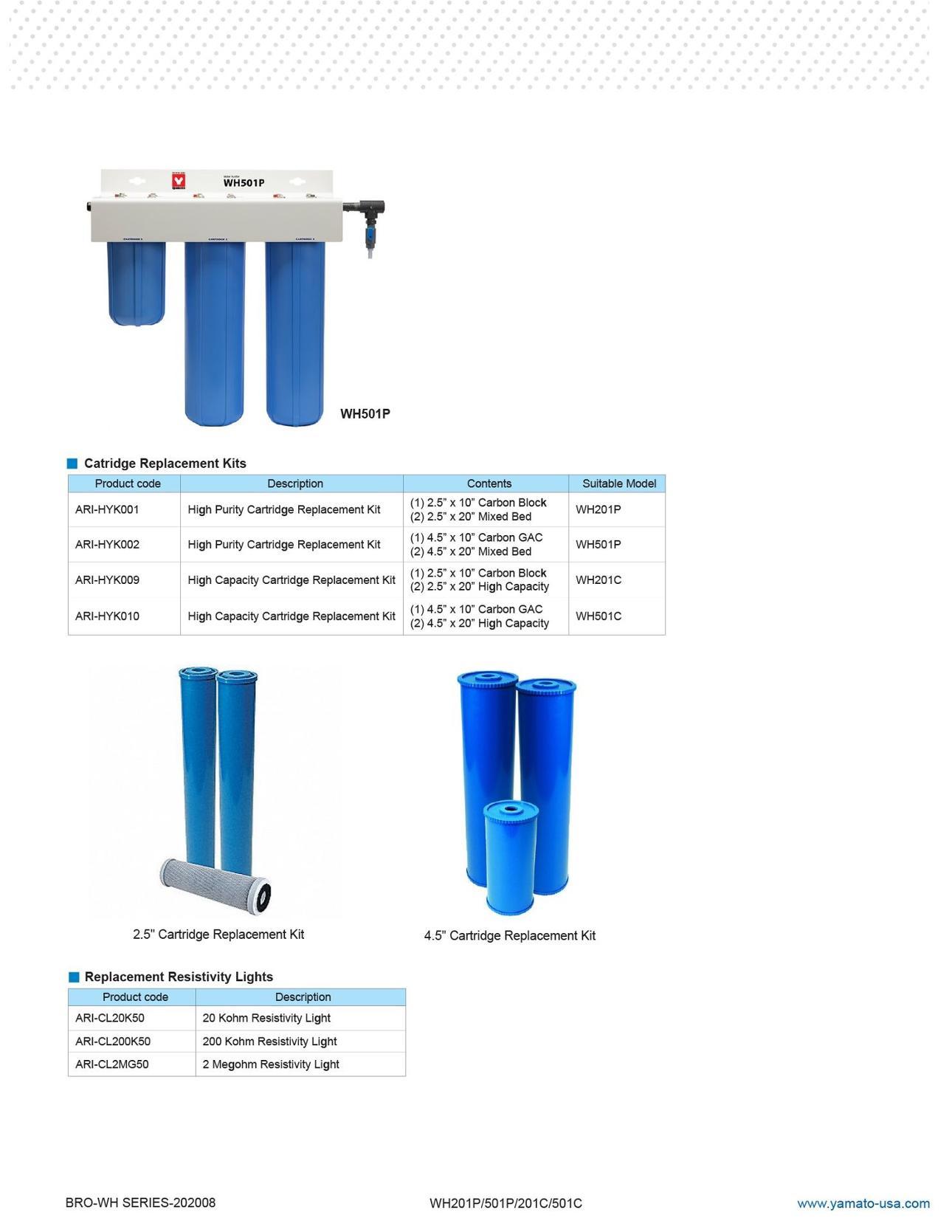

WH Series: WH201P / 501P / 201C / 501C
Features
- Turn-key system for low cost – on demand service
- Resistivity light included for visual indication of cartridge replacement
- Available in high purity and high capacity configurations
- Available in 2-1/2″ and 4/1/2″ diameter configurations
- Outlet isolation valve, spanner wrench and associated tubing provided
- Economically produces DI water
Application
- High purity models: WH201P and WH501P: use low odor mixed bed cartridges for applications requiring better than 10 MΩ water quality
General deionization, battery water filling, humidification, hydrogen generator, glassware rinse, glassware washer, sterilizers - High capacity models WH201C and WH501C: provide water quality better than 50 kΩ, for less corrosive applications, ideal for scale reduction and non-stainless steel piping systems
Environmental chambers, sterilizers, ultrasonic cleaners, chiller loops
3 Stage Process
- Stage 1
Removes particles greater than 5 micron, chlorine, and organics - Stages 2 & 3
Deionizers designed to remove dissolved minerals
Lab Water Purifiers
Solutions are sensitive to contaminants, so any imbalance in the mixture invalidates the results of your experiment. Impure water contains contaminants that pose risks. As a result, water should undergo a purification process to reach a certain level of purity. Our lab water purification systems here at Yamato can help you produce ASTM Type I water, Type II water, and Type III water quality. Besides that, our lab water purification systems can help you with the following applications:
Buffers and reagents
A buffer corrects the pH level of any solution. On the other hand, a reagent stimulates a reaction to detect the absence or presence of other substances. Both solutions are prepared by dissolving solid reagents in pure water that are free from any substances that affect the acidity or pH level of the solutions.
Since water is a major solvent involved in creating these solutions, a deionized water system for laboratories is necessary to produce water with high levels of purity. The Yamato Auto Pure WA300 series water purifiers can remove dissolved minerals through high-purity ion exchange resins to process high-quality pure water, which is ideal for preparing both solutions.
Cell Culture
Normal water contains compounds that affect cell culture which includes bacteria, endotoxin, organic ions, and organic compounds. These contaminants can cause chemical reactions, changes in pH levels, and disrupt or kill various cells.
Moreover, water is also used in producing buffers and rinsing bioreactors and other materials. Therefore, producing laboratory grade water is necessary. This is usually achieved using Yamato Auto Pure WB300 series water purifiers. These units are great in removing bacteria and particulates to reach type 1 water quality, the highest level of purity in water.

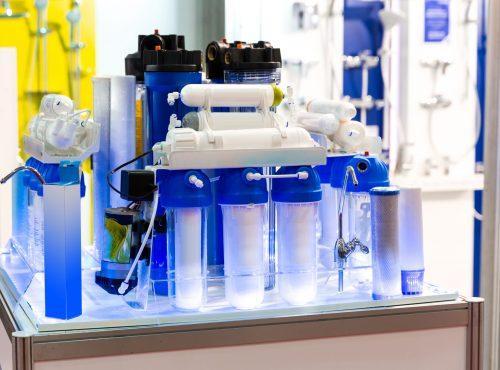

Reverse osmosis
In order to make Type 1 or Type 2 water, feed water quality is important. Reverse osmosis is used as pretreatment of raw water just before feeding it to water purifiers which can produce Type1 or Type 2 water.
Distillation
Traditional method of producing purified water is distillation, which is the process of separating liquid mixtures through condensation. Academia and certain applications require the heat treated distilled water. Yamato Auto Still series water purifiers can produce distilled water.
