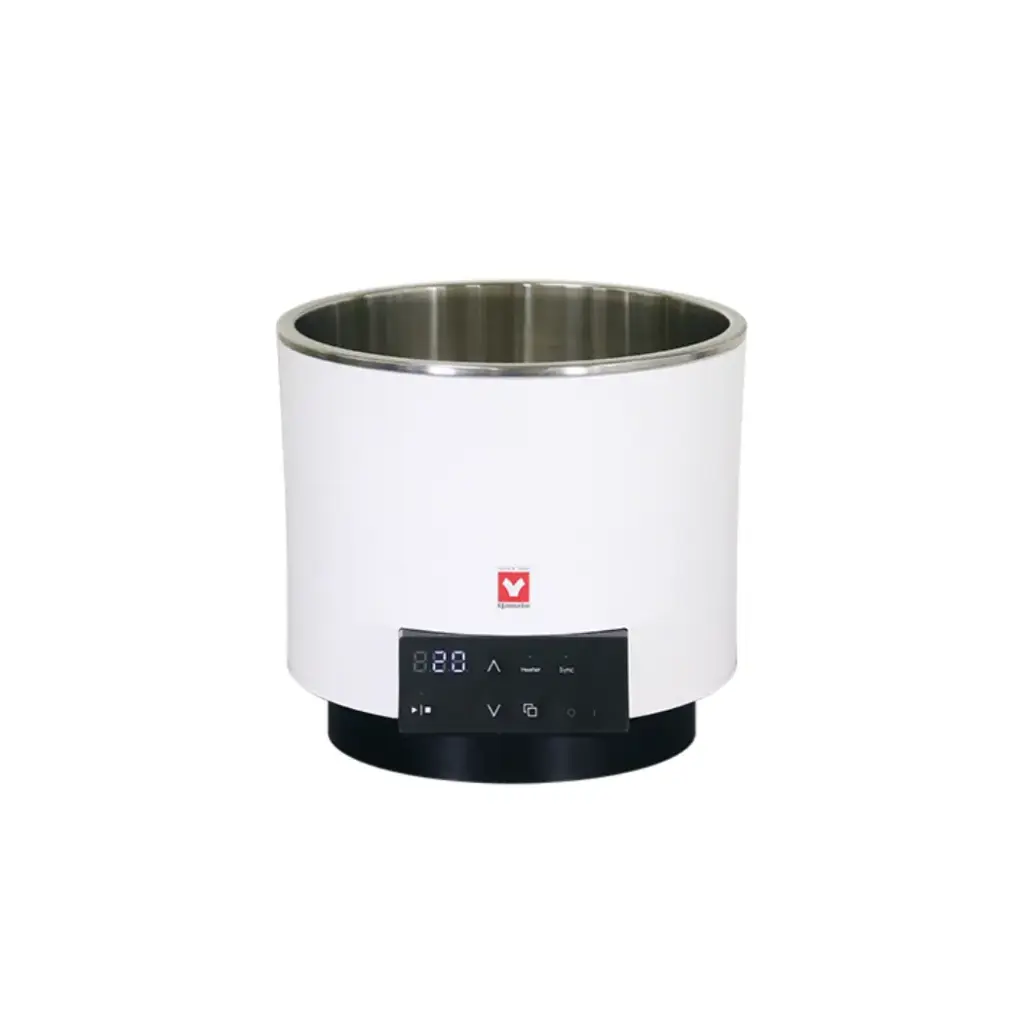

Yamato BO Series Constant Temp Laboratory Oil Bath

https://www.scilogex.com/web/image/product.template/3615/image_1920?unique=421d0ec
Easy to use, digital setting, compact design oil bath

$ 915.00 $ 915.00 In stock
In Stock Usually ships in 1 week

$ 715.00

Currently Out-of-Stock

  • Model

This combination does not exist.

Contact Us
Request a Quote
In Stock



For more information please call +1 (860) 436-9221 or email us at [email protected]

Share

Get the best price
for your organization today

BO302A BO312A / BO400 BO410 / BO500-115V / BO601-115V


Features

BO302A/312A

  • White LED digital display, key entry, minimum digit of 1°C
  • Flat-shaped bath with no heater or sensor inside makes for ease in cleaning
  • Full range of safety functions

BO400/410

  • Digital temperature setting by ▲▼ keys
  • Removable oil tank for convenient cleaning and changing of oil
  • Heater situated outside the water tank
  • Exclusive connection for bath operational setting function with RE601/801 rotary evaporator

BO500

  • Stainless steel oil bath
  • Bath protection sheet to prevent operator from burning
  • Must be used with MB800 magnetic stirrer

BO601

  • Digital temperature setting by ▲▼ keys
  • Protected oil tank prevents burns caused by contact
  • Equipped with a drain


40 years as a leading scientific lab equipment provider in the United States.
All products come with a 1 year warranty.
Every product is made through environmentally conscious methods and remains eco-friendly all throughout its life cycle.
Model BO302A
BO312A		 BO400
BO410		 BO500-115V BO601-115V
Operating temp. range *¹ Room temp. +10~180°C Room temp. +10~180°C Room temp. +5~199°C Room temp. +5~180°C
Temp. control accuracy *² ±2°C ±2°C (at agitation) ±0.5°C ±2°C (at 100°C)
Temp. control system PlD control PlD control by microprocessor Proportional control PlD control by microprocessor
Temp. setting / display method White LED digital display, key entry, min. digit of 1°C Digital setting by ▲/▼ keys Digital / Glass thermometer Digital setting by ▲/▼ keys
Operation function Fixed temperature Fixed temperature, quick auto-stop, auto stop, auto start -- Fixed temperature, quick auto-stop, auto stop, auto start
Additional function -- Keypad lock, RE signal transmission and reception, power failure recovery, calibration off-set -- Keypad lock, power failure recovery, calibration off-set
Heater 1000W aluminum sheathed heater 1.44kW (120V)
1.44kW (240V)		 Pipe heater 700W SUS316 pipeheater 1kW
Sensor Pt100Ω K thermocouple Pt100Ω K thermocouple
Safety device Bath protection sheet Bath protection cover (ABS heat-resistant resin) Bath protection sheet Bath protection cover
Automatic overheat prevention, independent overheat prevention (fixed temp.), temperature upper limit
error, Overcurrent protection fuse; Overshoot alert, Auto resume (selectable), 2A service outlet, calibration offset		 Self-diagnostic function (automatic overheat prevention, temperature sensor error, triac short circuit, heater disconnection, main relay failure), circuit protector, thermal fuse, micro switch to detect heating without oil Self-diagnostic function (automatic overheat prevention, temperature sensor error, triac short circuit, heater disconnection, main relay failure), circuit protector, thermal fuse
Interlocking control function -- RE601/801 signal transmission and reception (constant operation, heat retention operation, stop), Error report to RE601/801 -- --
Water tank Capacity ~5L ~4L ~5.2L ~7L
Internal dimensions ø240 x H119 mm Max. ø240 x bottom ø165 x H122mm ø240 x H130mm ø250 x H150mm
External dimensions ø262 x H240 mm W340 x D349 x H231mm W250 x D290 x H130mm W310 x D360 x H230mm
Weight ~4.5kg ~5.5kg ~1.4kg ~8kg
Power source (50/60 Hz) AC100-115V, 10-12A (with plug)
AC200-230V, 5-6A (no plug)
 AC100~120V 12.5~10.5A (with plug)
AC200~240V 6.5~5.5A (no plug)		 AC115V 7A (with plug)
AC220V 4A, (no plug) no breaker*³		 AC115V 11A (with plug)


*1. No load operation of bath only. Maximum temperature varies by different circumstances and operational conditions.

*2. Measured under ambient temperature at 23°C±5°C, humidity of 65%RH±20%.

*3. When combined with magnetic stirrer MB800, power source is from MB800 main unit outlet.
