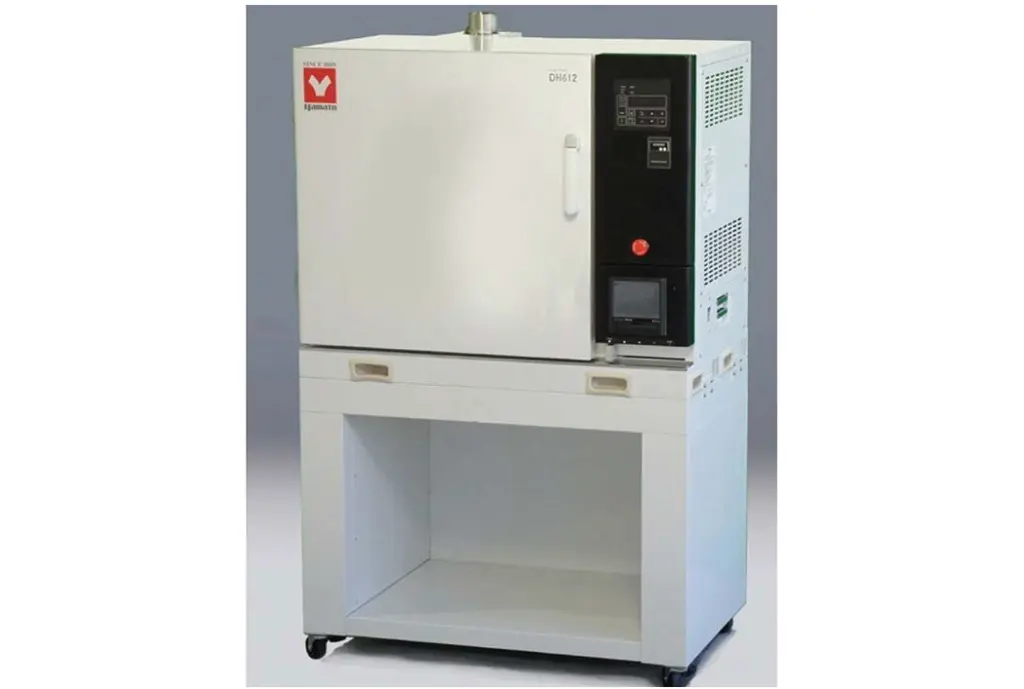

Yamato DF & DH Series High Performance Programmable Fine Ovens(1).webp

Yamato DF & DH Series High Performance Programmable Fine Ovens(2).webp

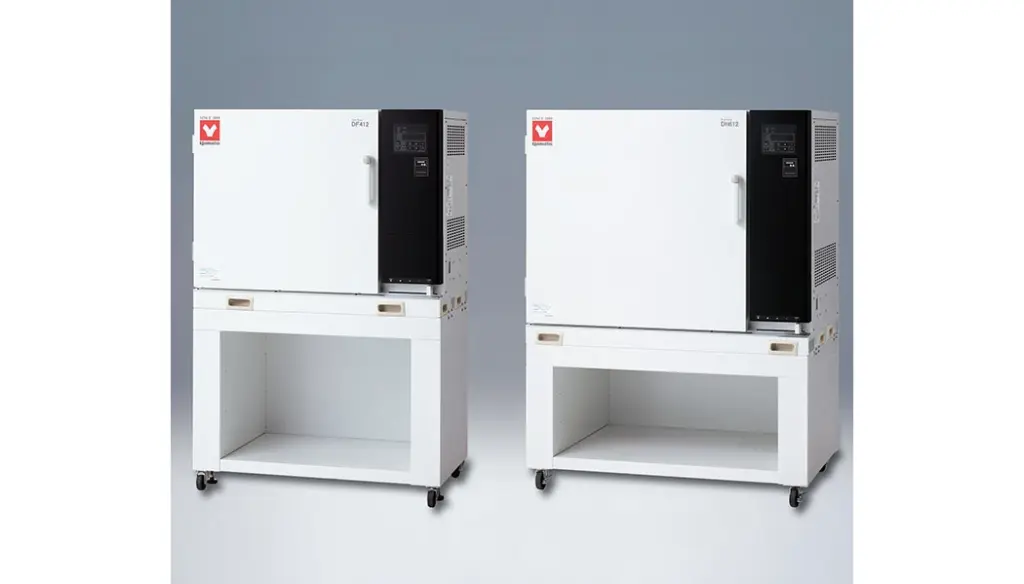

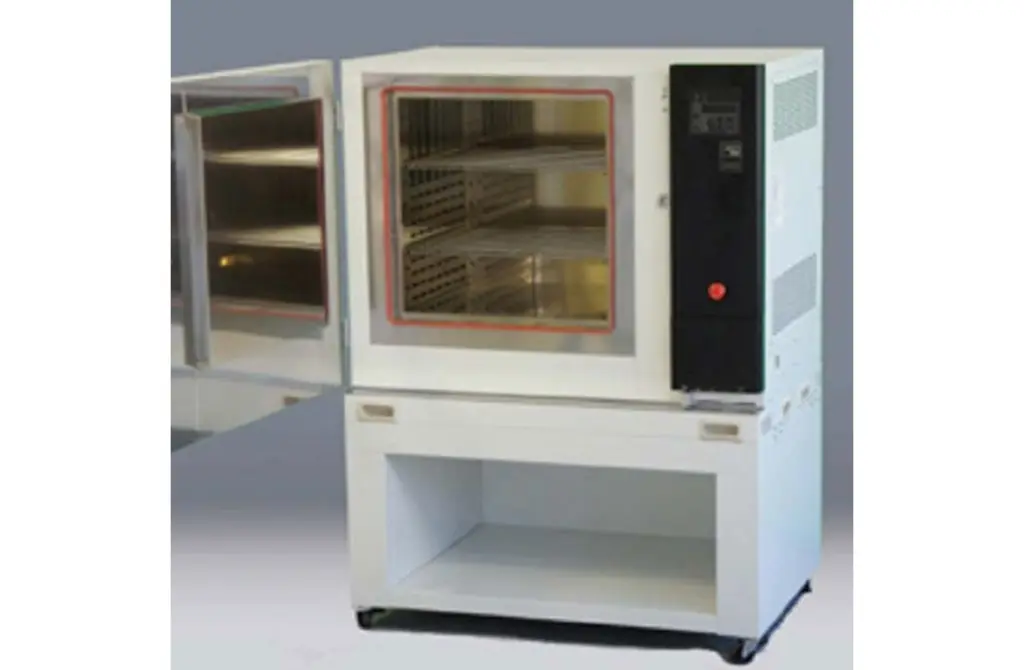

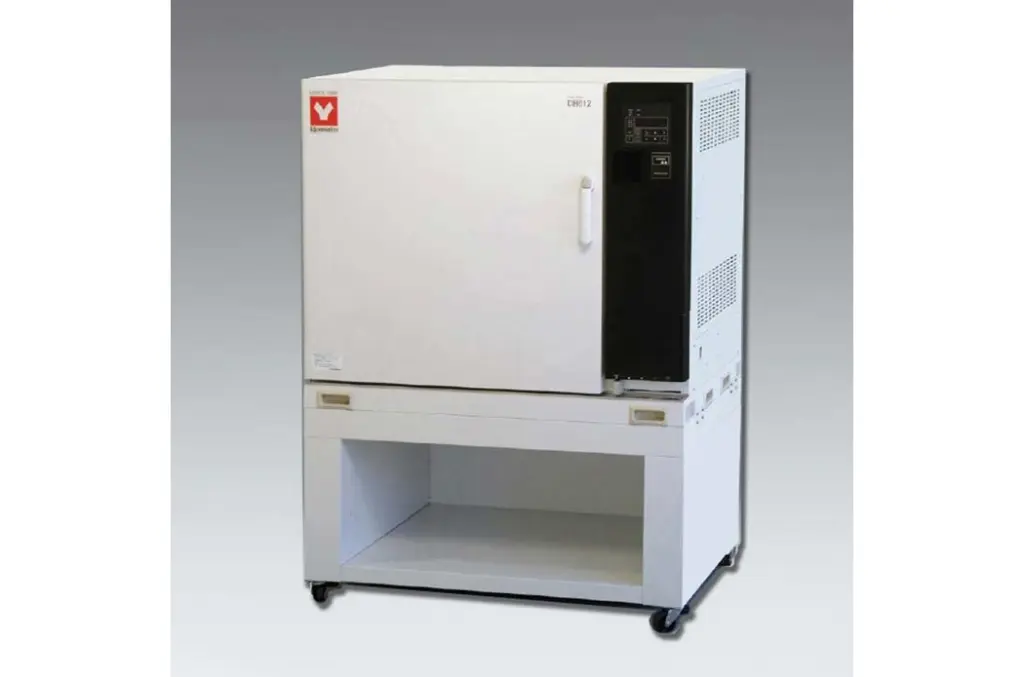

Yamato DF & DH Series High Performance Programmable Fine Ovens

Highly reliable and accurate fine ovens with simple settings for various temperature characteristic tests requiring complicated programming

$ 6,855.00 $ 6,855.00 In stock
In Stock Usually ships in 1 week

$ 0.00

Model

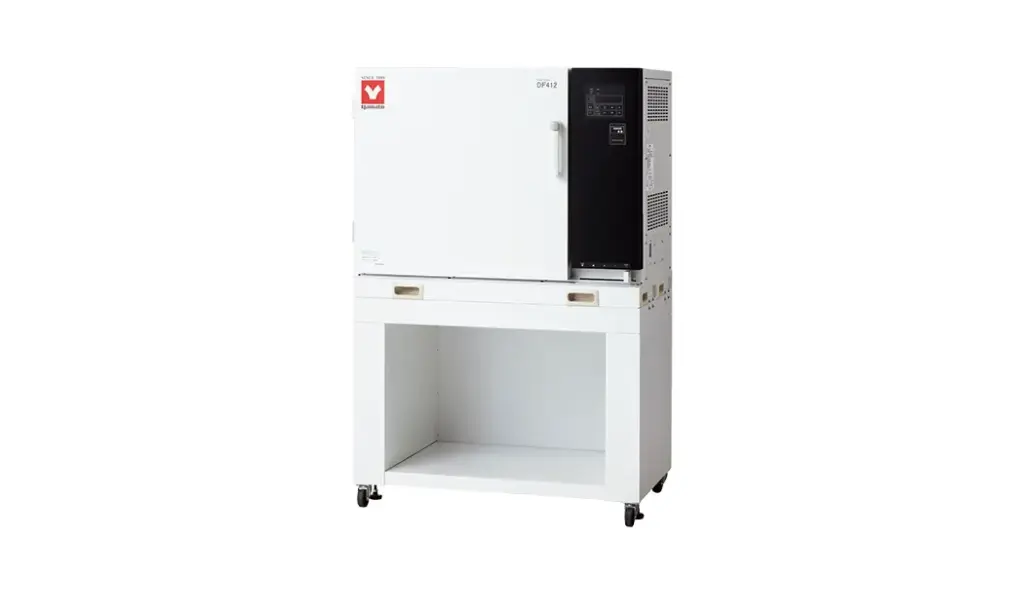

- [797059926671] DF412 - 220V
- [797059926688] DF612 - 220V
- [797059926718] DH412 - 220V
- [797059926725] DH612 - 220V

This combination does not exist.

Add to cart Buy now Instant Quote

For more information please call +1 (860) 436-9221 or email us at [email protected]

Get the best price
for your organization today

DF412/612 DH412/612

Performance and functions

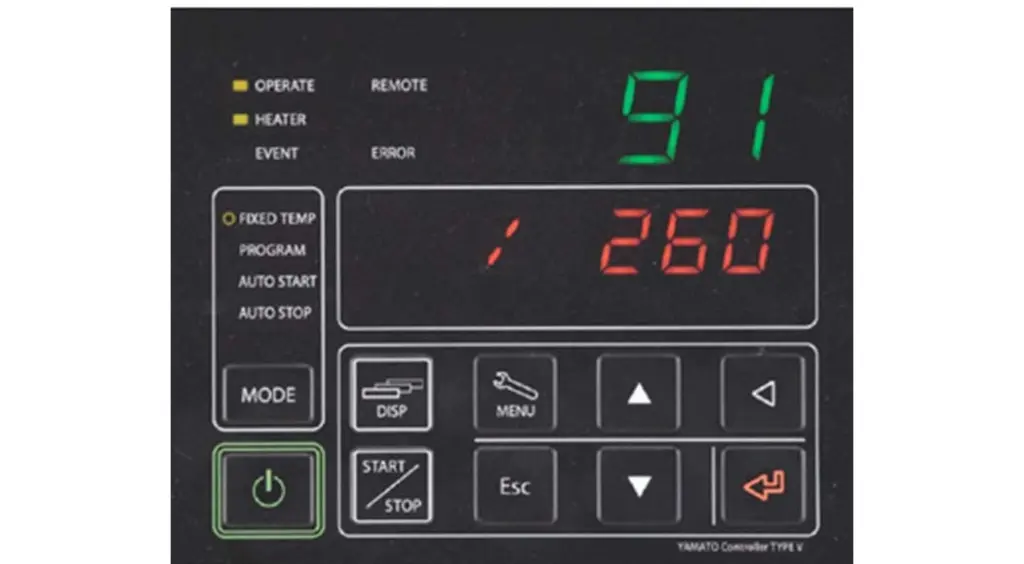

Improved visibility and operability of control panel
Precise temperature stability & uniformity
Standard equipped with adjustable air speed function and displays of power consumption, CO₂ emission and heat timer
Enhanced program operation function (maximum 99 steps, 99 patterns, repetitive operation function)
Improved safety with fan motor error detection
Exhaust damper allows quick exhaust and cooling of inside chamber
Equipped with exhaust and cable ports

Safety features

Self-diagnosis circuit (abnormal temp. sensing, heater disconnection, auto overheat prevention, SSR short circuit), overheat protector, earth leakage breaker, key lock and door switch

40 years as a leading scientific lab equipment provider in the United States.

All products come with a 1 year warranty.

Every product is made through environmentally conscious methods and remains eco-friendly all throughout its life cycle.

MODEL	DF412	DF612	DH412	DH612
System	Forced air circulation and ventilation
Operating Temp. Range*¹	Room temp. +15~260°C		Room temp. +15~360°C
Temp. Adjustment Accuracy*¹	± 0.1°C (at 260°C)		± 0.2°C (at 360°C)
Temp. Distribution Accuracy*¹	± 1.5°C (at 260°C)		± 2.5°C (at 360°C)
Max. Temp. Reaching Time*¹	~40 min. (reaches 260°C when setting at 270°C)		~50 min. (reaches 360°C when setting at 370°C)
Temp. Control System	PlD Z control
Temp. Setting Method	Digital setting by ▲/▼ key
Temp. Display Method	Setting temp. display: Digital display by 5-digit orange LED (resolution: 1°C) Temp. display: Digital display by 4-digit green LED (resolution: 1°C)
Other Indication	LED indicates temperature patterns for heating/stabilizing/cooling
Timer Display Range	Fixed value operation for 1 min. to 99 hrs. 59 mins. 24 hr time system: clock operation
Operation Functions	Fixed temperature, Auto start, Auto stop, Program operation: up to 99 steps, 99 patterns, repeat operation function
Additional Functions	Variable air flow function, power on time and timer accumulation monitor (up to 65535 hrs), calibration offset, power consumption display, total CO₂ emissions and heat operation output, power failure recovery mode, setting data backup and recovery
Sensor	K thermocouple (double sensor)
Heater Insulator	SUS pipe heater with fan
Heater Capacity	2.1 kW	3.0 kW	2.7 kW	3.75 kW
Blower Fan (Motor)	Axial fan (capacitor type motor 20W)
Cable Port	I.D. 33 mm x 1 pc. (rear)
Interior / Exterior Material	Stainless steel/ Chrome-free electro-galvanized steel sheet metal, chemical-proof baked on finish
Door	Single swing (left side)
Exhaust Port	Automatic exhaust damper I.D. 80 mm (rear panel)
Heat Insulator	Glass wool
Heater Circuit Control	Triac with zero-crossing method
Earth Leakage Breaker	15A	20A	20A	30A
Earth Leakage Breaker	Leak current/short circuit / Over-current protection, rated current sensitivity 30mA
Safety Device	Self-diagnostic functions (temp. sensor error, TRIAC short circuit, heater disconnection, SSR short-circuit, fan motor failure, main relay contact damage and overheating), key lock function, door switch (door open, fan motor and heater circuit OFF / door close: fan motor and heater circuit ON), independent overheat prevention (temp. setting range: 0~300°C for DF and 0~400°C for DH)
Internal Dimensions*² W×D×H	450×450×450 mm	600×600×600 mm	450×450×450 mm	600x600x600 mm
External Dimensions*² W×D×H	1050×630×850 mm	1200×780×1000 mm	1050×630×850 mm	1200×780×1000 mm
Internal Capacity	91L	216L	91L	216L
Shelf Max. Load	~30kg / pc.
Shelf Support Qty. / Pitch	9 steps / 45mm	9 steps / 60mm	9 steps / 45mm	9 steps / 60mm
Power Source 50/60 Hz Single Phase	AC220V 12.5A (no plug, round terminal)	AC220V 17.5A (no plug, round terminal)	AC220V 15.5A (no plug, round terminal)	AC220V 17.5A (no plug, round terminal)
Weight	~112 kg	~156 kg	~112 kg	~156 kg
Included Accessories	Shelf and brackets
Shelf / Bracket	2 pcs / 4 pcs	3 pcs / 6 pcs	2 pcs / 4 pcs	3 pcs / 6 pcs

*¹ Performance data above based on rated source voltage, single phase 220V AC ±5%, supplied power, 23°C±5°C (room temperature), 65%RH ±20% humidity, 86kPa atmospheric pressure, exhaust damper closed, and no sample load.
*² Protrusions excluded.

Click on the links below to download the associated PDFs.

Oven Overview

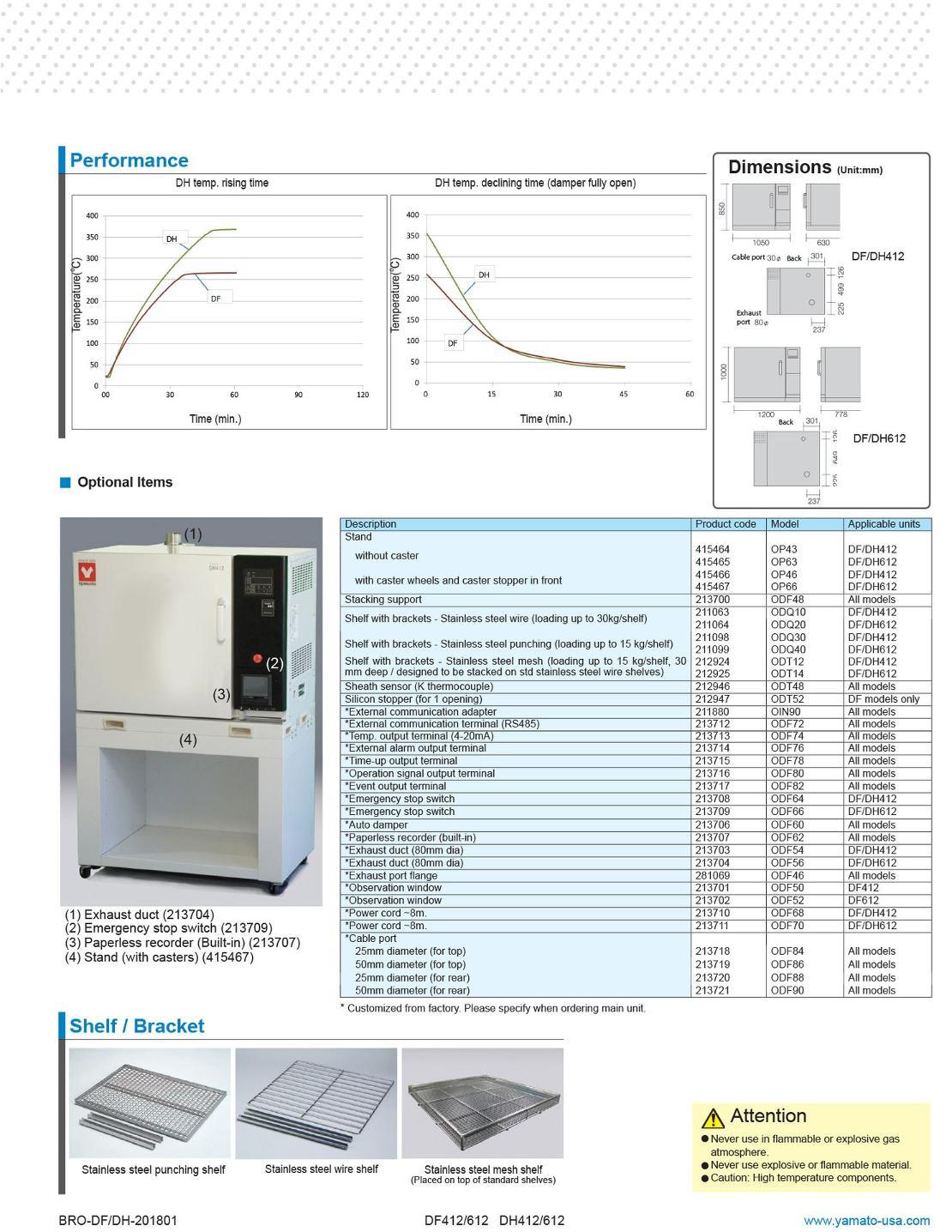

DF412/612 DH412/612 Catalog

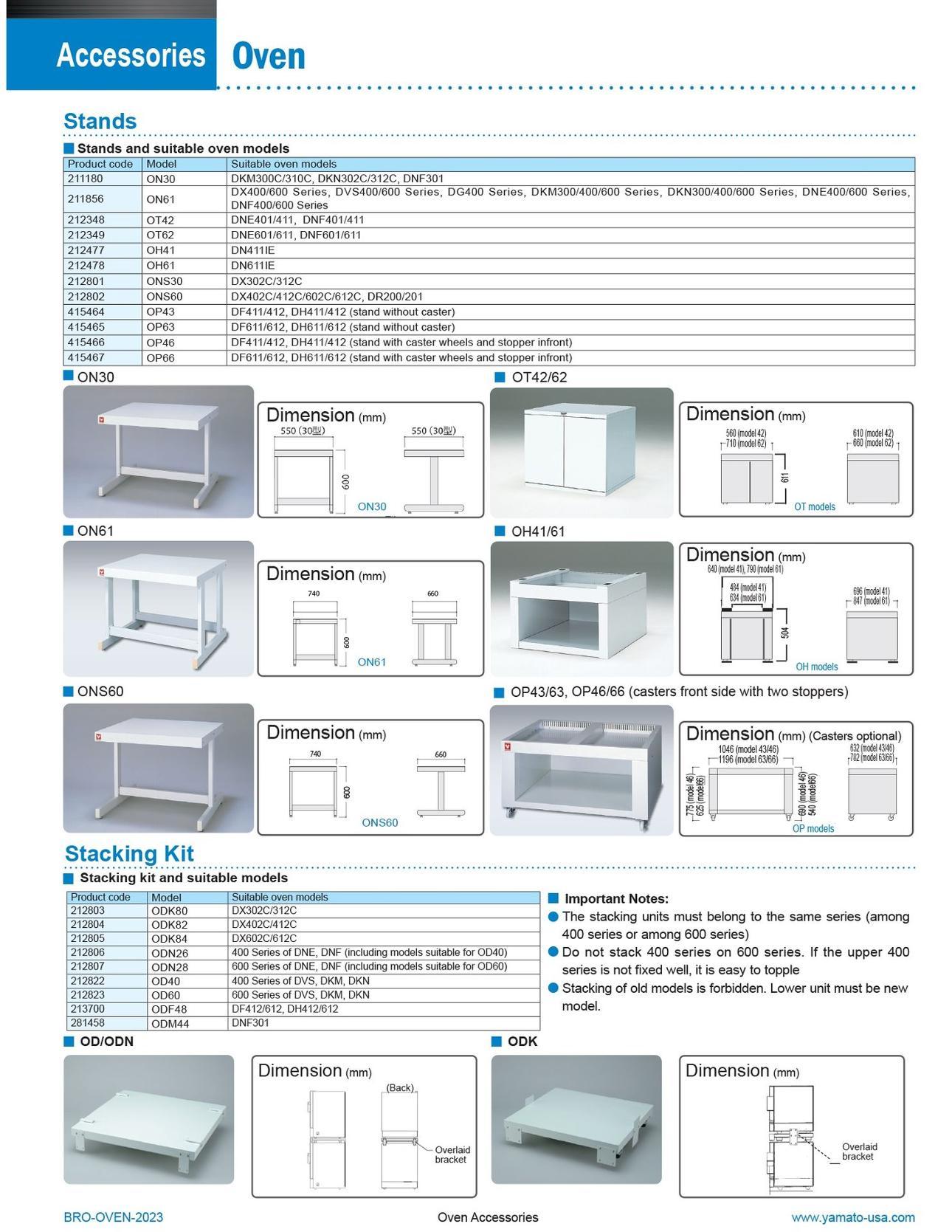

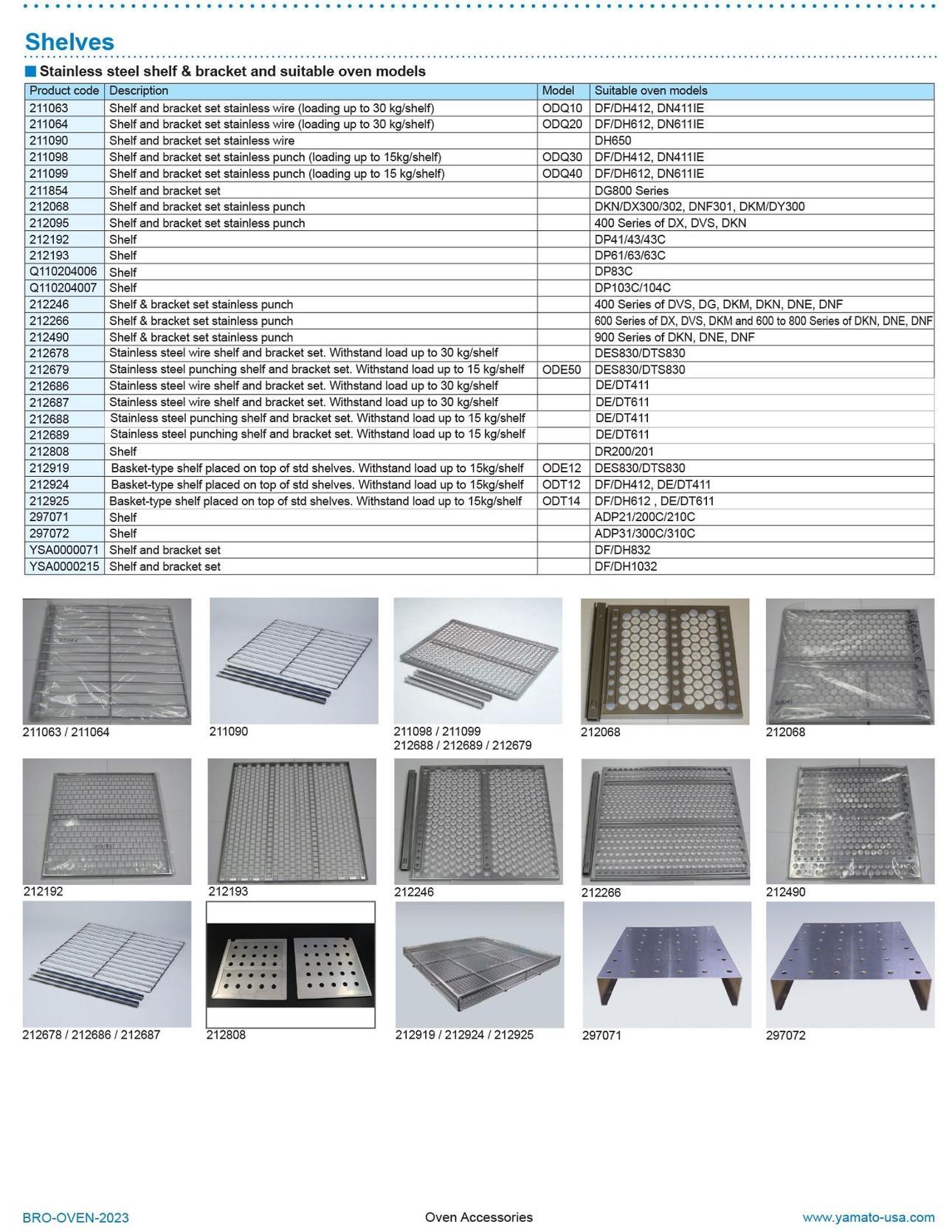

Oven Accessories
