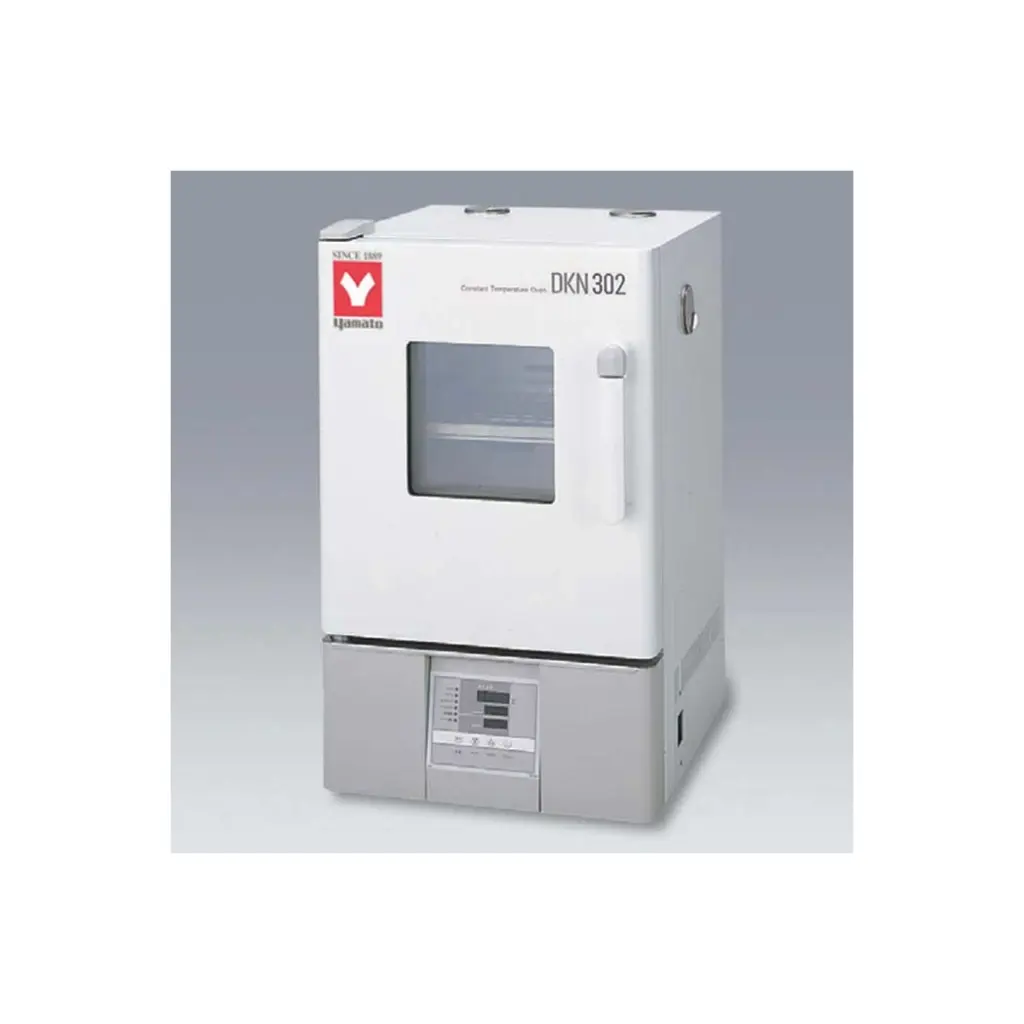

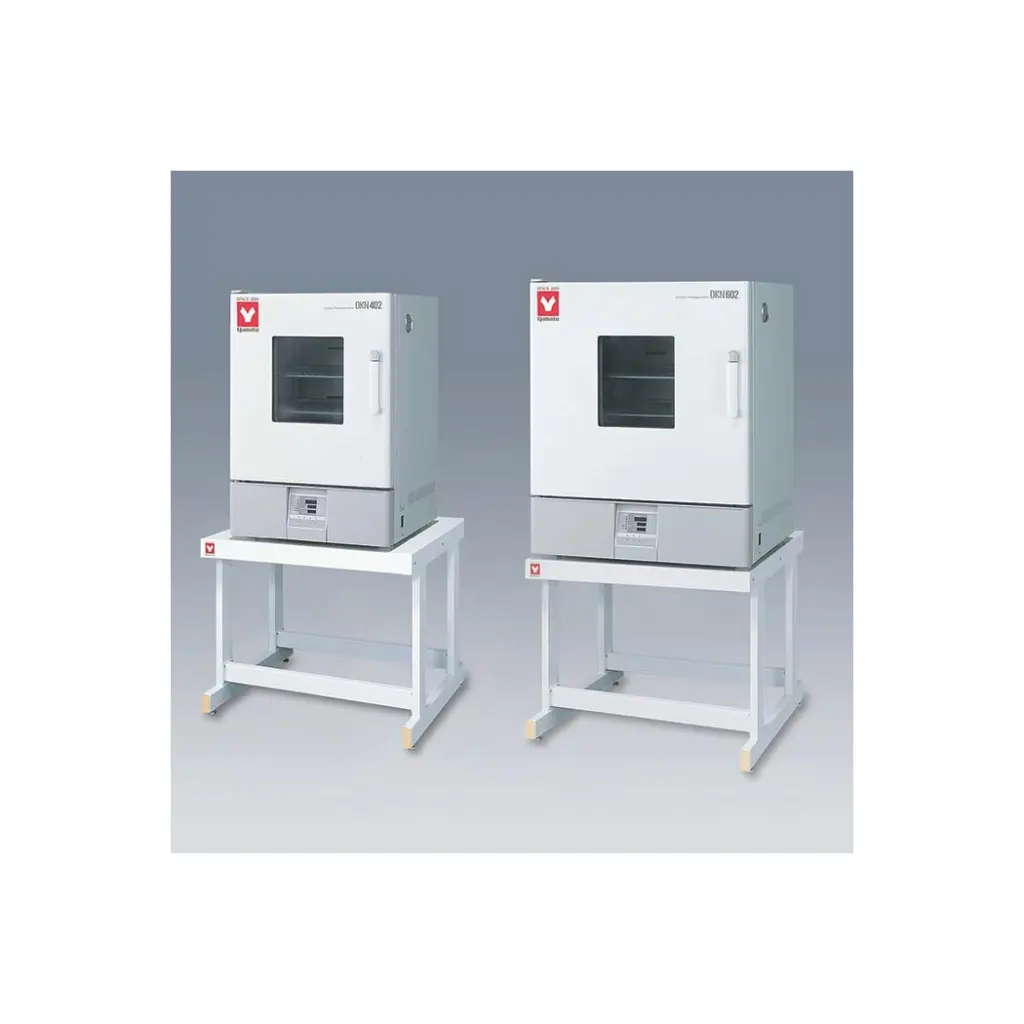

Yamato DKN Series Standard Programmable Forced Convection Ovens

https://www.scilogex.com/web/image/product.template/3650/image_1920?unique=04216ad
Yamato’s Bestseller! Programmable forced convection constant temperature ovens with extended functions and safety features

$ 2,770.00 $ 2,770.00 In stock
In Stock Usually ships in 1 week

$ 0.00

Currently Out-of-Stock

  • Model

This combination does not exist.

Contact Us
Request a Quote
In Stock



For more information please call +1 (860) 436-9221 or email us at [email protected]

Share

Get the best price
for your organization today

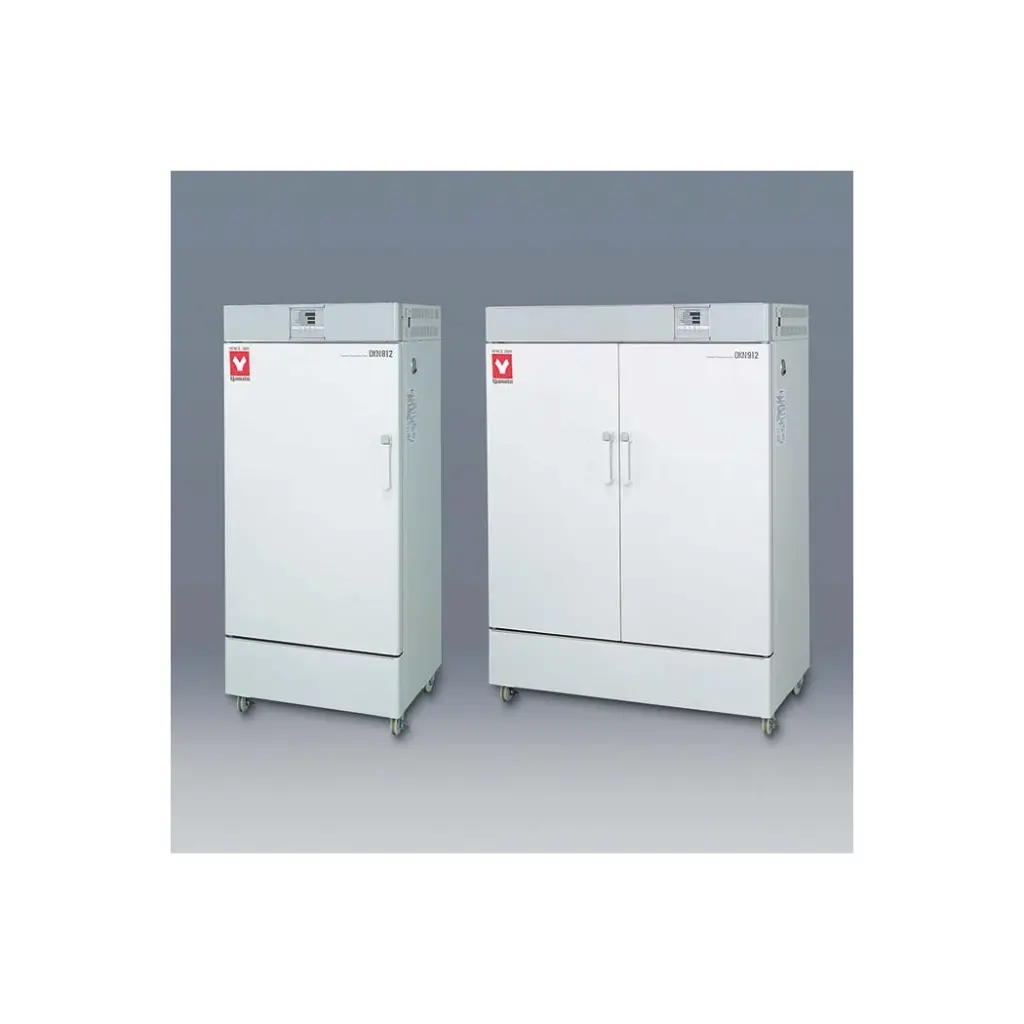

DKN302C/312C/402C/412C/602C/612C/812C/912C


Features​

  • Bestseller based on excellent performance and affordability.
  • Superior temperature accuracy
  • DKN302C/312C/402C/412C/602C/612C models come with observation windows.
  • Programmable PID controller for easy program settings (30-step, 3-pattern program controller with repeat functions)
  • Fixed setting, Quick Auto stop, Auto stop, Auto start, Program operating modes with easy control capabilities
  • Increased safety and self-diagnostic functions
  • Overheating prevention and calibration off-set are possible with auxiliary functions
  • Easy to use and maintain
  • Built in exhaust ports.

Safety features

  • Self-diagnostic functions (Temperature sensor abnormal, Heater disconnection, SSR-short), Automatic overheating prevention, Electric leakage breaker with over current protection, Key lock function
40 years as a leading scientific lab equipment provider in the United States.
All products come with a 1 year warranty.
Every product is made through environmentally conscious methods and remains eco-friendly all throughout its life cycle.

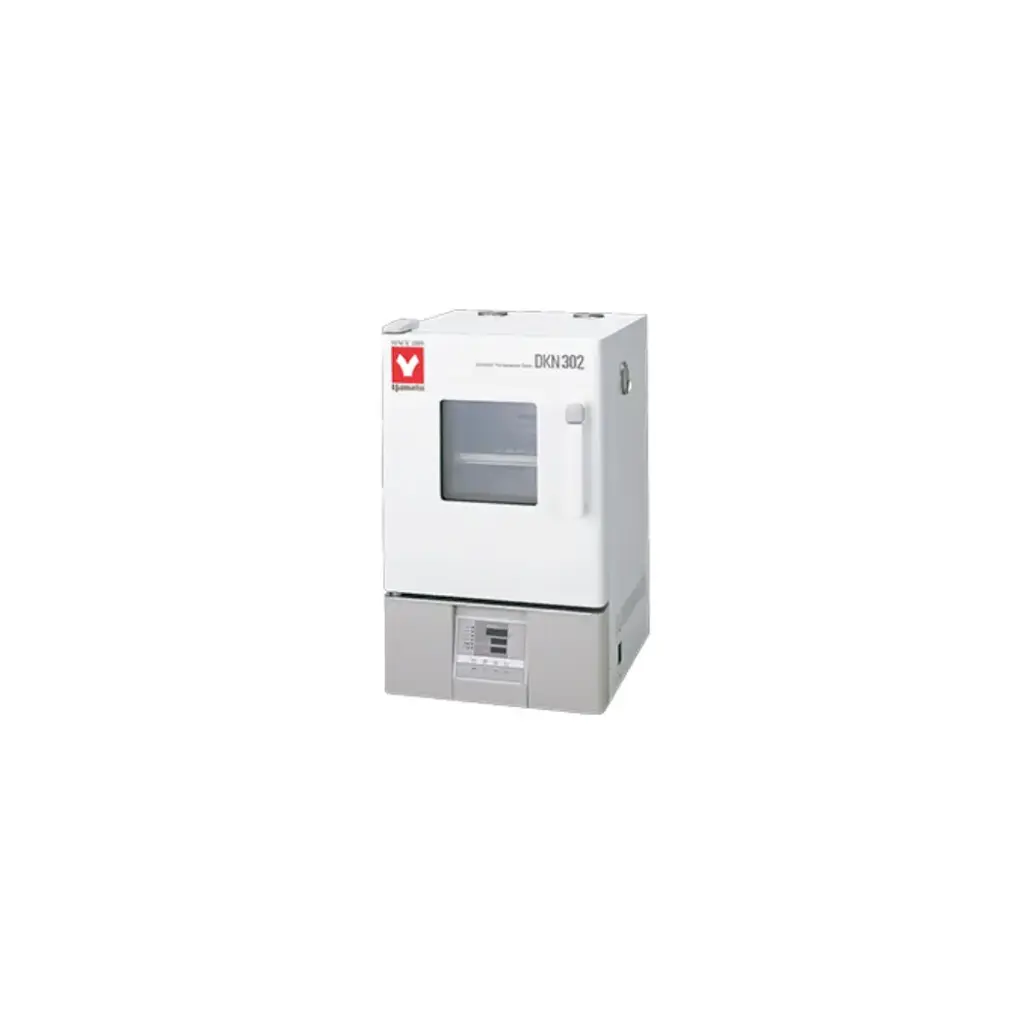

Model DKN302C
DKN312C		 DKN402C

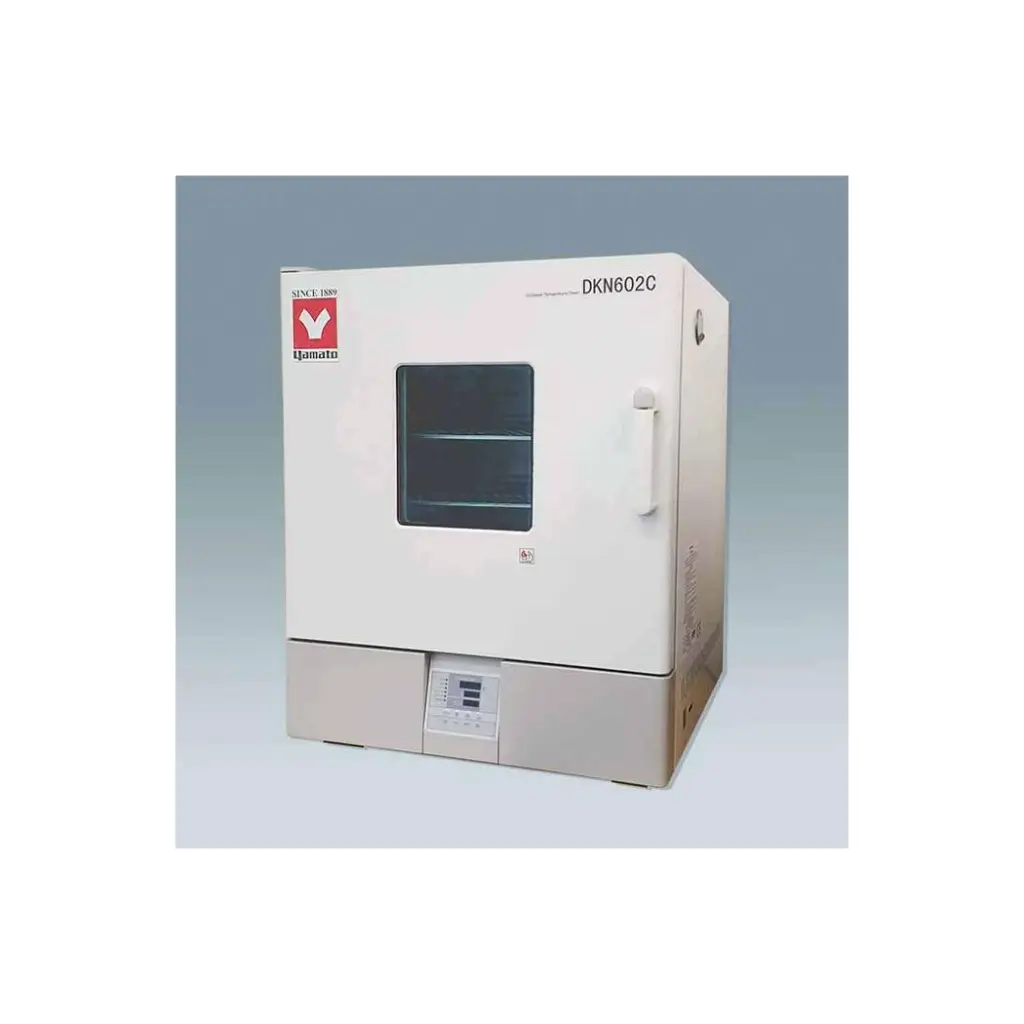

DKN412C		 DKN602C
DKN612C		 DKN812C

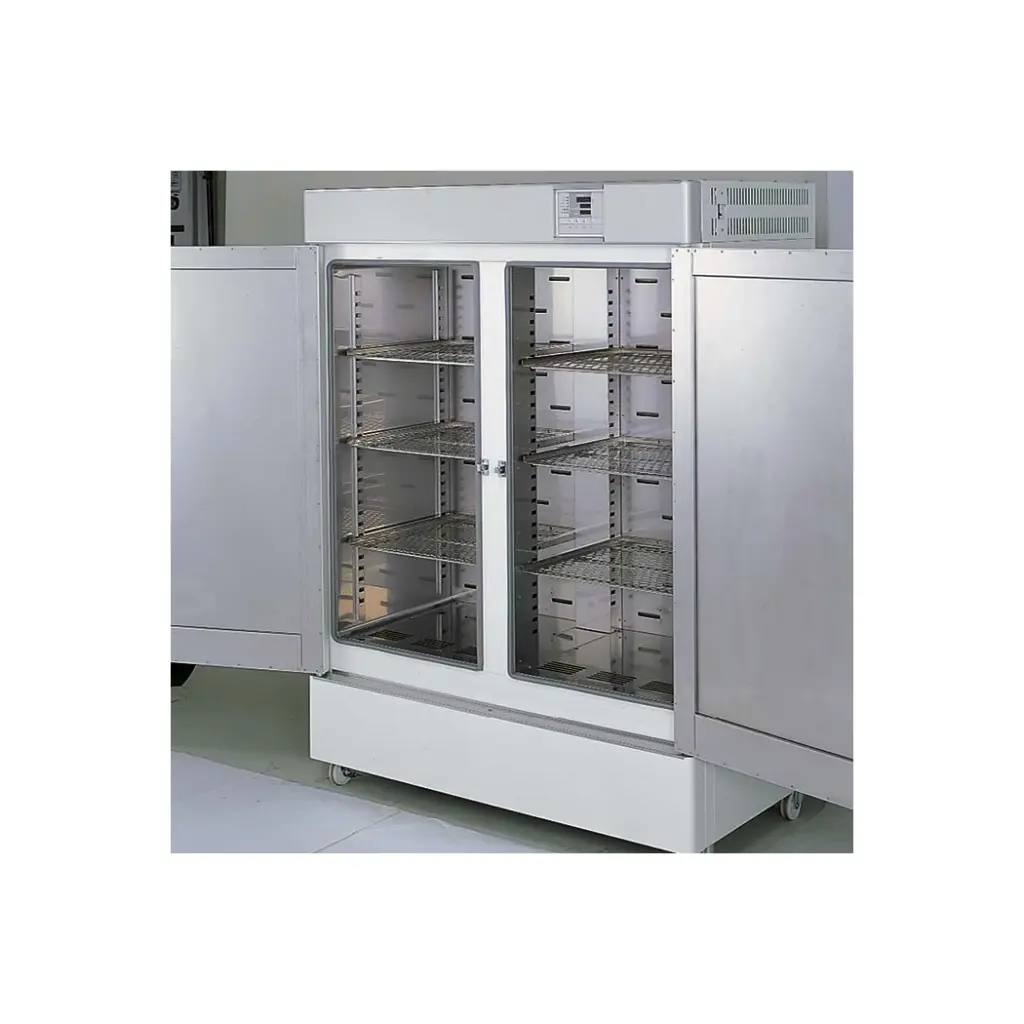

 DKN912C

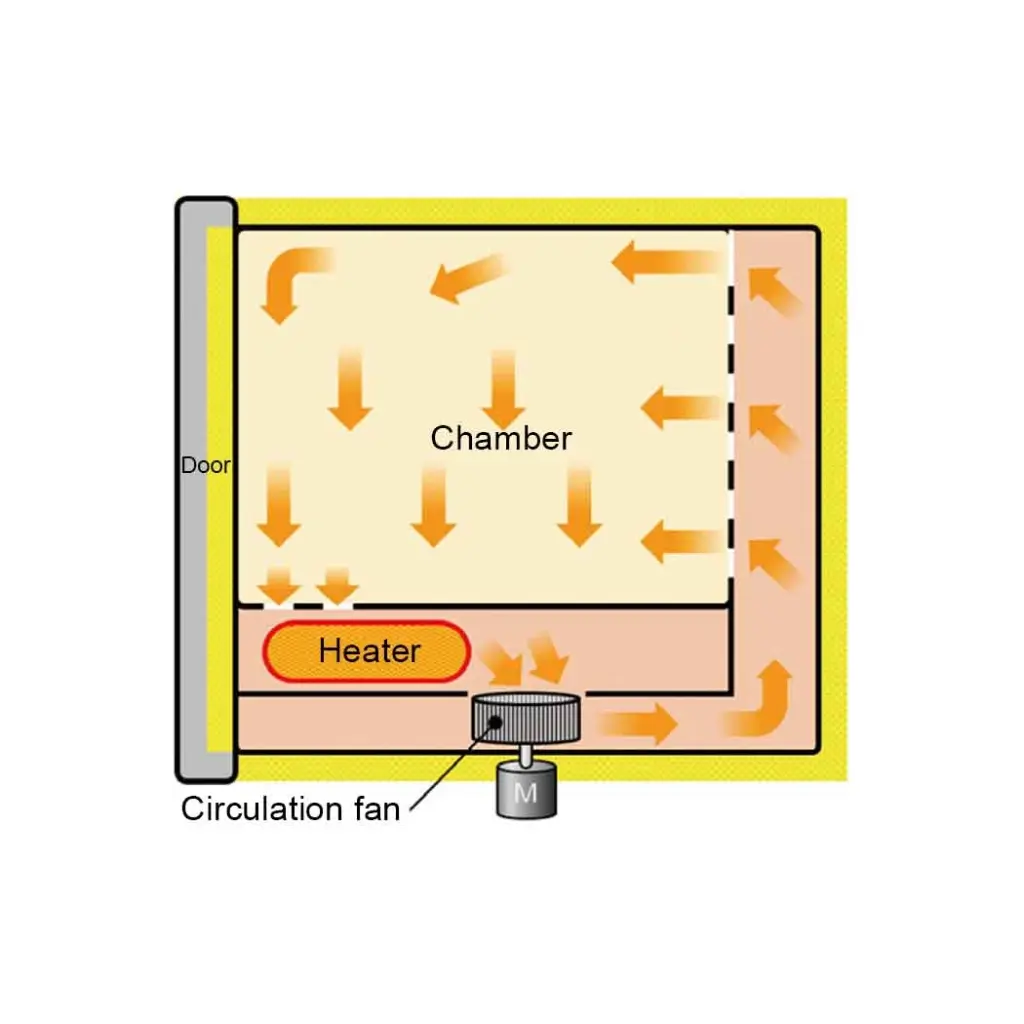

Circulation method Forced air circulation
Operating temp. range Room temp. +10°C~260°C Room temp. +10°C~210°C
Temp. adjustment accuracy ±1°C (at 210°C)
Temp. distribution accuracy ±2.5°C (at 210°C)
Max. temp. reaching time ~90 min. ~90 min. ~90 min. ~60 min. ~60 min.
Interior/Exterior material Stainless steel / Cold rolled steel plate with melamine resin baking finish
Heat insulating material Glass wool
Heater SUS pipe heater/0.8kW SUS pipe heater/1.2kW SUS pipe heater/1.5kW SUS pipe heater/1.5kWx2 SUS pipe heater/1.8kWx2
Fan Type / Fan Motor Scirocco fan, Condenser type motor 10W 1pc / 30W 2pc / 10W

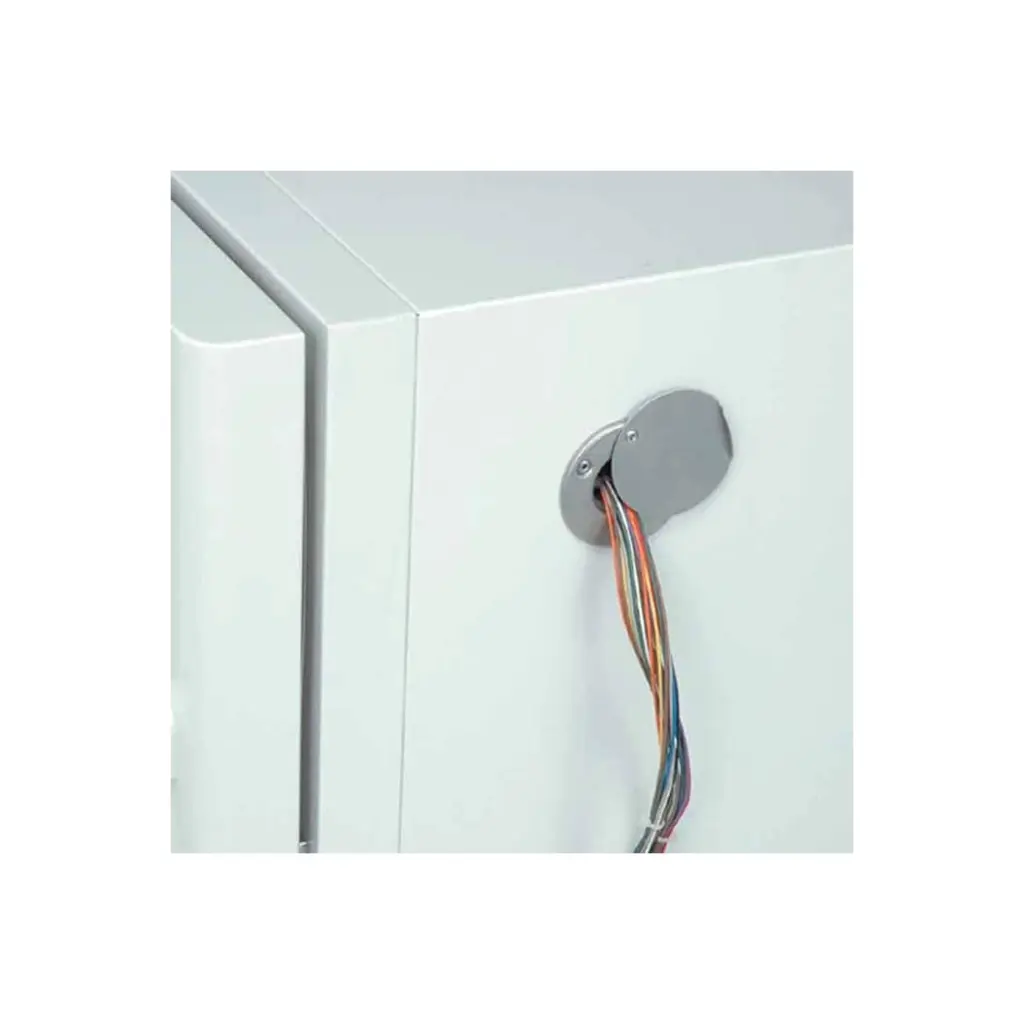

Cable hole 30mm I.D. (on the right side) 1pc.

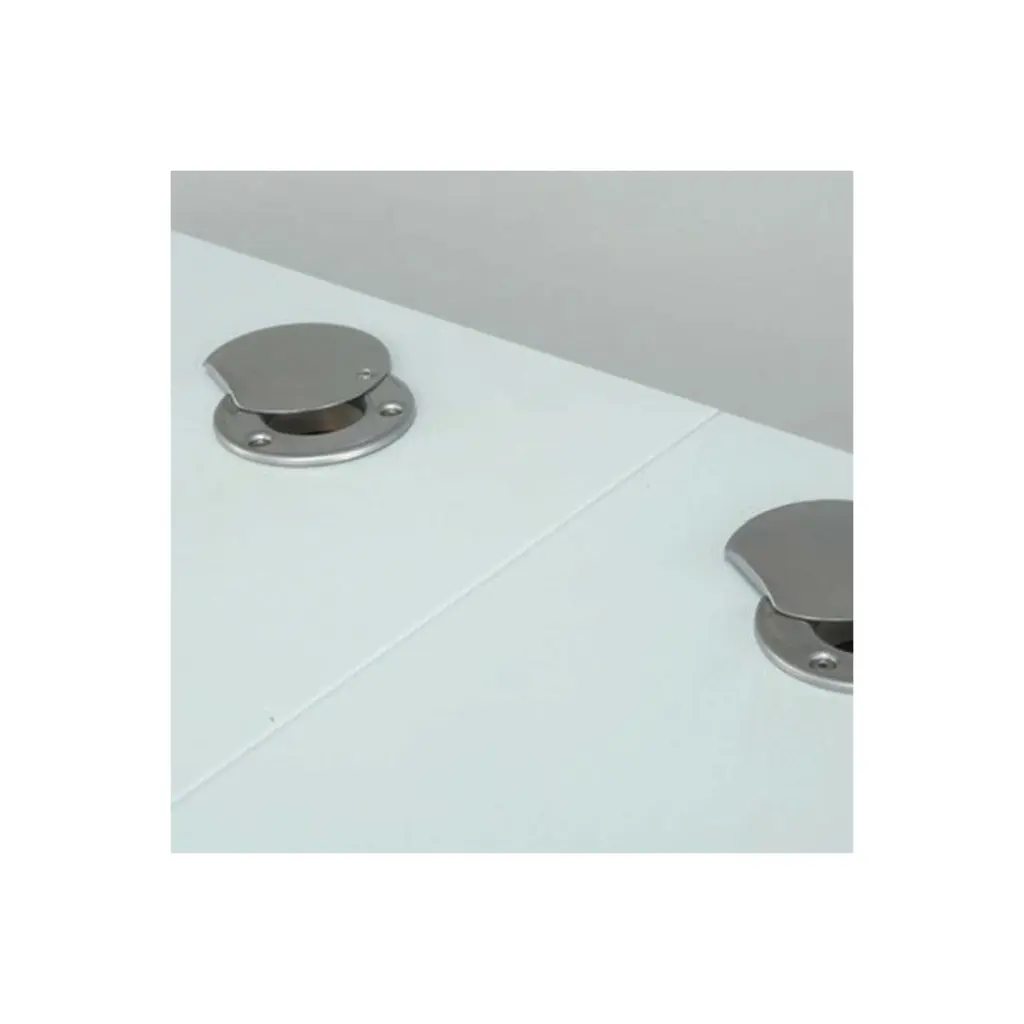

Exhaust port 30mm I.D. x 2 (on top) 30mm I.D.×2 (the back)

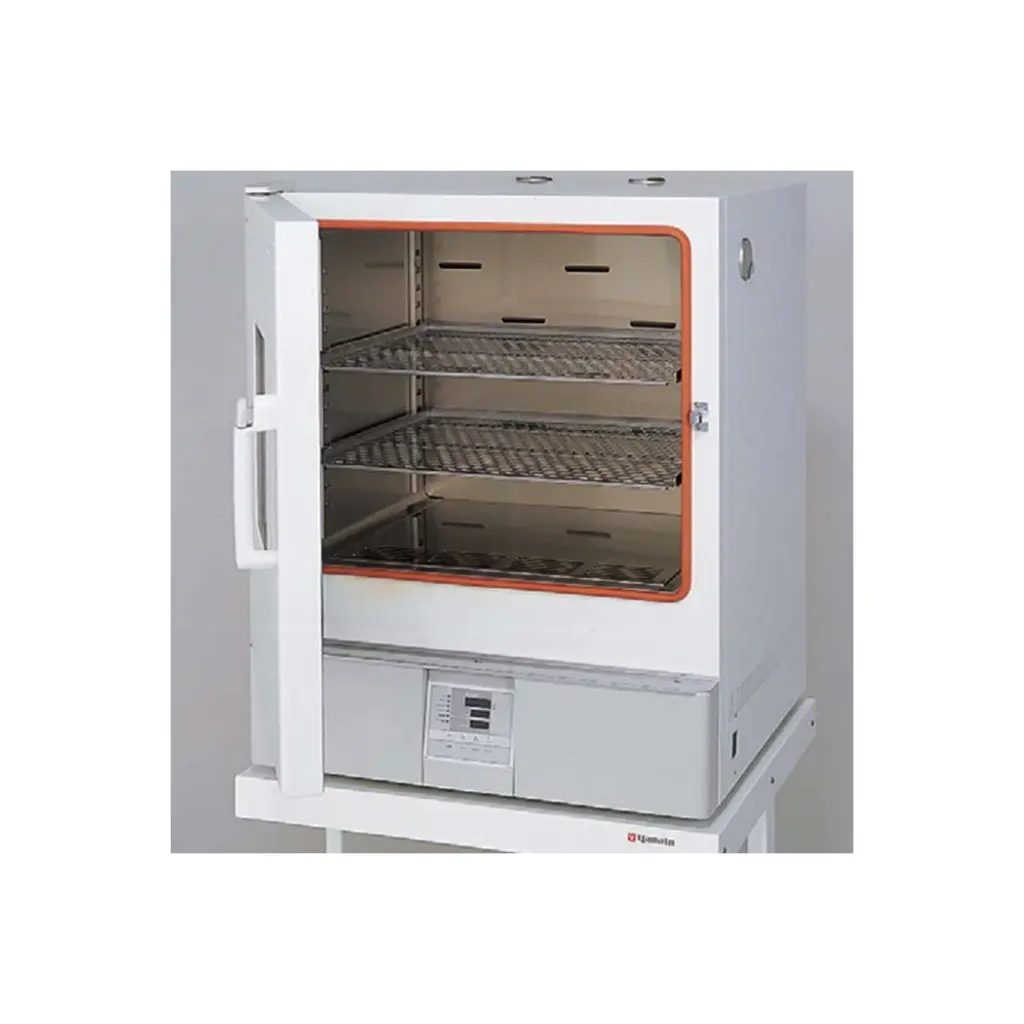

Observation window 180×180mm Chemical strengthening glassx3 250 x 280mm Chemical strengthening glassx3 None

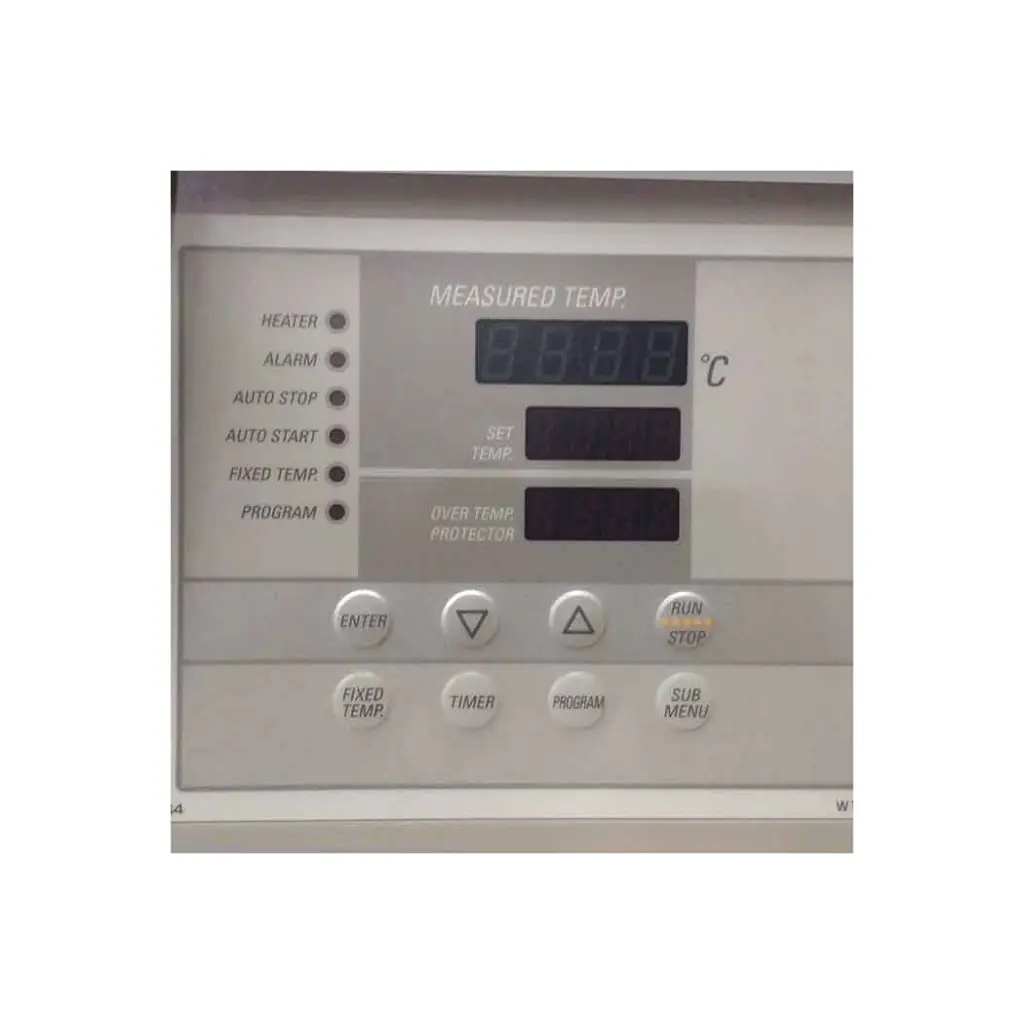

Temp. controller 3 patterns program controller, PID control by microprocessor
Temp. setting method Digital setting by ▲/▼ key
Temp. display Measurement temp. : Digital display by green LED / Setting temp. : Digital display by red LED
Timer 1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs. 50 min. with timer wait function
Operation function Fixed temperature operation, Program operation, Auto start, Auto stop, Quick Auto-stop
Program mode Program operation : 3 patterns, 30 steps (30 steps×1, 15 steps×2, 10 steps×3) Pattern repeat function
Additional functions Calibration off-set function, Key lock, Uninterruptible power for memory
Heater circuit control SSR control
Sensor K-thermocouple
Safety device Self diagnostic functions (temp. sensor abnormal, Heater disconnection, SSR- short, Automatic overheating prevention), Key lock function, Overheat prevention, Electric leakage breaker with over current protection
Internal dimensions W×D×H 300×300×300 mm 450×450×450 mm 600×500×500 mm 600×500×1000 mm 1070×500×1000 mm
External dimensions W×D×H
 410×451×670 mm 560×601×820 mm 710×651×870 mm 710×651×1608 mm 1180×651×1616 mm
Internal capacity 27L 90L 150L 300L 535L
Shelf plate with standard load ~15kg/piece
Shelf rest step number / Shelf rest pitch 9 steps / 30mm 11 steps / 30mm 13 steps / 30mm 29 steps / 30mm 29 steps x 2 / 30mm
Power source 50/60Hz 115V 7.5A (with plug)
220V 4.5A (no plug, round terminal)		 115V 11A (with plug)
220V 6.5A (no plug, round terminal)		 115V 12.5A (with plug)
220V 7A (no plug, round terminal)		 220V 15A (no plug, round terminal) 220V 18A (no plug, round terminal)
Weight ~35kg ~50KG ~65kg ~110kg ~190kg
Included accessories Shelf and brackets (stainless steel plate, 1 pc. on the bottom screwed, 2 pcs. for DKN912C)
Shelf plate / bracket 2 pcs. / 4 pcs. 2 pcs. / 4 pcs. 2 pcs. / 4 pcs. 4 pcs. / 8 pcs. 8 pcs. / 16 pcs.


Click on the links below to download the associated PDFs.

Oven Overview

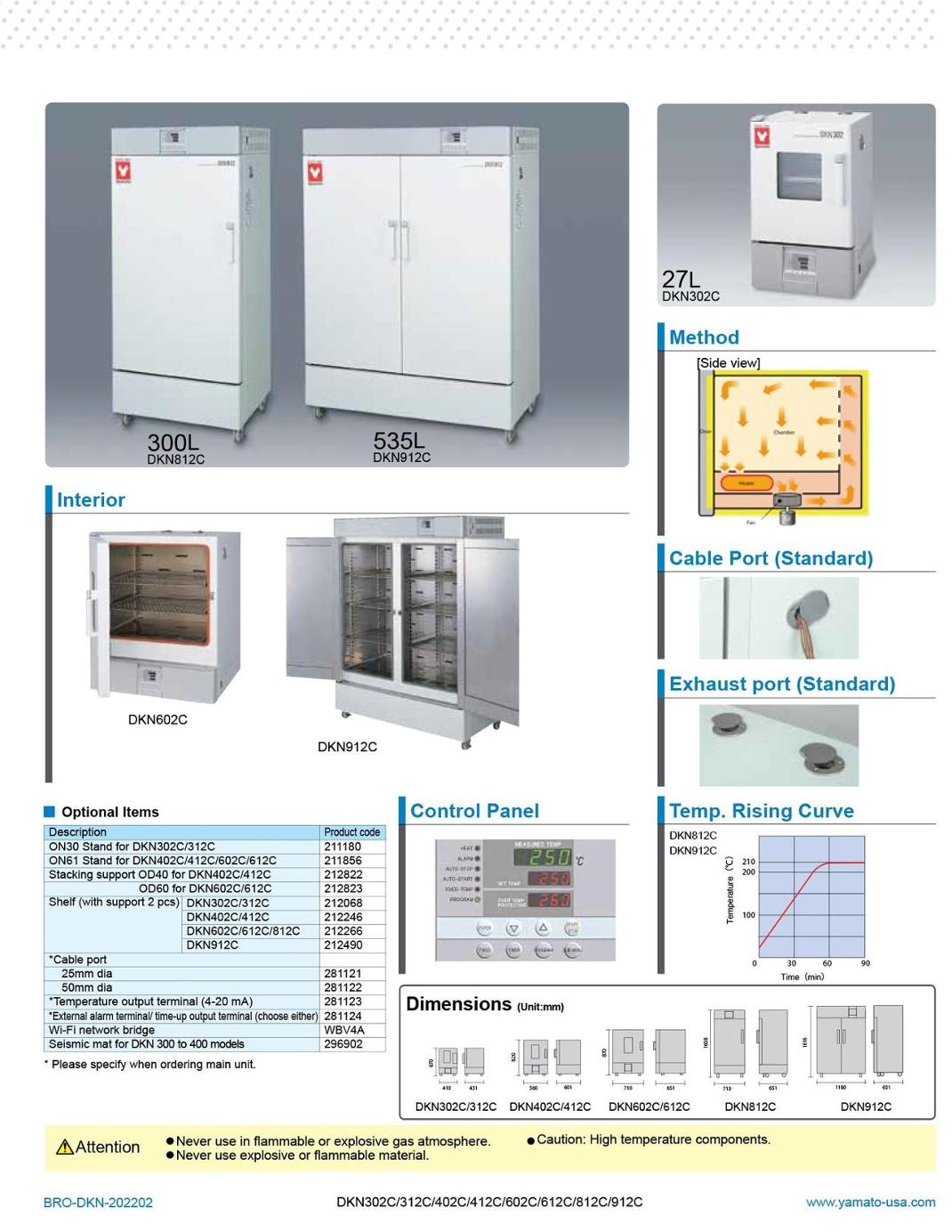

DKN Series Catalog

DKN Series Poster

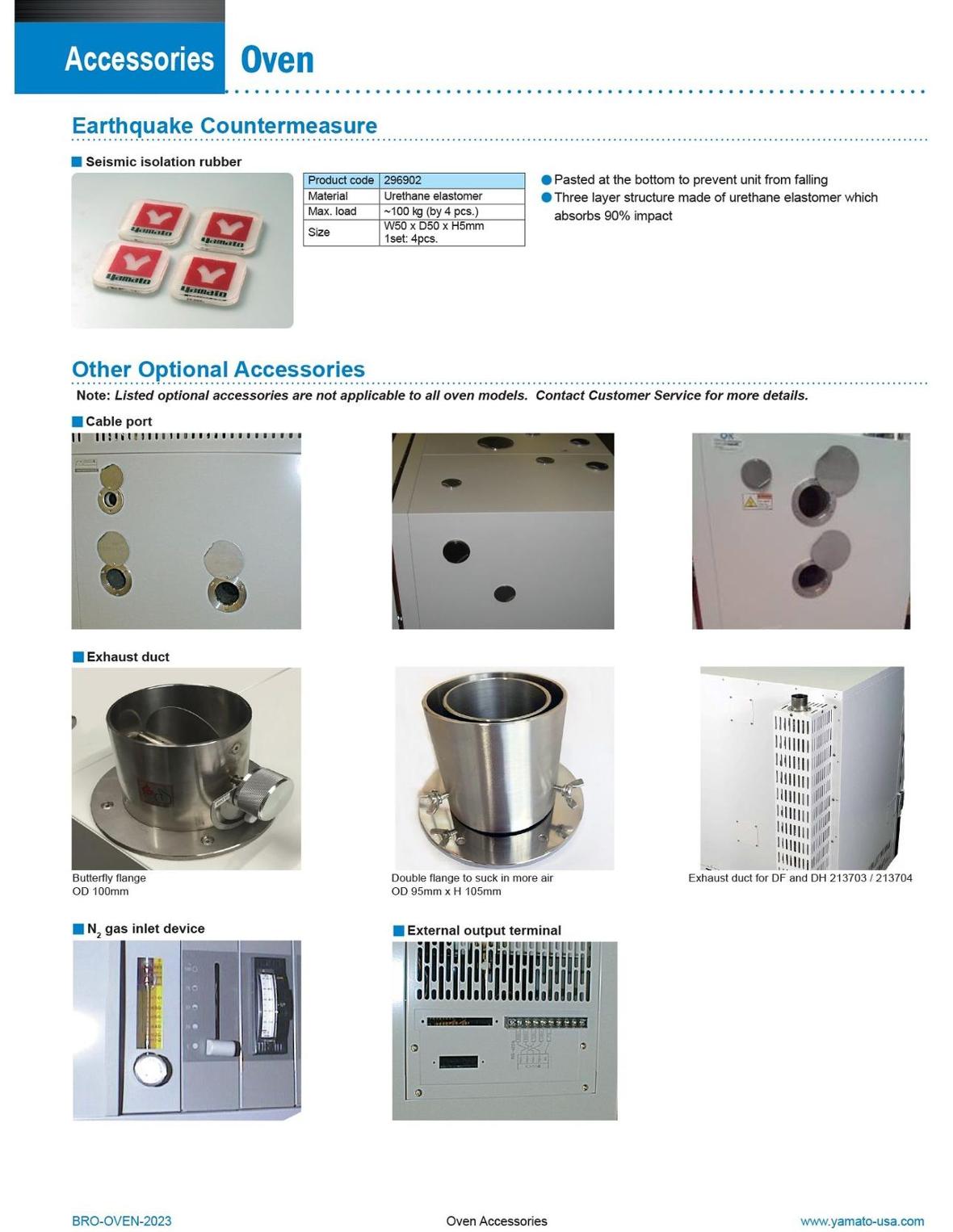

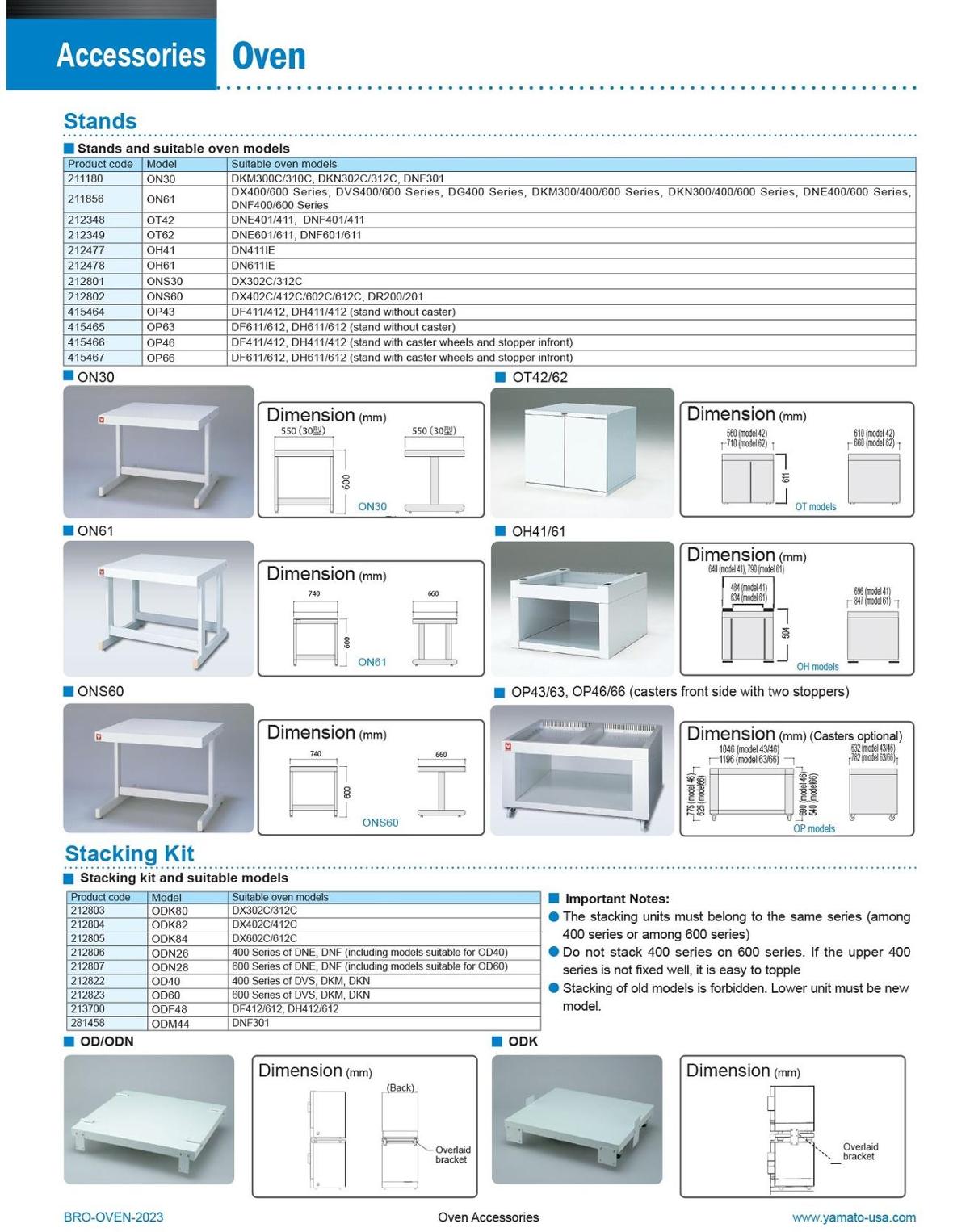

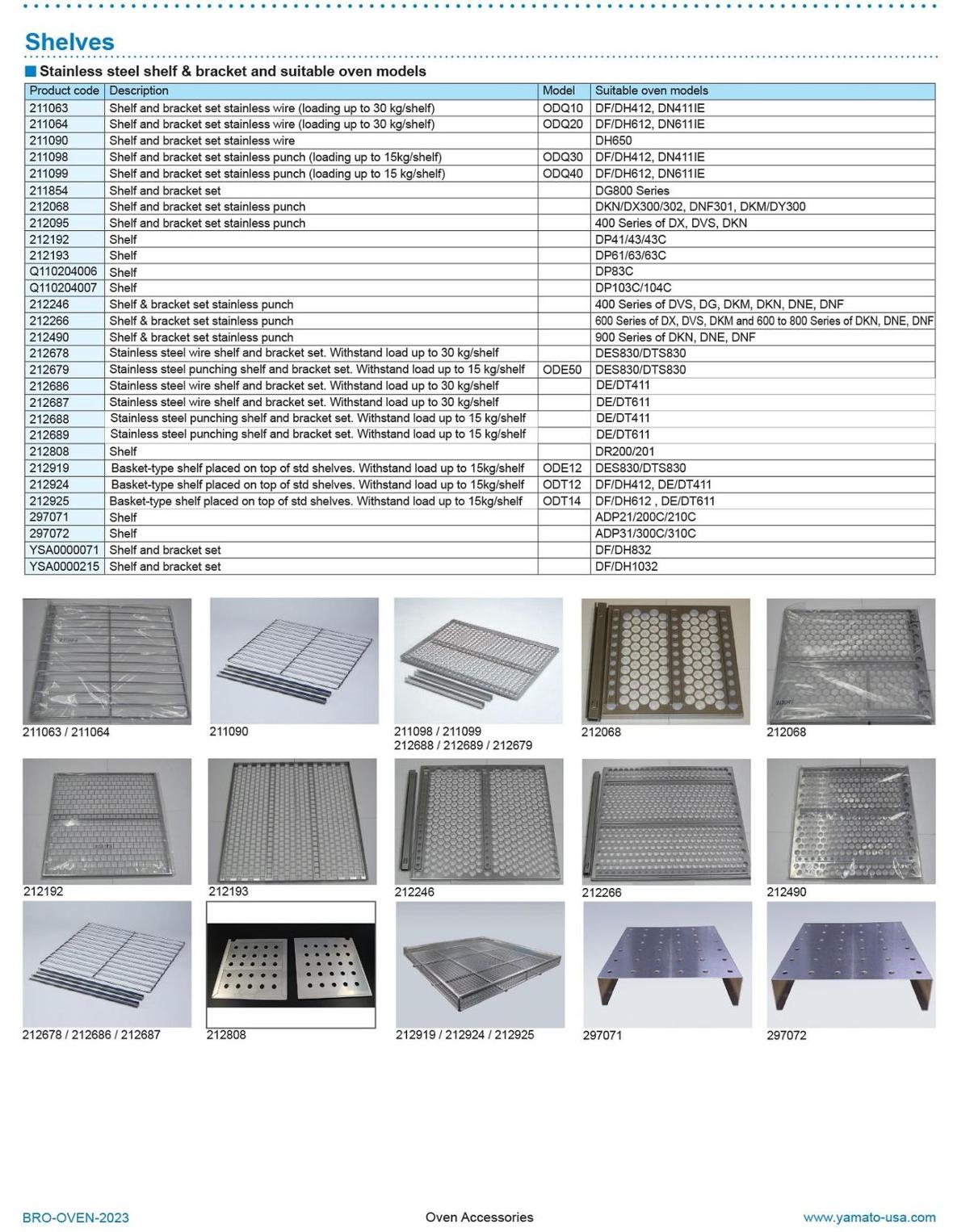

Oven Accessories
