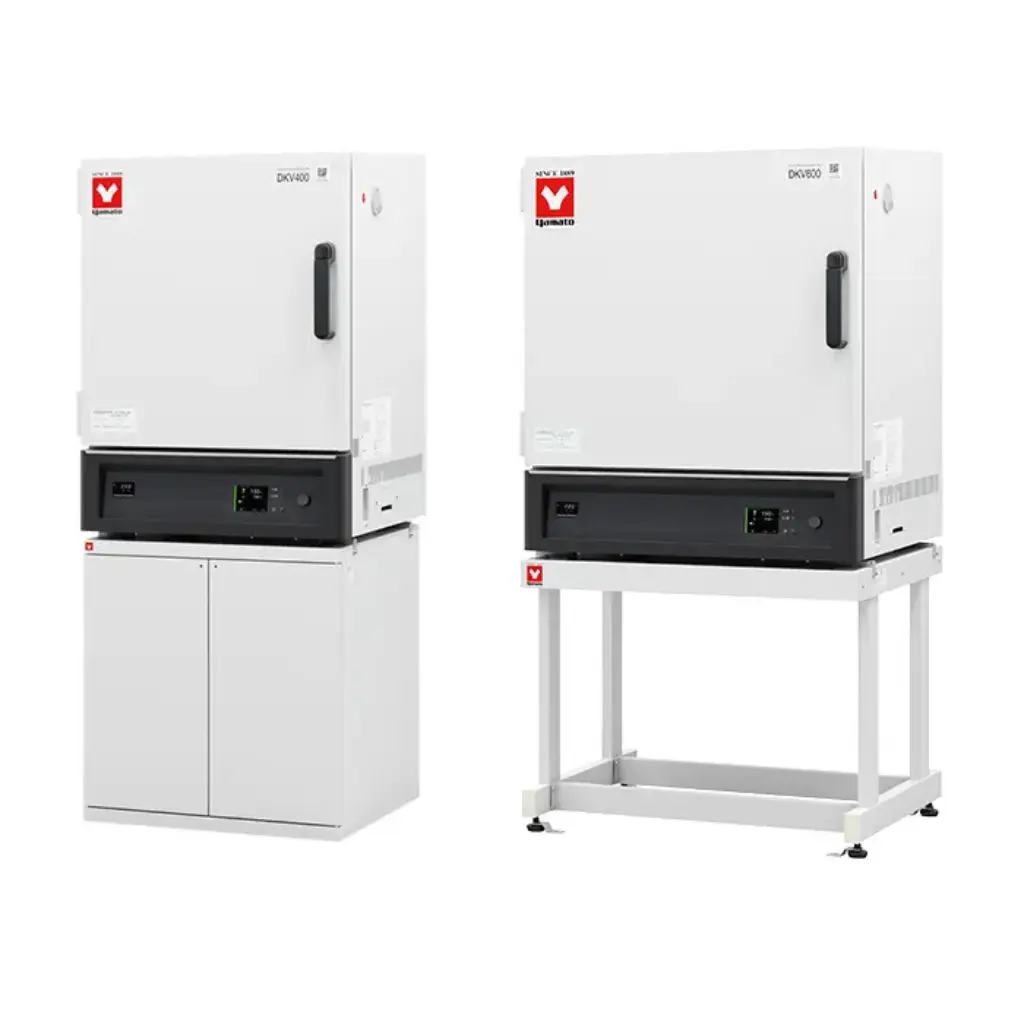

Yamato DKV Series Standard Programmable Forced Convection Ovens

Yamato DKV Series Standard Programmable Forced Convection Ovens

Yamato’s Bestseller! Programmable forced convection constant temperature ovens with extended functions and safety features

$ 4,370.00 $ 4,370.00 In stock
In Stock Usually ships in 1 week

Weight: 60.0 kg

$ 0.00

Model

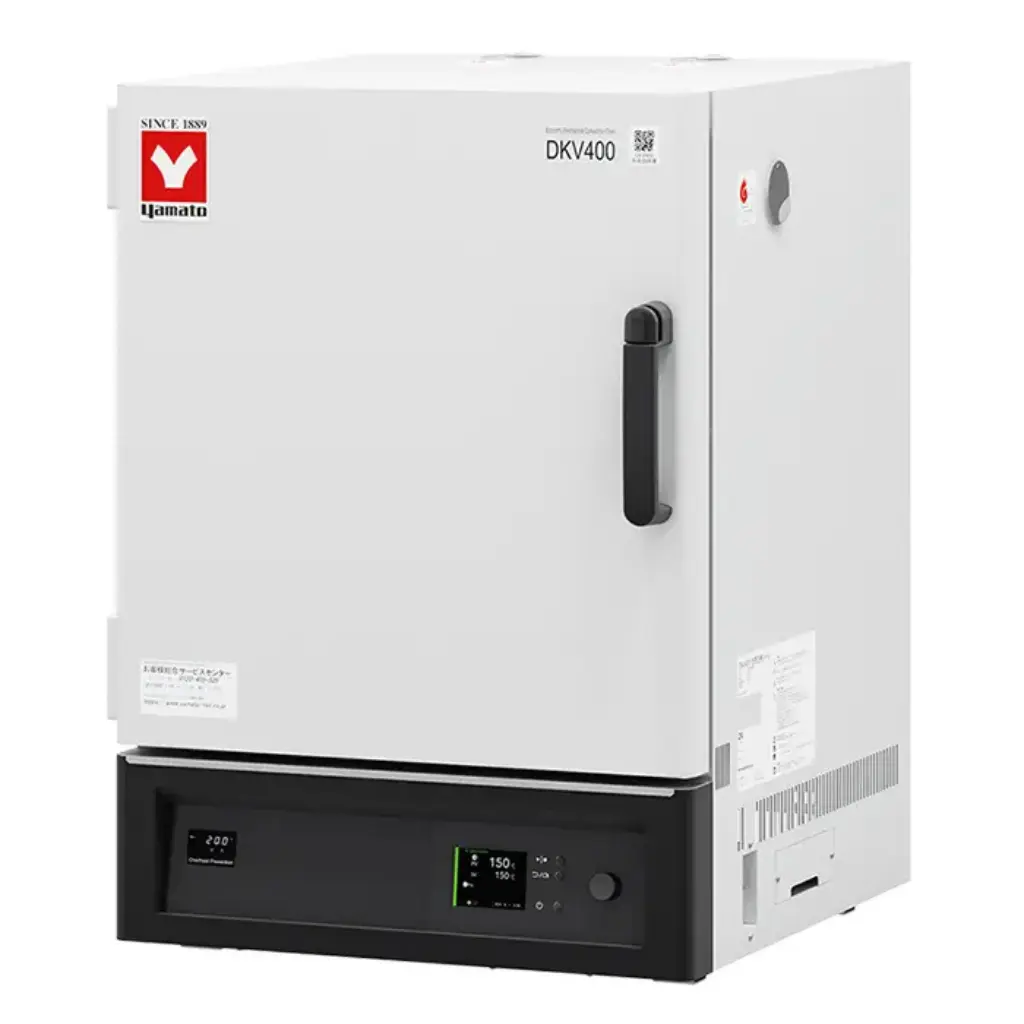

- [DKV400] DKV400 - 115V
- [DKV410] DKV410 - 220V

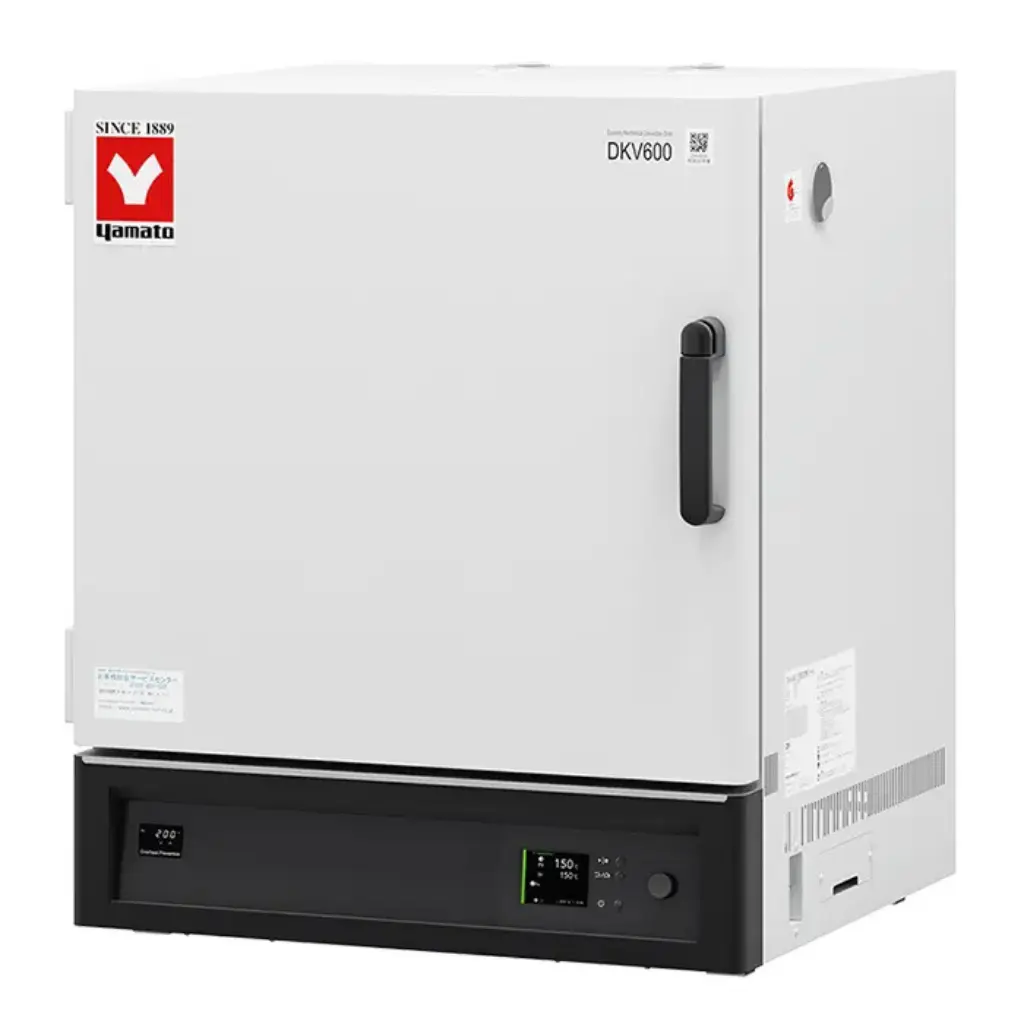

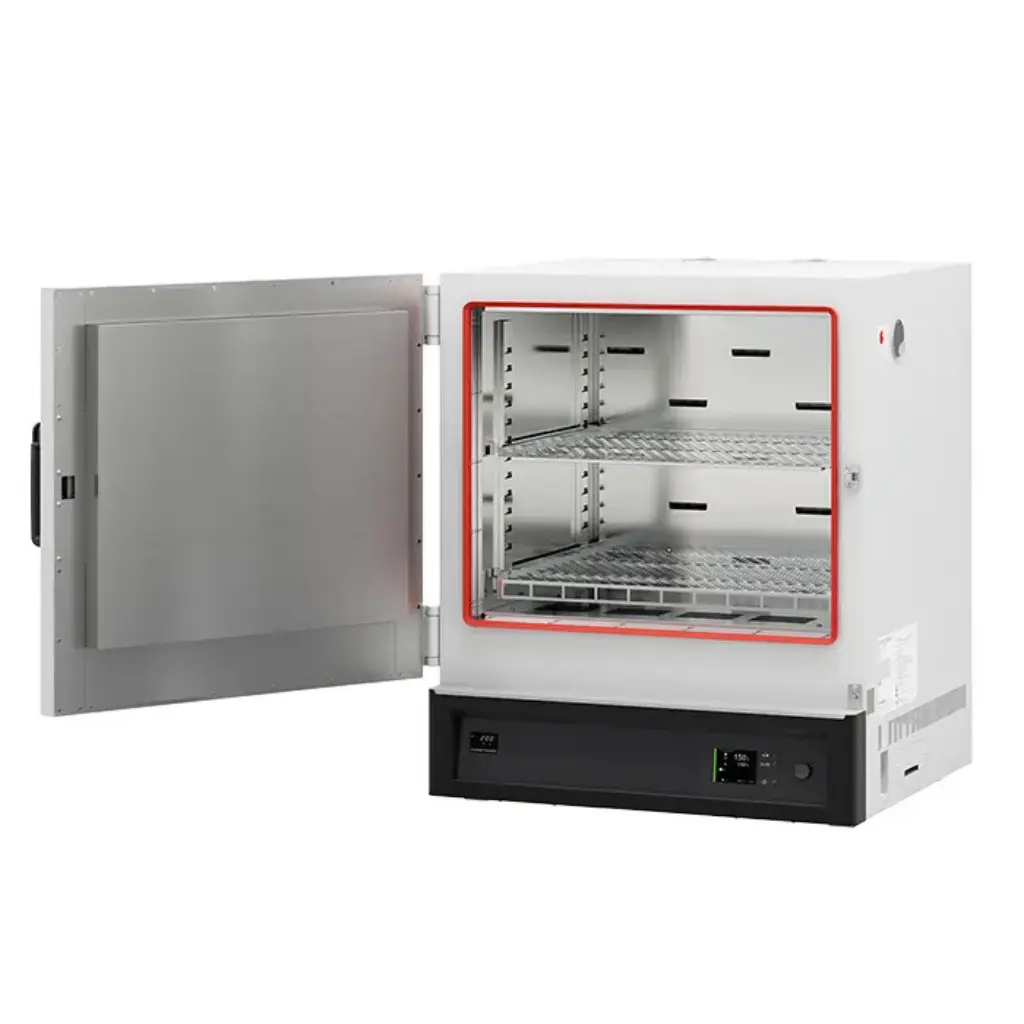

- [DKV600] DKV600 - 115V
- [DKV610] DKV610 - 220V

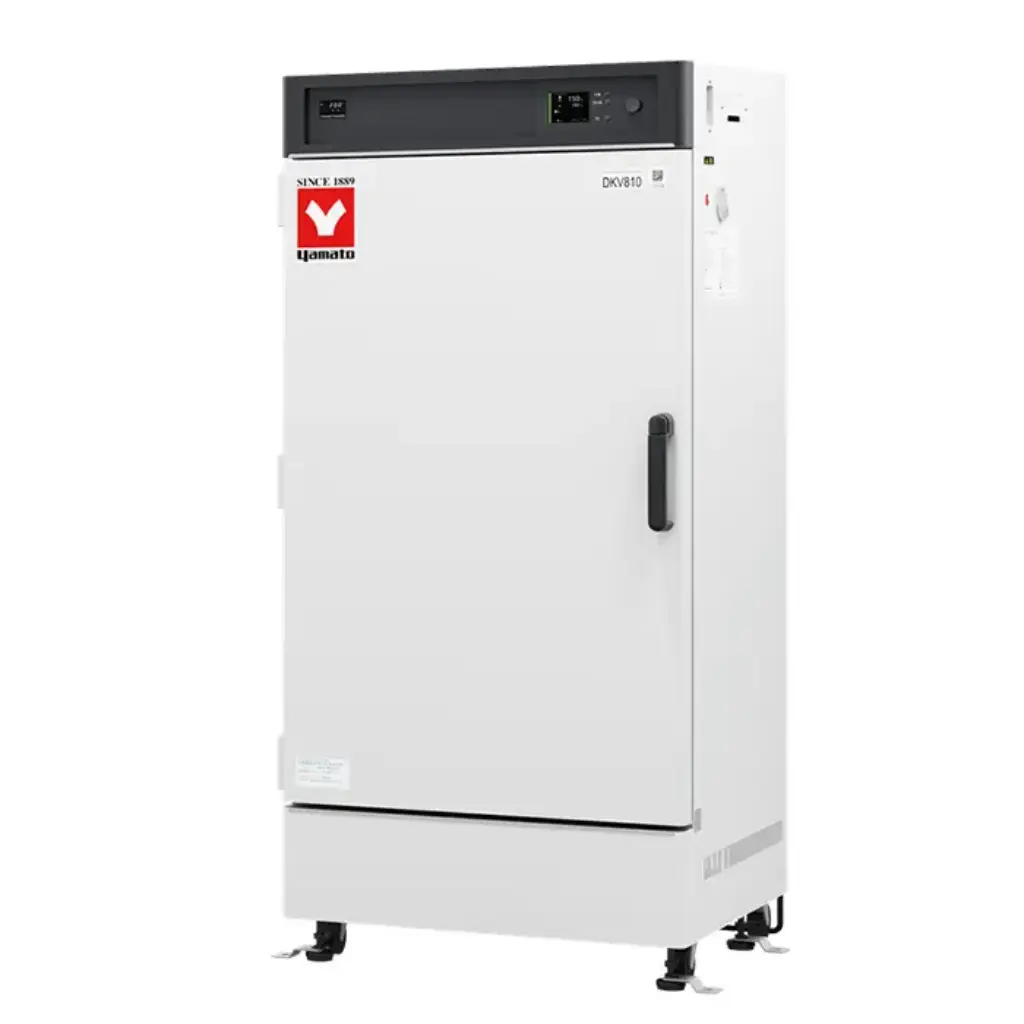

- [DKV810] DKV810 - 220V

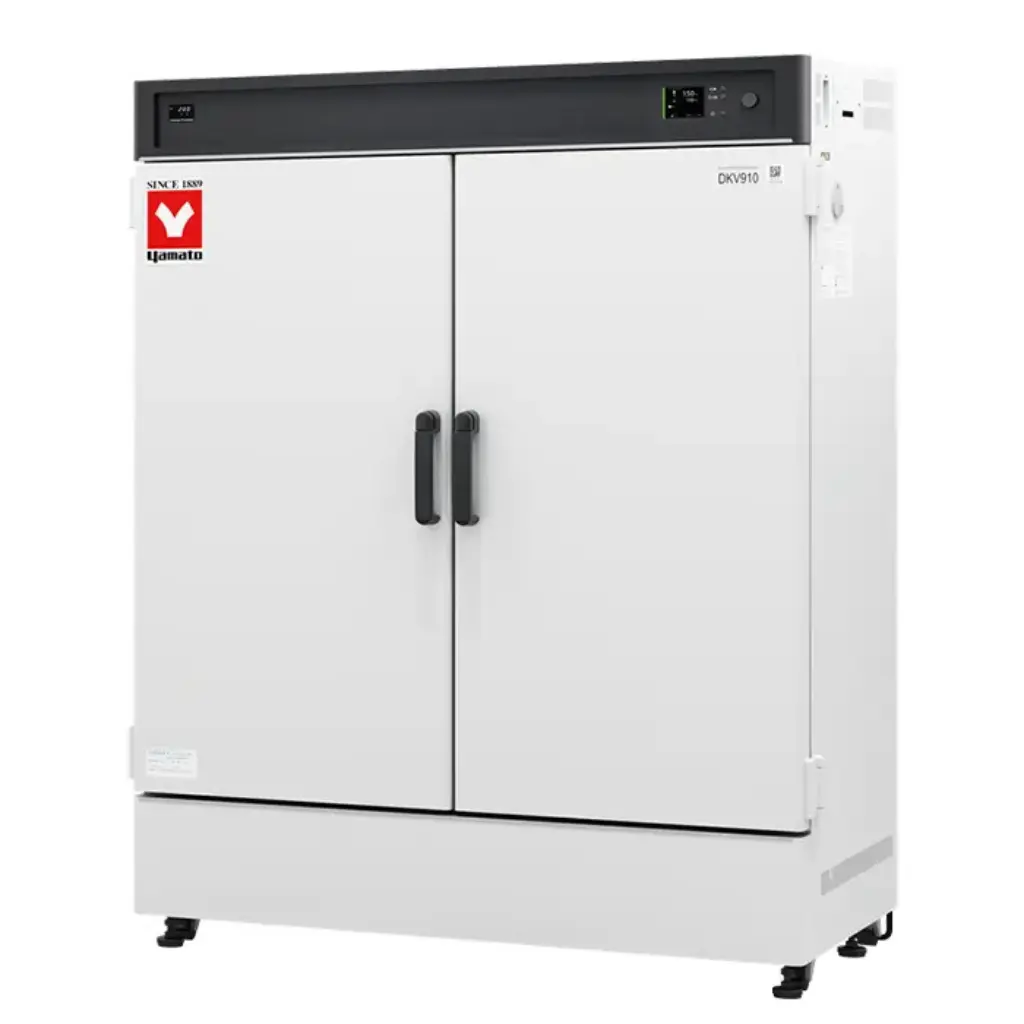

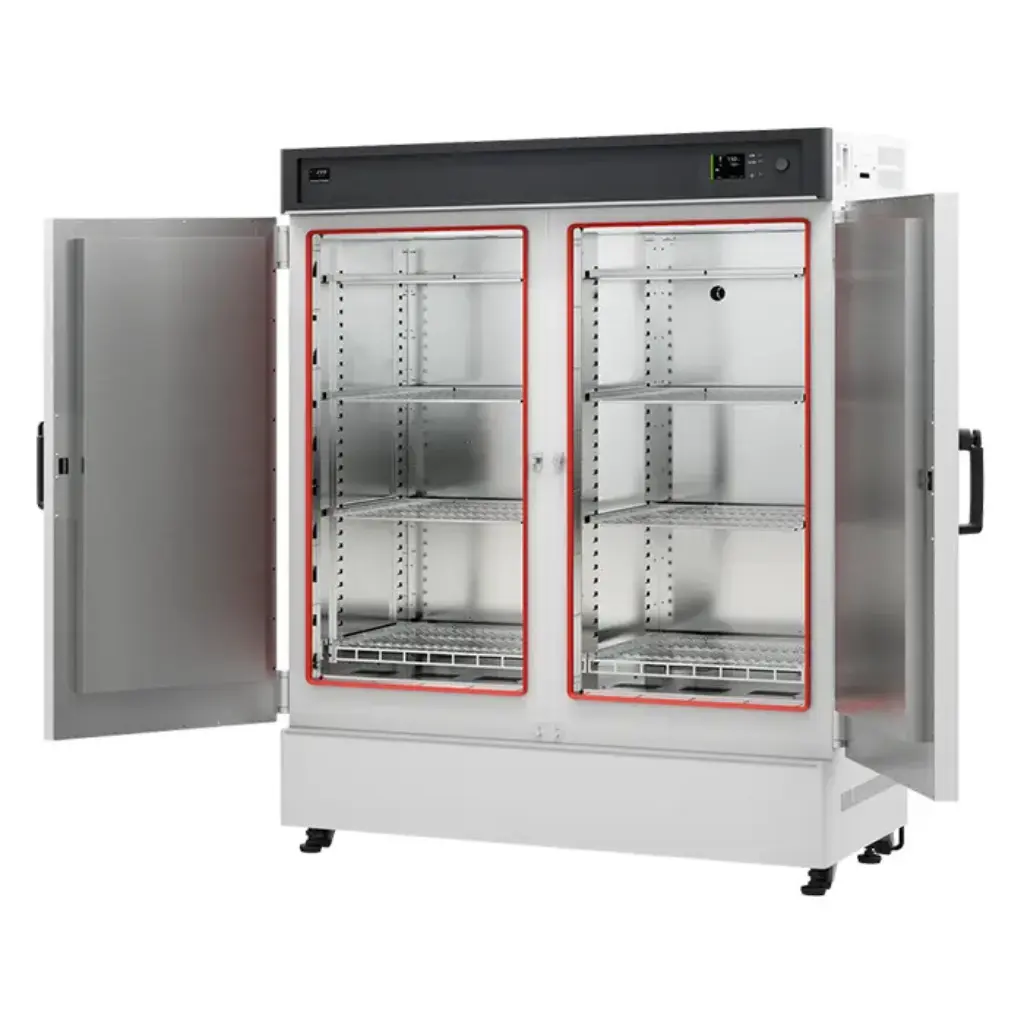

- [DKV910] DKV910 - 220V

This combination does not exist.

Add to cart Buy now

For more information please call +1 (860) 436-9221 or email us at [email protected]

Get the best price
for your organization today

DKV400/410/600/610/810/910

Features

Superior temperature accuracy
Easy to use, highly visible 3.5 in. color LCD controller

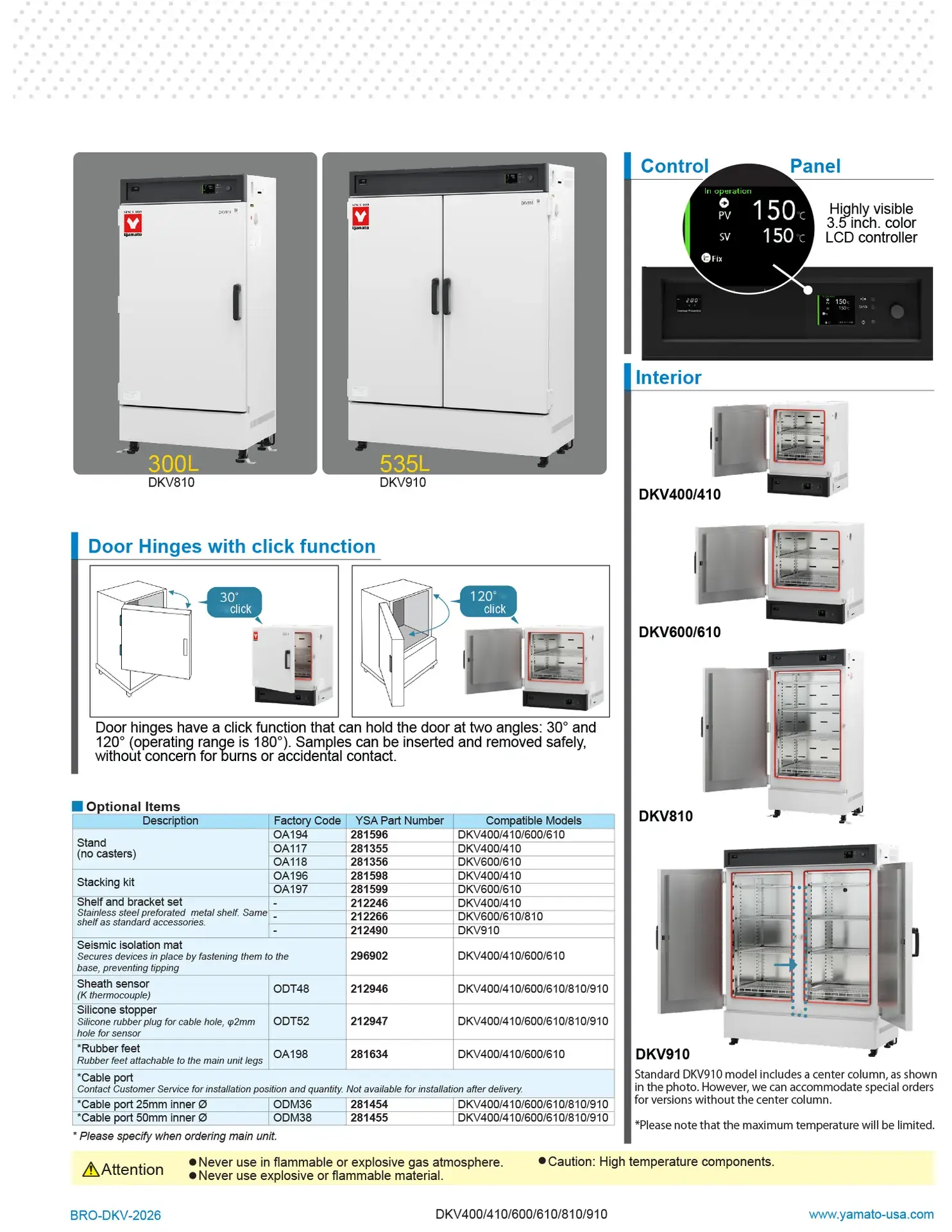

Door hinges with click function
Fixed temperature, Quick Auto-Stop / Auto-Stop / Auto-Start / Programmed Auto-Start
(Time and Clock Settings), Programmed (Time Settings) operations
Increased safety and self-diagnostic functions
User-friendly and easy to maintain
Built in cable and exhaust ports

Safety features

Self-diagnostic functions (temperature. sensor abnormal, heater disconnection, SSR-short, Automatic overheating prevention), Key lock function, Overheat prevention, Electric leakage breaker with over current protection

40 years as a leading scientific lab equipment provider in the United States.

All products come with a 1 year warranty.

Every product is made through environmentally conscious methods and remains eco-friendly all throughout its life cycle.

Model	DKV400	DKV410	DKV600	DKV610	DKV810	DKV910
Circulation method	Forced convection
Operating temp. range	Room temp. +10°C to 270°C				RT +10°C to 220°C
Temp. fluctuation	±.6°C (at 270°C)		±.5°C (at 270°C)		±.6°C (at 270°C)	±.6°C (at 220°C)
Temp. gradient	9°C (at 270°C)				11°C (at 270°C)	11°C (at 220°C)
Temperature rise rate	3.3°C / min		2.1°C / min		3.4°C / min	2.5°C / min
Temp. rise time	~75 min.		~115 min.		~75 min.	~80 min.
Temp. rise time	Chromium-free electrogalvanized steel sheet, baked coating
Chamber	Stainless steel
SUS tube heater	1.5kW		2.5kW		3.0kW
Cable port	Stainless steel tube heater
Exhaust port	33mm I.D. x 2 (top)				33mm I.D. x 2 (back)
Safety devices	Self-diagnostic functions (automatic overtemperature protection, temperature sensor error, SSR short circuit, heater disconnection, fan error, clock element error, main relay error, memory error, internal communication error) / independent overheat prevention device / door switch (door alarm) / overcurrent leakage breaker / fall prevention fitting (Model 810/910)
Controller type	VSD-1 Controller
Temp. control system	PID control by microcomputer
Temp. display	3.5-inch color LCD panel digital display
Timer / clock timer	1 minute to 99 hours 59 minutes / Date: hour: minute (up to 31 days later)
Operation modes	Fixed temperature / Timer: Hourly quick auto stop operation / Timer: Hourly auto stop operation / Timer: Hourly auto start operation / Program operation / Timer: Hourly program auto start operation
Additional functions	Calibration offset / Power failure return mode selection function / Timer Wait function / Security management function / Temperature upper/lower limit alarm function / Fan OFF delay function / Power failure alarm / External communication terminal (RS-485) / Temperature output terminal (4-20mA) / Time-up output terminal / Error output terminal / Recorder terminal / Program preview function / Operation trend function
Sensor	Temperature controller / independent overheat prevention device: K thermocouple
Safety devices	Self diagnosis functions (temp. sensor abnormal, Heater disconnection, SSR- short, Automatic overheating prevention), Key lock function, Overheat prevention, Electric leakage breaker with over current protection
Internal dimensions (W×D×H)	450×450×450 mm		600×500×500 mm		600×500×1000 mm	1090×500×1000 mm
External dimensions (W×D×H)	580×635×830 mm		730×685×880 mm		730×685×1610 mm	1220×685×1610 mm
Internal capacity	90L		150L		300L	545L
Chamber shelf load	~15kg/shelf
Chamber load capacity	~30kg		~60kg		~120kg
Number of shelves / pitch	11 steps / 30mm		13 steps / 30mm		29 steps / 30mm	29 / 30mm×2 columns
Power supply 50/60Hz Rated current	115V, 13.5A with plug	220V, 7.5A no plug, round terminal	115V, 13.5A with plug	220V, 7.5A no plug, round terminal	Single phase 220V, 12A no plug, round terminal	Single phase 220V, 14.5A no plug, round terminal
Weight	~60kg		~75kg		~120kg	~195kg
Weight	1 pc. / 2 pcs.				3 pc. / 6 pcs.	6 pc. / 12 pcs.
Weight	-		-		4 pcs (fixing hole diameter Φ14 M12 recommended)

Click on the links below to download the associated PDFs.

Oven Overview

DKV Series Catalog

DKV Series Intriduction Brochure

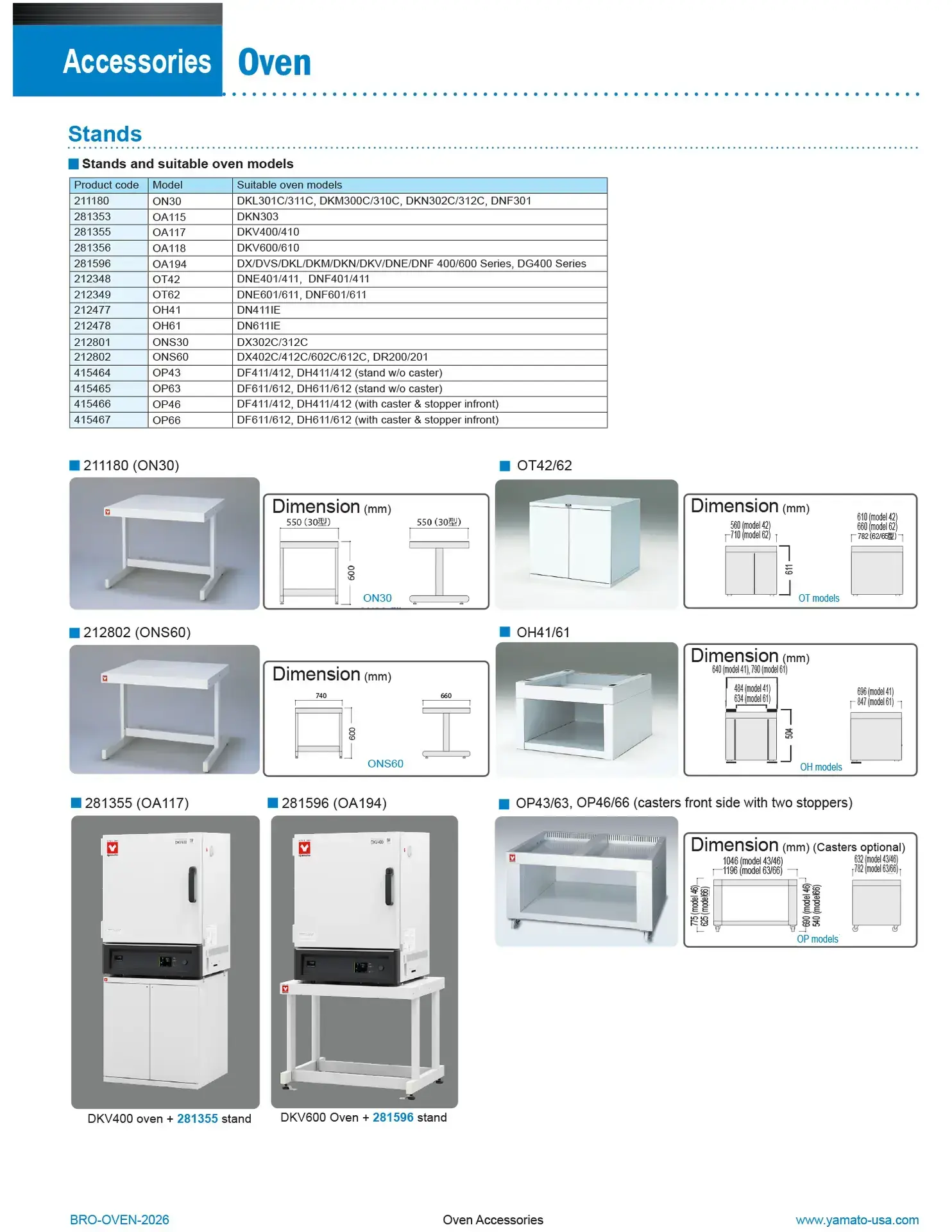

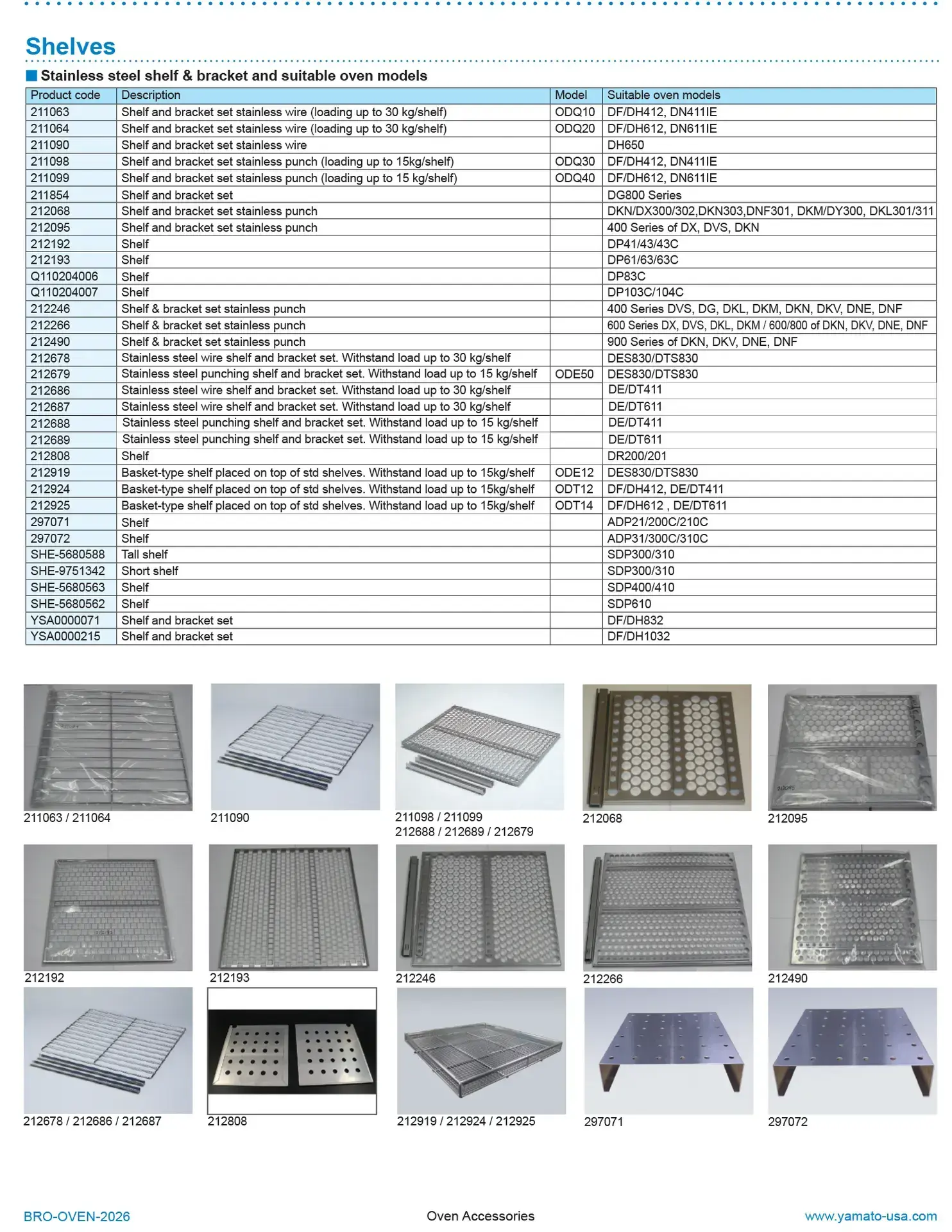

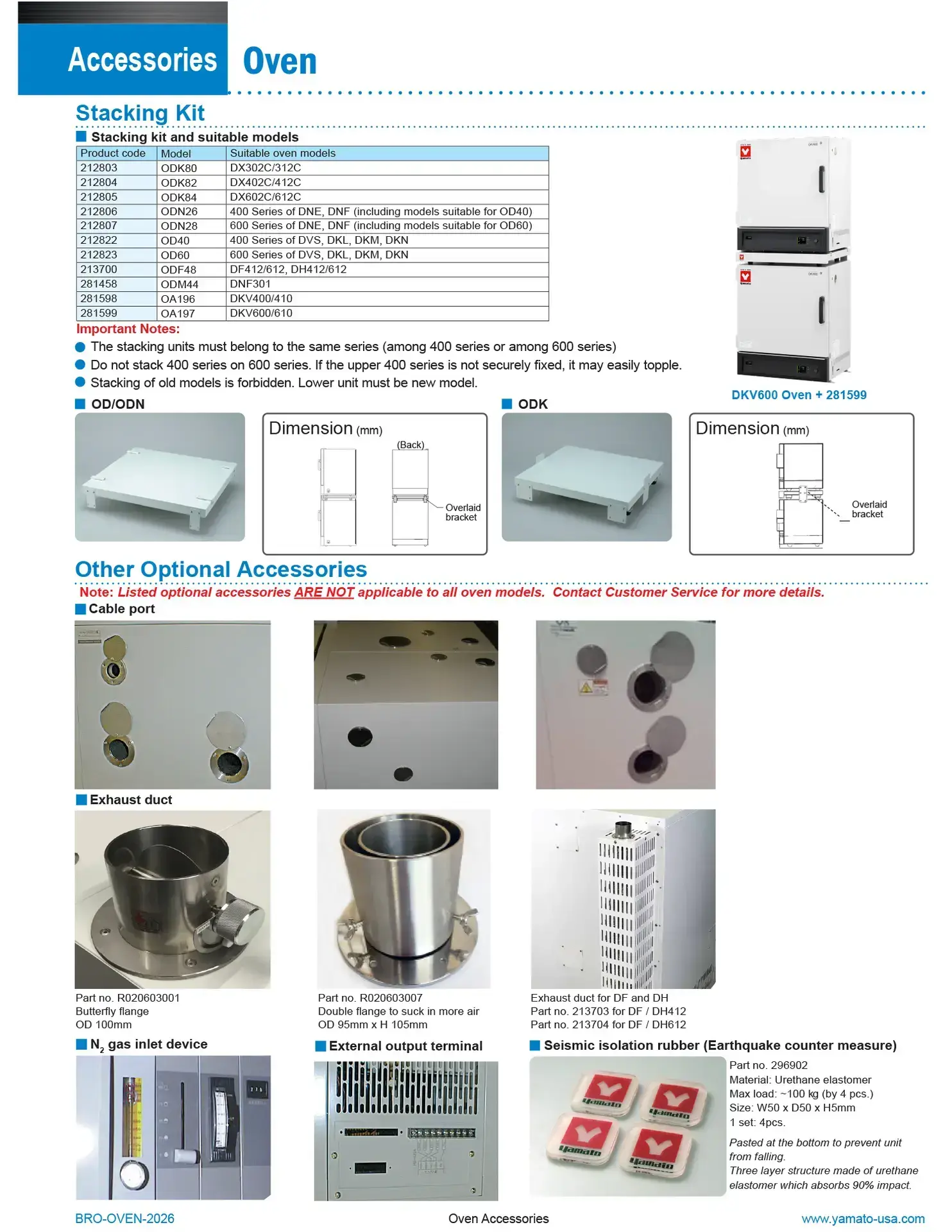

Oven Accessories
