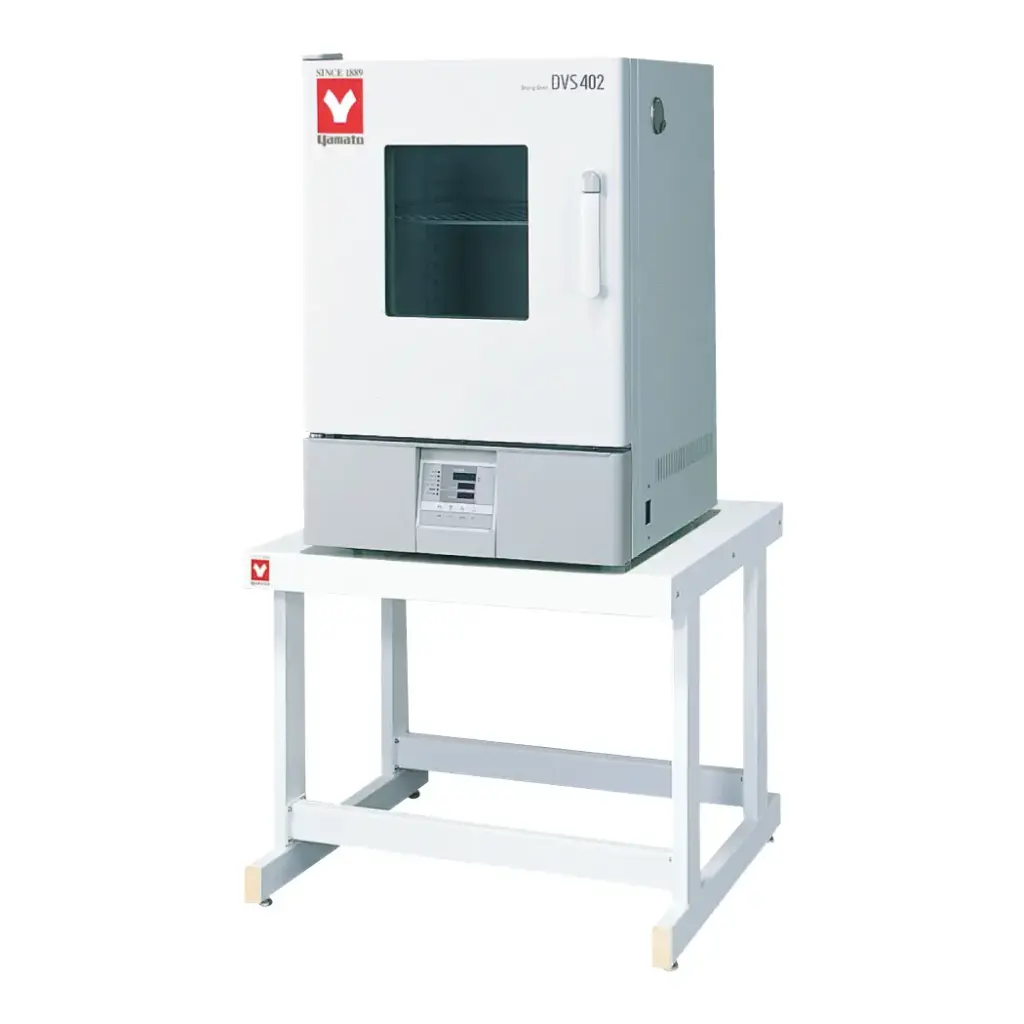

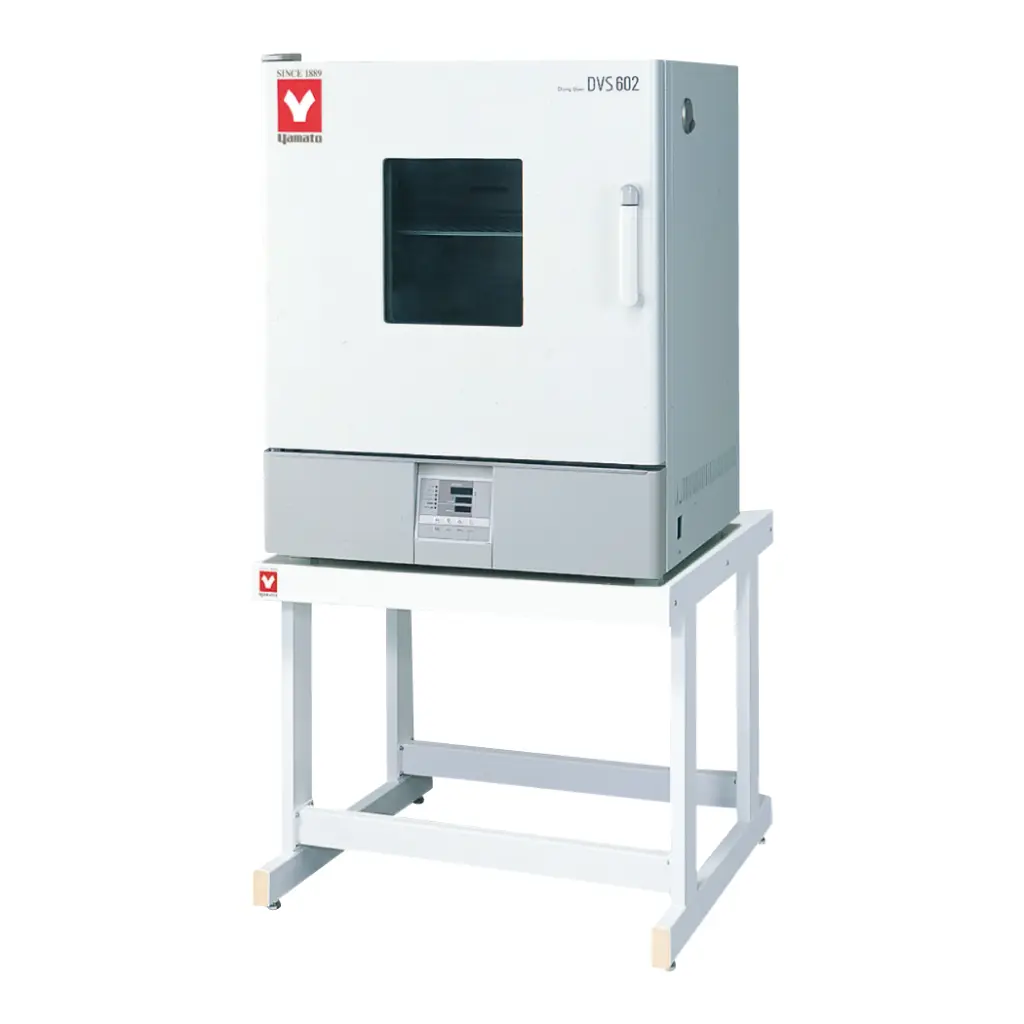

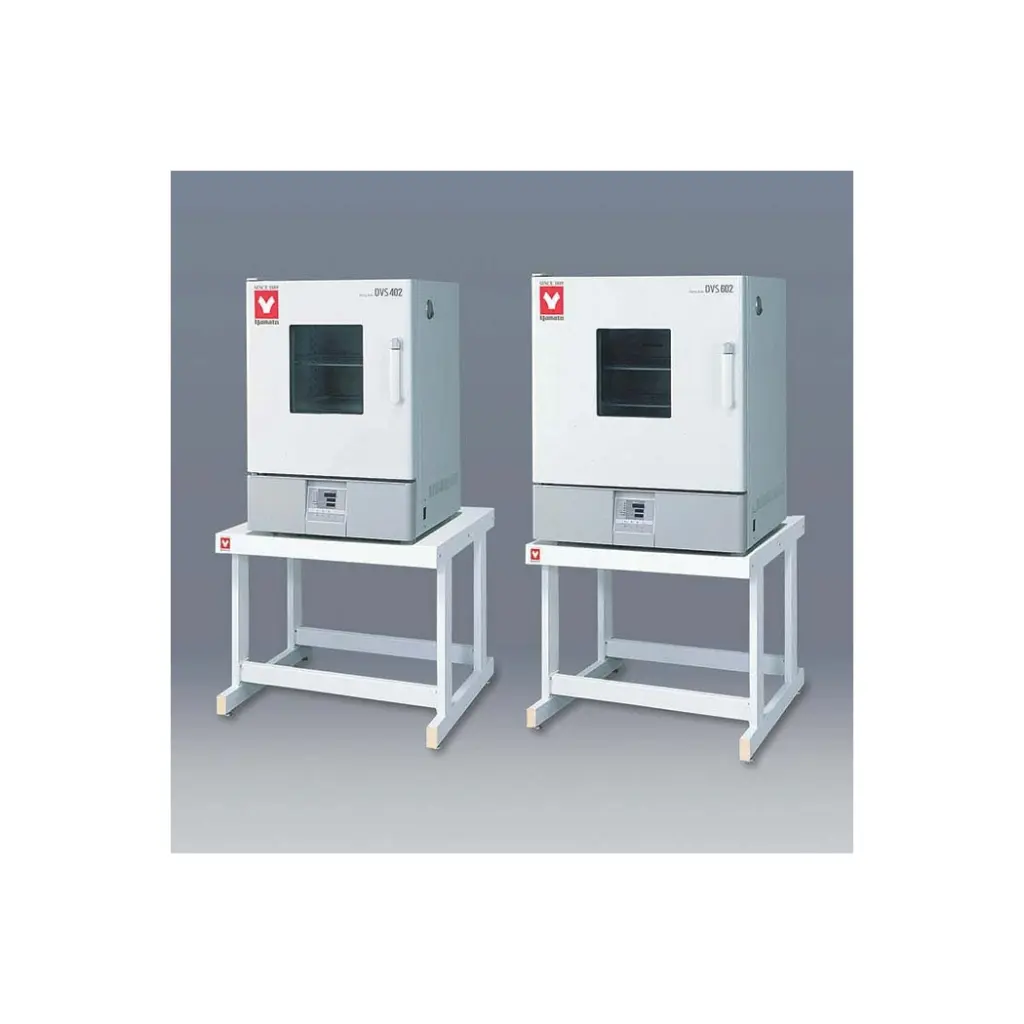

Yamato DVS Series Programmable Natural Convection Ovens

Programmable natural convection constant temperature drying ovens incorporating programmable operation functions and enhanced safety features and operability

$ 2,570.00 $ 2,570.00 In stock
In Stock Usually ships in 1 week

$ 0.00

Model
- [797059926299] DVS402C - 115V
- [797059926305] DVS412C - 220V
- [797059926312] DVS602C - 115V
- [797059926329] DVS612C - 220V

This combination does not exist.

Add to cart Buy now Instant Quote

For more information please call +1 (860) 436-9221 or email us at [email protected]

Get the best price
for your organization today

DVS402C/412C/602C/612C

Operation and functions

Excellent temperature accuracy
Easy to use and maintain.
Equipped with a 6 pattern PID program controller with easy program settings (30 steps x 1, 15 steps x 2, 10 steps x 3)
Simultaneous display of set constant and measured temperature.
Quick Auto stop, Auto Stop, Auto Start operations.
Increased safety and self-diagnostic functions
Calibration off-set function

Safety features

Self-diagnostic functions (Temp. sensor abnormal, Heater disconnection, Internal communication error, temperature input circuit abnormality, Automatic overheat prevention function, SSR-short), Overheat prevention, Electric leakage breaker with over current protection.

40 years as a leading scientific lab equipment provider in the United States.

All products come with a 1 year warranty.

Every product is made through environmentally conscious methods and remains eco-friendly all throughout its life cycle.

Model	DVS402C DVS412C	DVS602C DVS612C

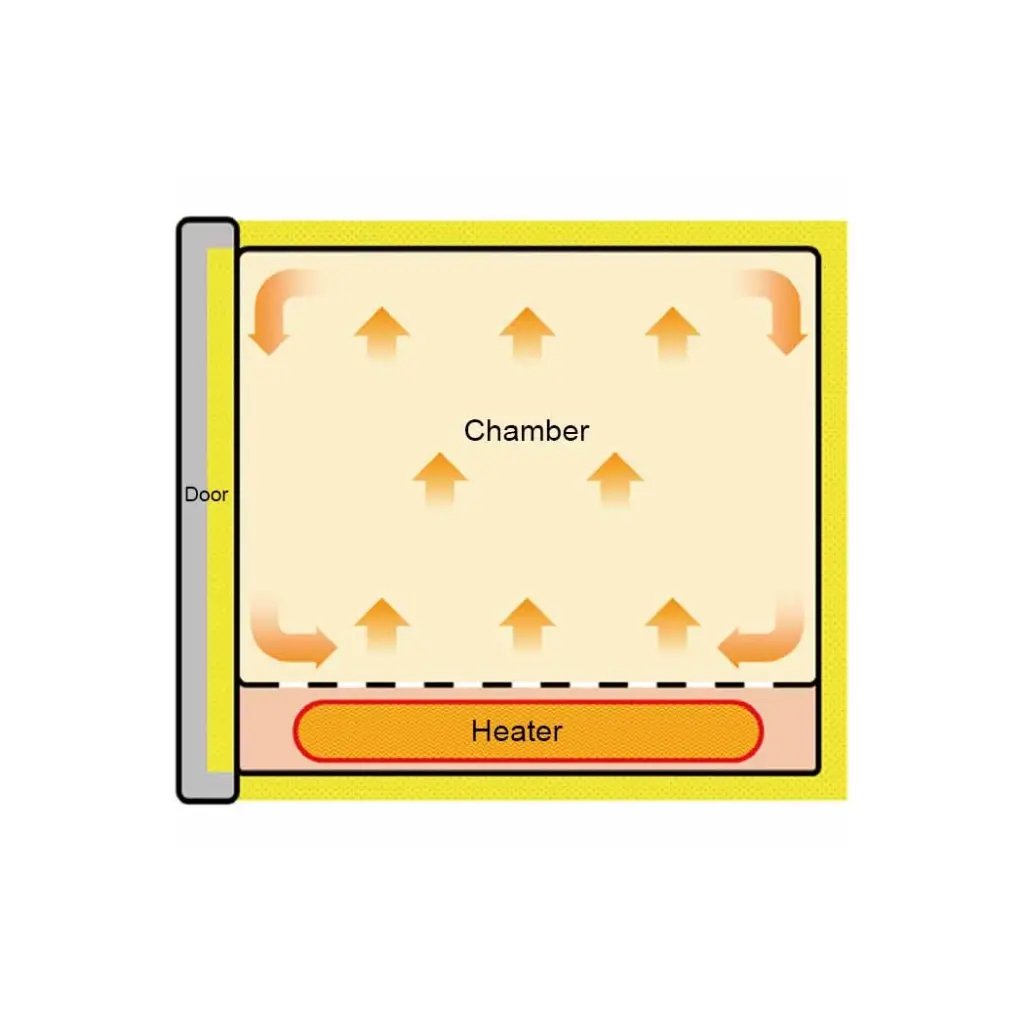

Circulation method	Natural convection
Operating temp. range	Room temp.+5 to 260°C
Temp. control accuracy	±1.0°C (at 260°C)
Temp. distribution accuracy	±5.0°C (at 260°C)
Max. temp. reaching time	~90 min. (Room temp. +5°C to 260°C)

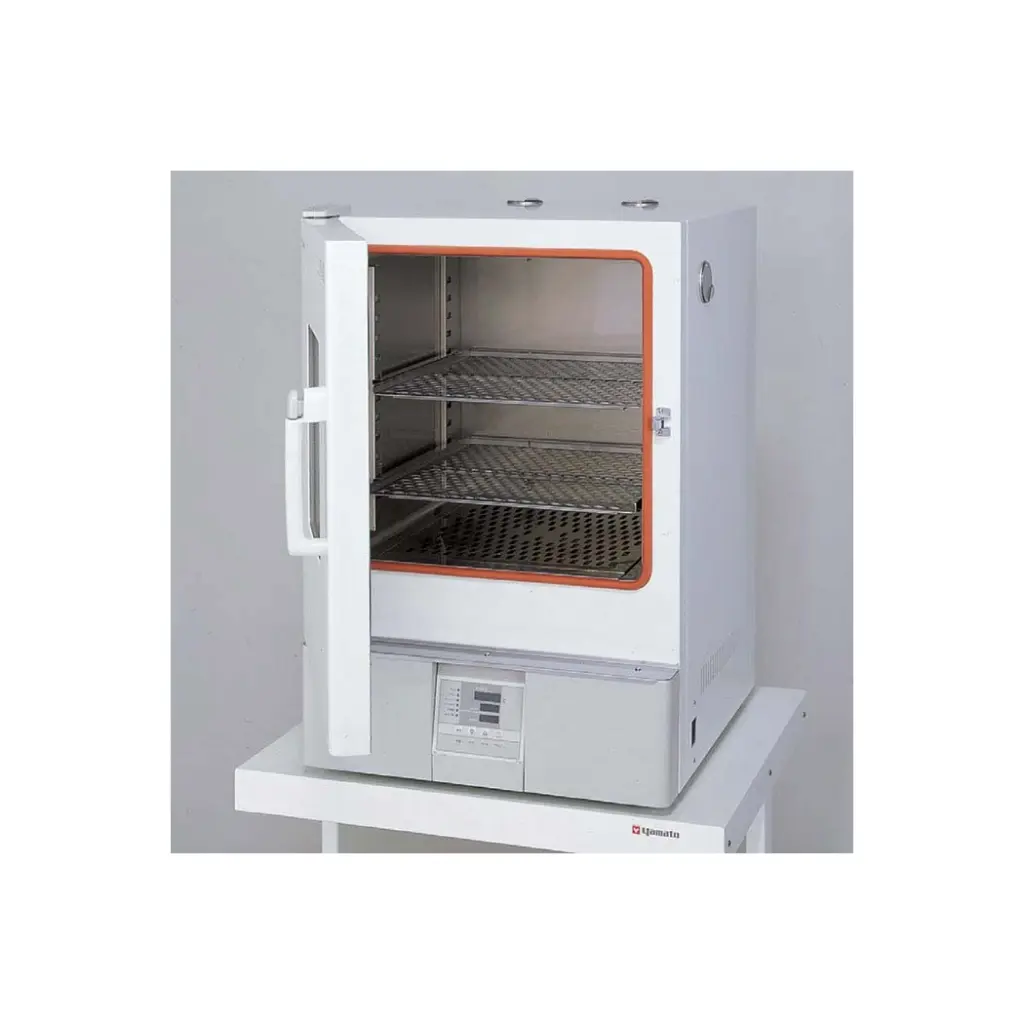

Interior material	Stainless steel
Exterior material	Cold rolled steel plate with melamine resin baking finish
Heat insulating material	Glass wool
Heater	Stainless pipe heater / 1.2kW	Stainless pipe heater / 1.36kW
Observation window	250×280 mm Chemically strengthened glass x 3

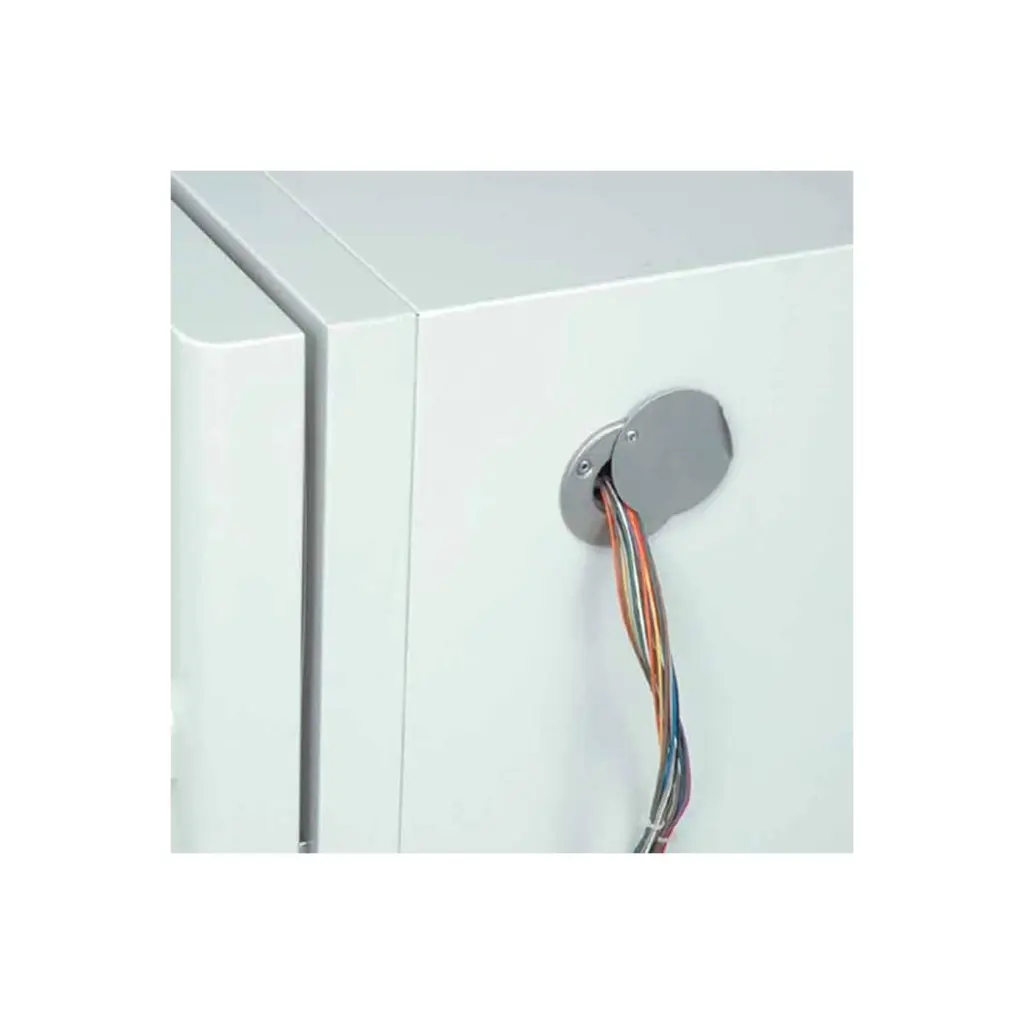

Cable hole	30 mm l.D.×1 pcs. (right side)

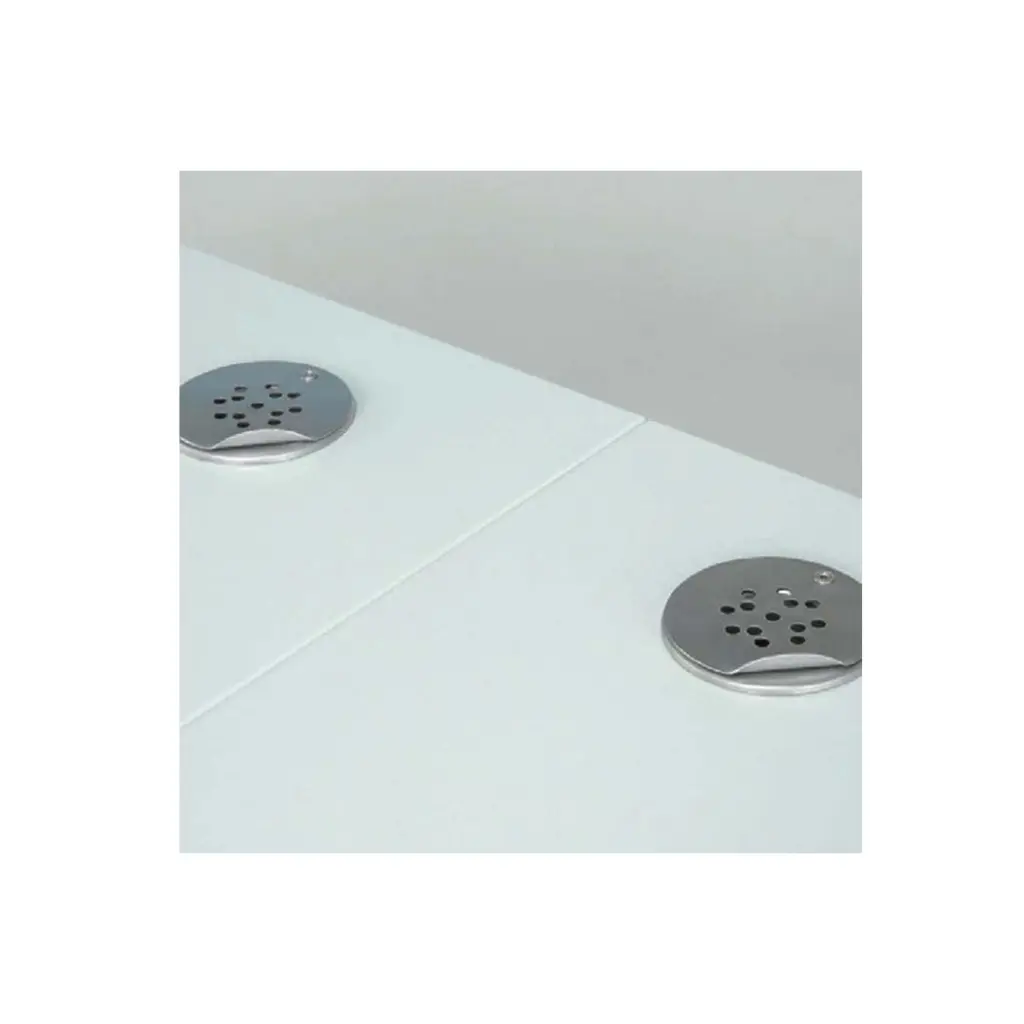

Exhaust port	30 mm l.D.×2 pcs. (on top)
Temp. controller	3 patterns program controller, PID control by microprocessor
Temp. setting method	Operation menu key and Digital setting by ▲/▼ key

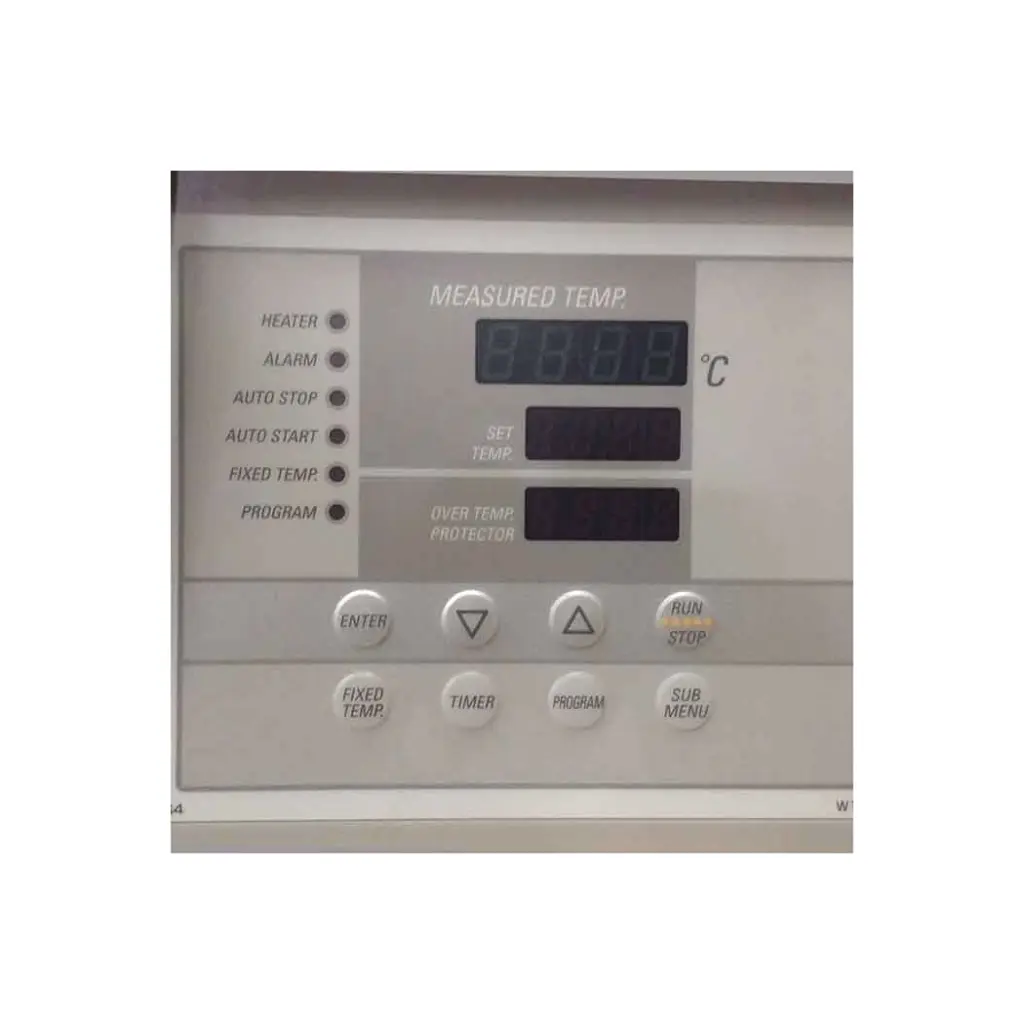

Temp. display method	Measurement temp. : Digital display by green LED / Setting temp. : Digital display by red LED
Timer	1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs. 50 min.
Operation function	Fixed temperature operation, Program operation, Auto start, Auto stop, Quick Auto-stop
Program mode	Program operation: 6 pattern, 30 steps (30 steps×1, 15 steps×2, 10 steps×3)
Additional functions	Calibration off-set function, Key lock, Uninterruptible power for memory, Pattern repeat function
Heater circuit control	SSR control
Sensor	K-thermocouple
Safety device	Self diagnostic functions (temp. sensor abnormal, Heater disconnection, SSR- short, Memory abnormal, Automatic overheating prevention), Overheat prevention, Electric leakage breaker with over current protection
Internal dimensions (W×D×Hmm)	450×490×450	600×540×500
External dimensions (W×D×Hmm)	560×601×820	710×651×870
Internal capacity	99L	162L
Shelf plate load	~15kg / pcs.
Shelf rest step number / pitch	9 steps / 30mm	13 steps / 30mm
Power source 50/60Hz	AC115V 12A (with plug) AC220V 6.5A (no plug, round terminal)	AC115V 13.5A (with plug) AC220V 7.5A (no plug, round terminal)
Weight	~48kg	~63kg
Included accessories	Shelf plate and brackets
Shelf plate / Shelf bracket	Stainless steel, 2 pcs. / 4 pcs.

Click on the links below to download the associated PDFs.

Oven Overview

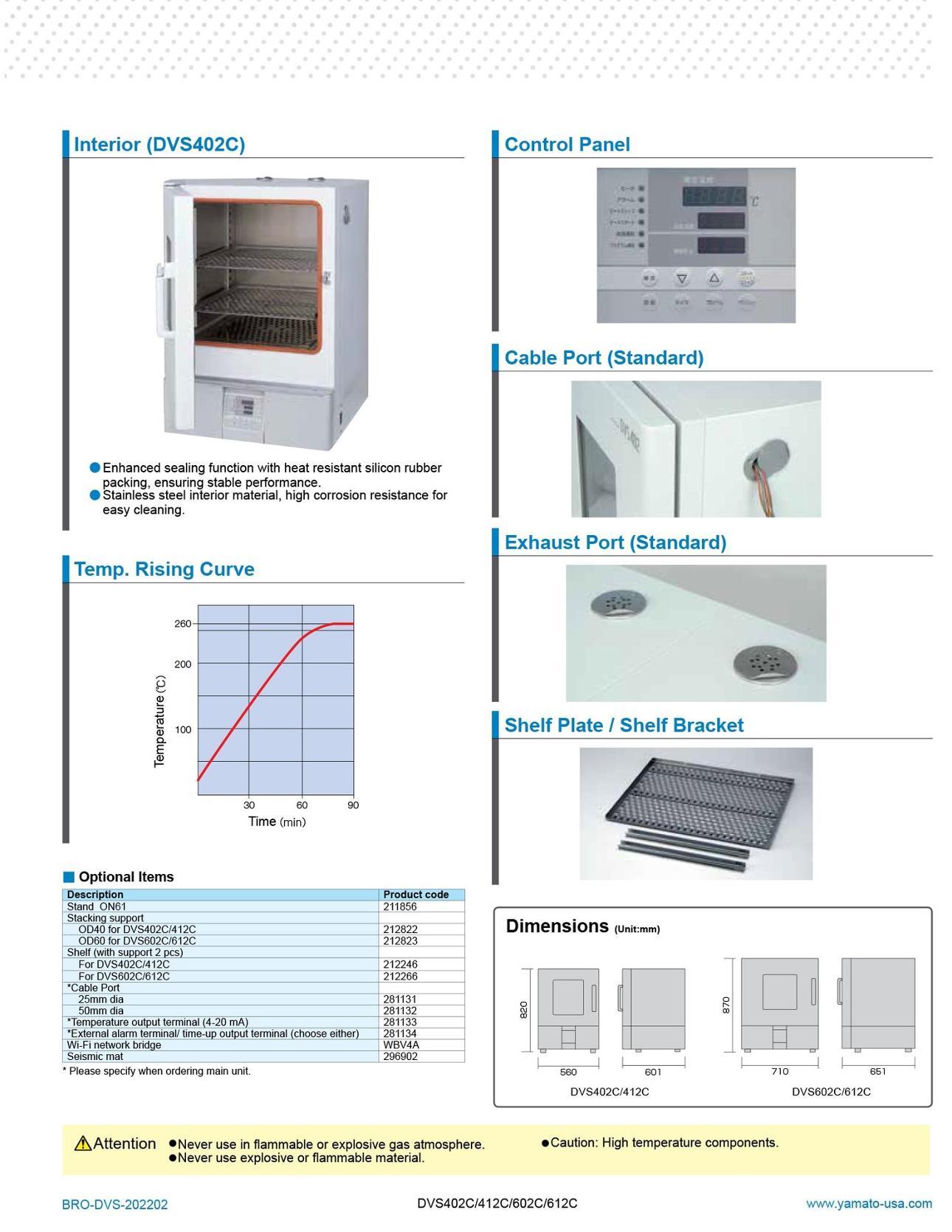

DVS Series Catalog

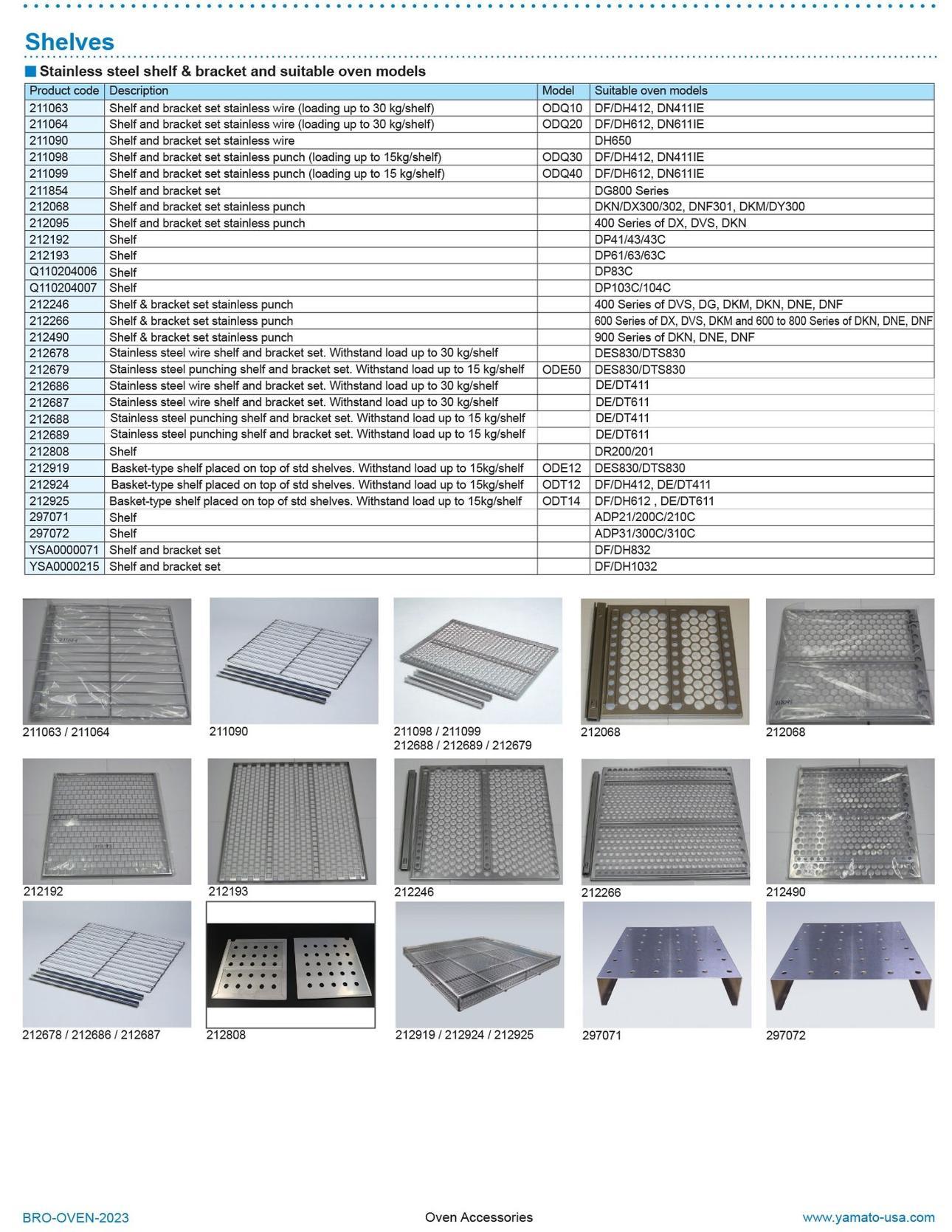

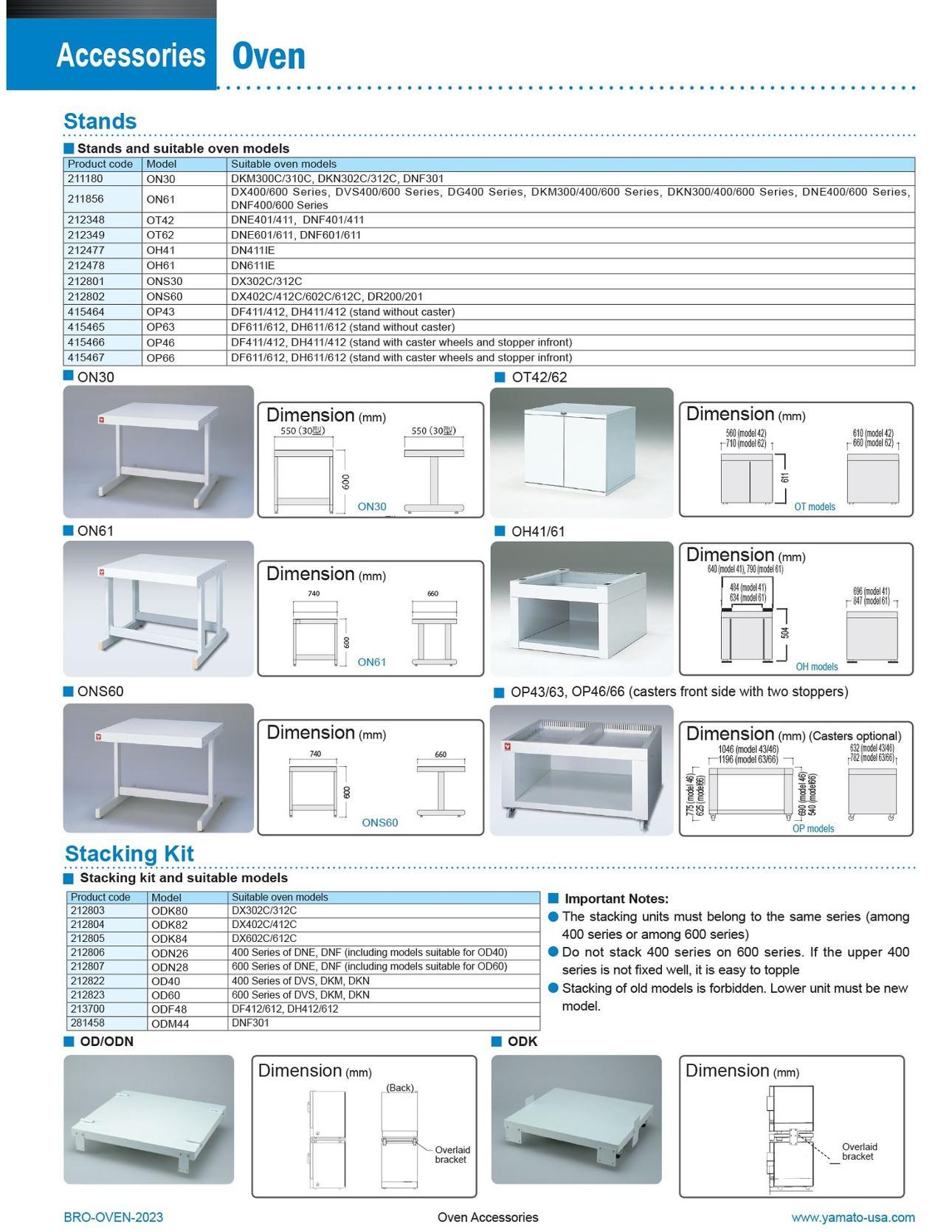

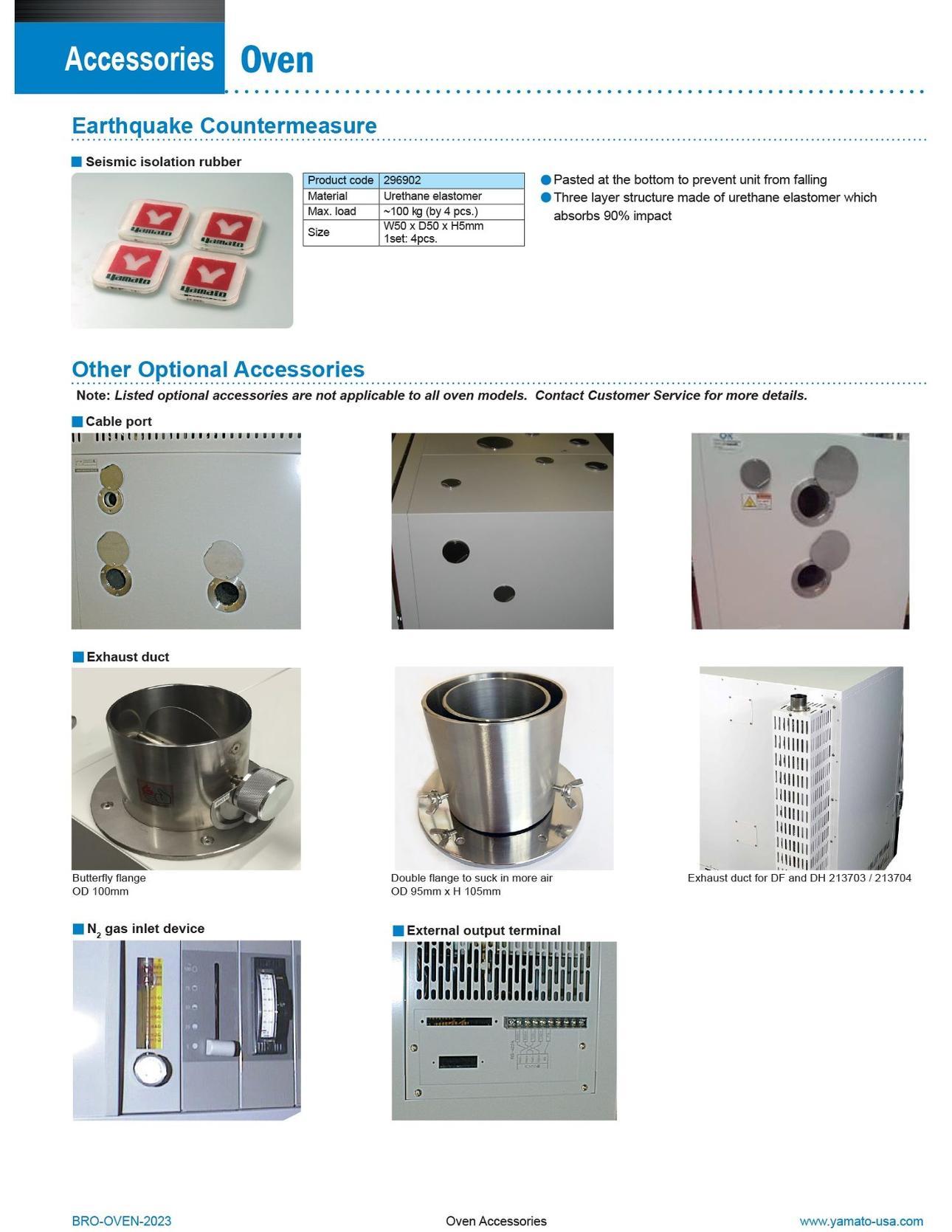

Oven Accessories
