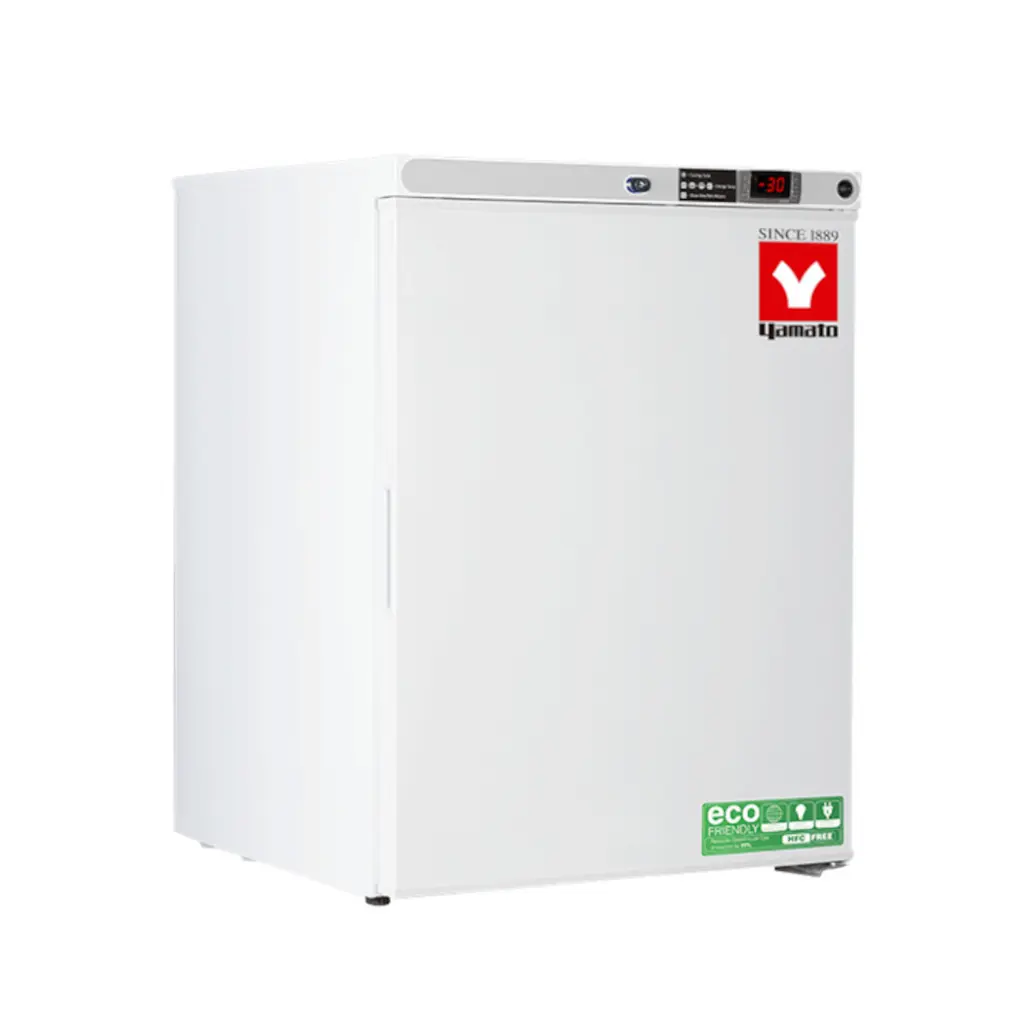

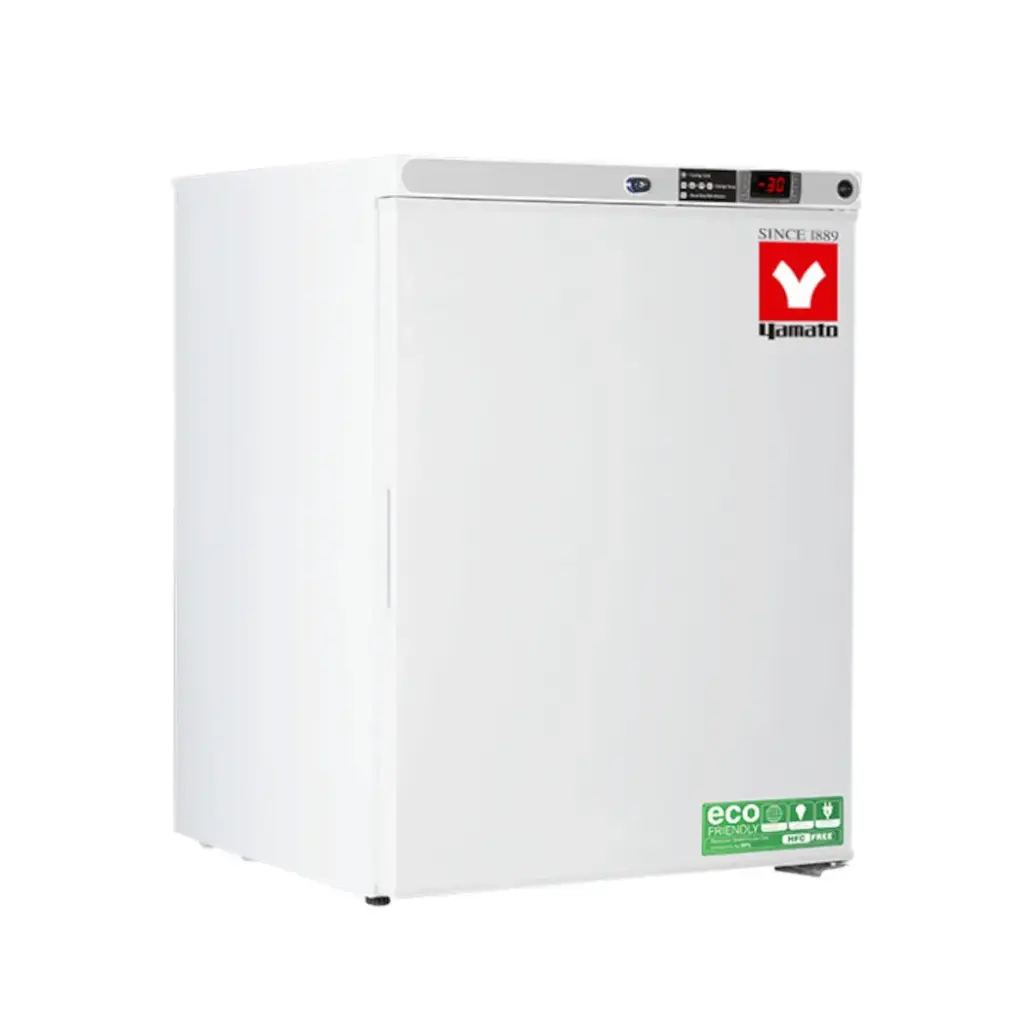

Yamato UCF Series Undercounter & Countertop Freezers

https://www.scilogex.com/web/image/product.template/3599/image_1920?unique=b7a28ad

$ 2,975.00 2975.0 USD $ 2,975.00 In stock
In Stock

$ 0.00

Currently Out-of-Stock

  • Model

This combination does not exist.

Contact Us
Request a Quote
In Stock



For more information please call +1 (860) 436-9221 or email us at [email protected]

Share

Features


Security Door

CFC & HCFC free

Digital Display

Low Energy Consumption

High/Low Temperature Alarm

Small Footprint
40 years as a leading scientific lab equipment provider in the United States.
All products come with a 1 year warranty.
Every product is made through environmentally conscious methods and remains eco-friendly all throughout its life cycle.

​Technical Specification

Model UCF101A UCF101B
Capacity 90L / 3.2 cu.ft. 113L / 4 cu.ft.
Door Single solid, lockable (keyed)
Temperature range -10°C to -25°C / +14°F to -13°F -30°C to -40°C / -22°F to -40°F
Display type Microprocessor, digital
Alarms Hi/Low temperature, door ajar, power failure, low battery sensor failure, USB failure
Port hole (diameter) 1" 1/2" rear
Storage 2 fixed shelves, base shelf, drawers 3 adjustable
Casters 2 rear, with leveling feet
Insulation US EPA and SNAP approved
Refrigerant R600a R290
Compressor Hermetic compressor
Air circulation Direct cooling
Defrost Manual
Exterior construction Painted steel
Internal dimension (WxDxH) 19.5” x 19.25” x 20.75”
50 x 49 x 53 cm		 20” x 19.5” x 24.25”
50 x 49 x 61 cm
External dimensions
(WxDxH)		 27.75” x 27.75” x 34”
760 x 70 x 86 cm		 24” x 24” x 33”
61 x 61 x 83 cm
Weight 165 lbs. 150 lbs.
Voltage 115V, 60 Hz, 1 phase
Amperage 15 amps dedicated
Supply plug
 NEMA 5-15
Optional accessories Chart recorder, cold safety gloves


Downloads

UCF Series Undercounter & Countertop Freezers
