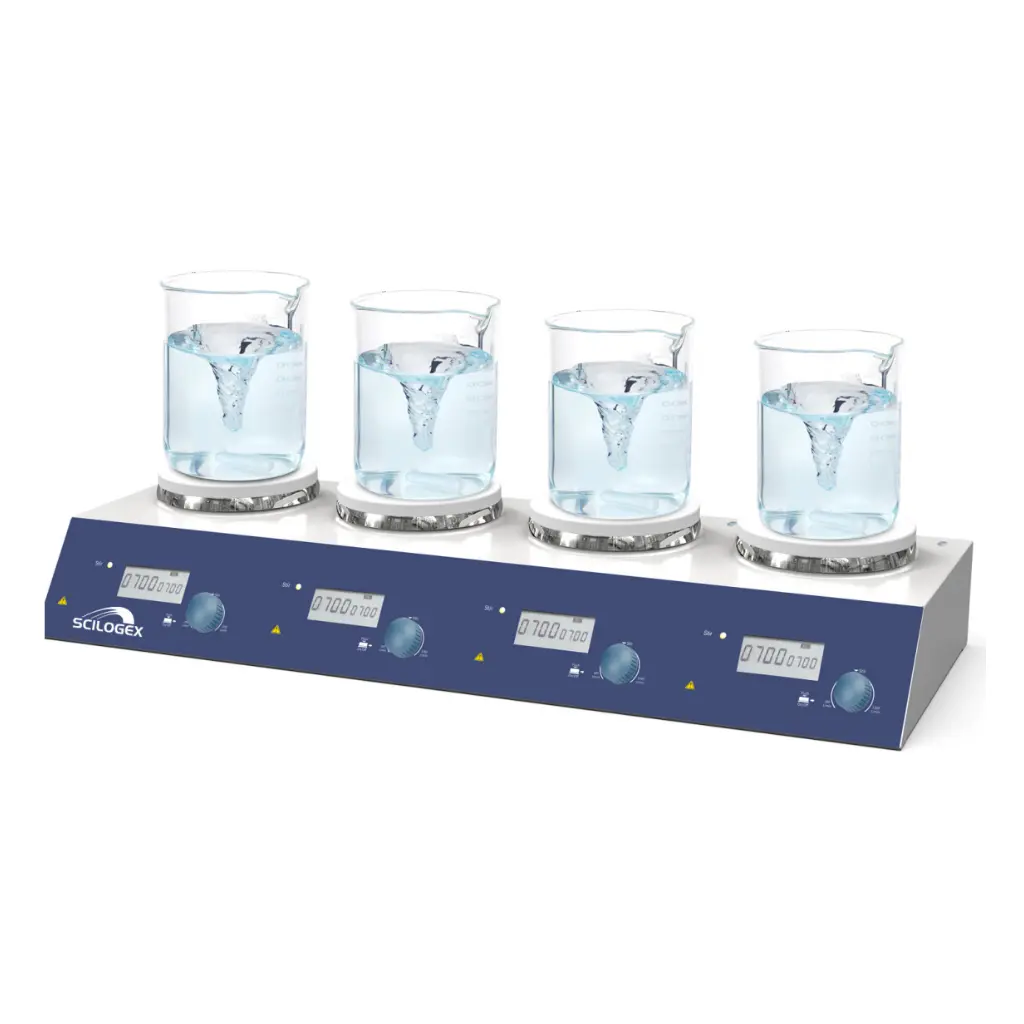

SCILOGEX SCI-S4 4-Channel Stirrer, Ceramic Plate, 110V, 50/60Hz, US Plug

Cat. No.
811411029999
https://www.scilogex.com/web/image/product.template/6689/image_1920?unique=4bd7cca
SCILOGEX SCI-S4 4-Channel Stirrer, Ceramic Plate, 110V, 50/60Hz, US Plug

1,355.00 1,355.00 In stock
In Stock 2 Year Warranty

Weight: 8.7 kg

1,355.00

Currently Out-of-Stock

This combination does not exist.

Add to cart Buy now
In Stock 2 Year Warranty



For more information please call +1 (860) 436-9221 or email us at [email protected]

Get the best price
for your organization today

Product Features

  • 4 channels with independently control of start/stop, temperature, speed and display for better parallel experiment control.
  • Ceramic coating aluminum work plate with fast heat transmission and strong resistance to corrosion.
  • Powerful, rapid heating with accurate PID temperature control
  • Spark-free DC brushless motor with extended life and no maintenance
  • Compatible with various heating block or reaction vessels for a variety of application scenario
  • Ultra space-saving with 4 channel integrated in one instrument
  • “HOT” warning flashes on the LCD display if the work plate temperature is above 50℃ after the user turn off the power switch.
  • Two independent safety circuits keep monitoring the instrument. When overheating is detected and the sensor malfunctions, it will stop heating and sound alarm; When short circuit is detected, it will cut off the power to ensure the human safety.
  • Reliable safety mechanism, compliant to IEC61010-1\UL61010-1\BSEN61010-1\CAN\CSA-C22.2NO.61010-1 and all other safety regulations of laboratory heating devices, competent with tasks without human surveillance.

The 4 channel hotplate magnetic stirrers are designed for parallel experiment and multiple parameter optimization, thus can serve as handy tools for Kjeldahl nitrogen determination, Soxhlet extraction and parallel synthesis, etc. They are ideal choices for test laboratories in food, animal feed, textile, soil, sewage, water treatment, pharmaceutical, polymerization, petroleum products, resin and plastic sectors. The user can handle 4 tests at the same time with stable performance, good reproducibility, high accuracy and easy operation.

Product Specifications

Work plate dimension Ø134mm
Work plate material Aluminum with ceramic coating
Motor type Brushless DC motor
Motor rating output 5Wx4
Heating power -
Total power 5Wx4
Voltage, Frequency 100-240V,50/60Hz
Stirring positions 4
Max. stirring quantity (H₂O) 3Lx4
Max. stirring quantity (H₂O) per channel 3L
Max. magnetic bar [length] 40mm
Speed range 200-1500rpm
Speed control accuracy [rpm] ±20
Speed display LCD
Temperature display LCD
Heating temperature range -
Overheating protection -
Temperature display resolution -
Temperature control accuracy -
External temperature sensor -
IP protection class IP21
Dimensions (WxDxH) 701x265x127mm
Weight 8.7kg
Permissible ambient temperature and humidity 5-40°C, 80% RH
