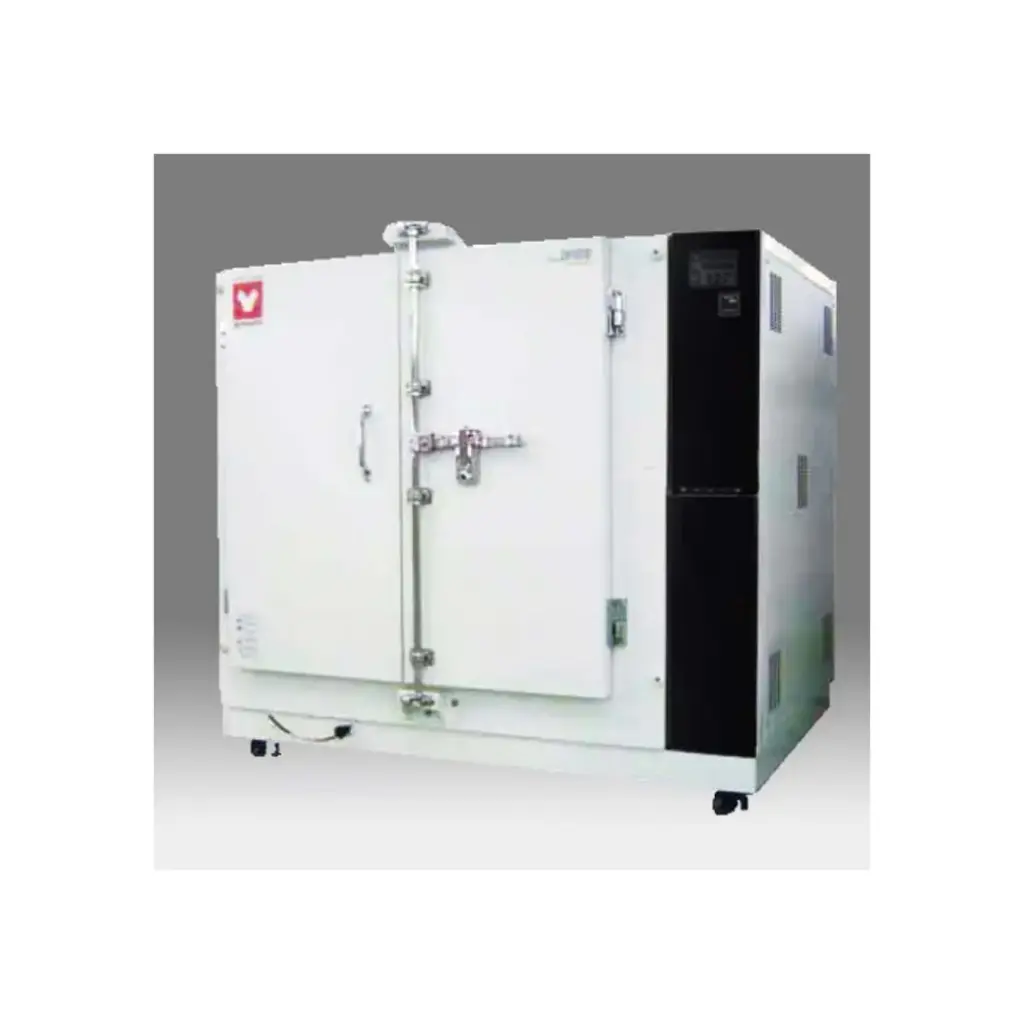

Yamato DF & DH Series Large Capacity High Performance Fine Ovens

Yamato DF & DH Series Large Capacity High Performance Fine Ovens

Large capacity high-performance fine ovens designed to support high throughput with high accuracy temperature control and exhaust damper

$ 15,330.00 $ 15,330.00 In stock
In Stock Usually ships in 1 week

$ 0.00

Model
- [797059926695] DF832 - 220V
- [797059926701] DF1032 - 220V
- [797059926732] DH832 - 220V
- [797059926749] DH1032 - 220V

This combination does not exist.

Add to cart Buy now Instant Quote

For more information please call +1 (860) 436-9221 or email us at [email protected]

Get the best price
for your organization today

DF DH 832/1032

Operation and functions

Allows precision maintenance of large parts at a constant temperature
Quick exhaust and cooling in the unit with the exhaust damper

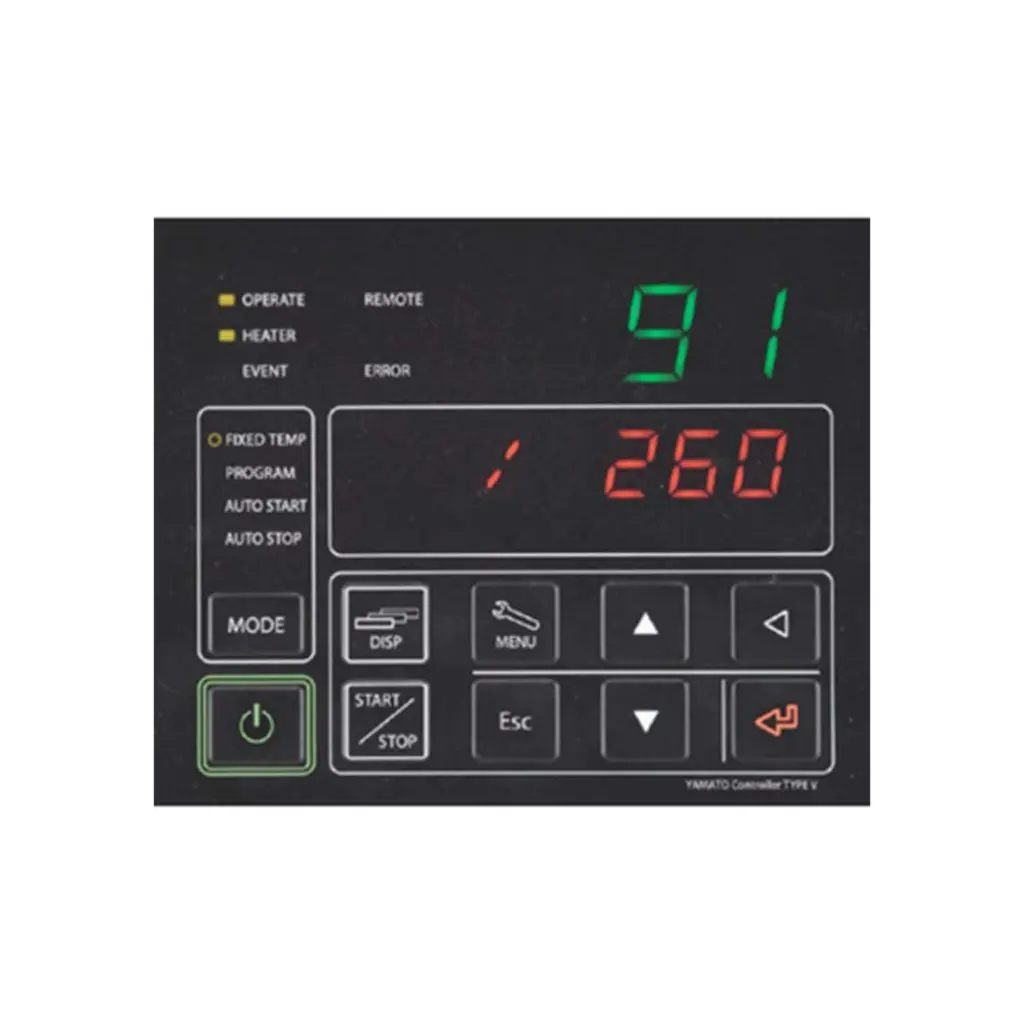

Interactive key entry on the control panel with a green LED digital display for easy settings
Features power consumption /CO₂ emissions monitoring
Increased safety and self-diagnostic functions

40 years as a leading scientific lab equipment provider in the United States.

All products come with a 1 year warranty.

Every product is made through environmentally conscious methods and remains eco-friendly all throughout its life cycle.

Model	DF832	DF1032	DH832	DH1032

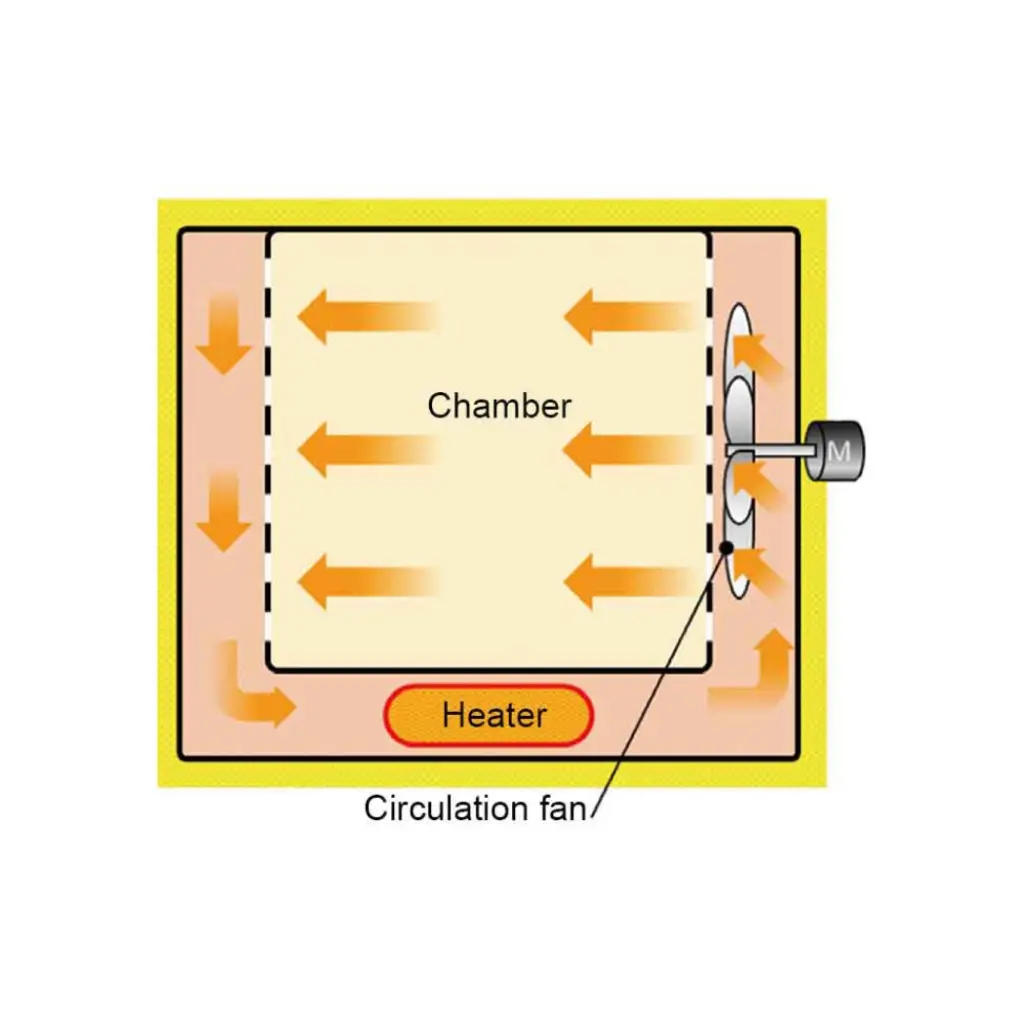

System	Forced air circulation and ventilation
Operating temp. range	Room temp. +15°C~200°C		Room temp. +15°C~300°C
Temperature fluctuation	±0.5°C (at 200°C)		±1.0°C (at 300°C)
Temperature slope	15°C (at 200°C)		20°C (at 300°C)
Temperature controller	PID Z control
Temp setting method	Digital setting with ▲▼ keys
Timer	0 min~99 hrs 59 min (Resolution: 1 minute or 1 hour)
Operation function	Fixed temperature operation, Program operation (maximum 99 steps, up to 99 patterns, repeat operation function) Duration/time select timer operation function (fixed temperature operation, auto start/auto stop/quick auto stop, program operation auto start)
Additional functions	Accumulated Power on and Operation Time (up to 65,535 hours); Calendar Time (24 hours); Calibration Offset; Monitor Display of Accumulated Power Consumption, Total CO₂ Emission, and Heater operating Output; Power Recovery Mode; User Settings Save and Restore Function; Fan Speed Setting Function
Sensor	K-thermocouple (double sensor)
Heater	Stainless steel pipe heater with a fan
	4.5kW	6.0kW	6.9kW	9.0kW
Fan motor	Stainless steel axial flow fan (capacitor motor: 20W), Two motors used for Model 1032
Cable port	I.D. φ30mm (rear)
Heat insulator	Glass wool		Glass wool + ceramic fiber
Other additional structure	Exhaust damper (manual operation)
Safety device	Self-diagnostic functions (temp. sensor error, heater disconnection, SSR short-circuit, automatic overheat prevention), door switch, fan failure detection, key lock, independent overheat protection, electric leakage breaker with over current protection
Power supply 50/60 Hz	3 phase AC220V 13.5A (no plug, round terminal)	3 phase AC220V 17A (no plug, round terminal)	3 phase AC220V 20A (no plug, round terminal)	3 phase AC220V 28A (no plug, round terminal)
Internal dimensions WxDxH	800 x 800 x 800 mm	1000 x 1000 x 1000 mm	800 x 800 x 800 mm	1000 x 1000 x 1000 mm
External dimensions WxDxH	1500 x 1015 x 1330 mm	1700 x 1215 x 1530 mm	1500 x 1015 x 1330 mm	1700 x 1215 x 1530 mm
Internal capacity	512L	1,000L	512L	1000L
Weight	~350kg	~450kg	~350kg	~450kg
Included accessories	Shelf and brackets
Shelf / bracket	3 pcs. / 6 pcs.

Click on the links below to download the associated PDFs.

Oven Overview

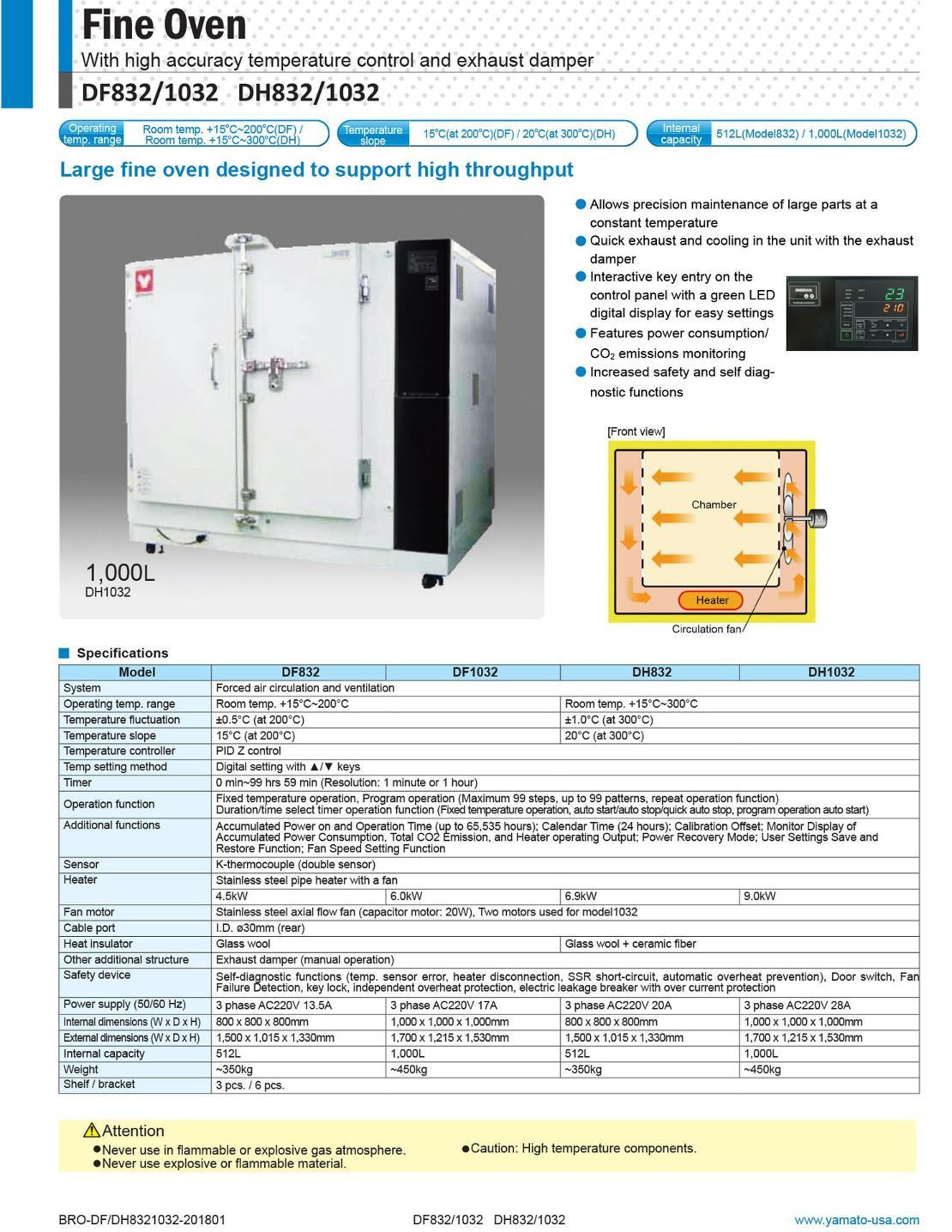

DF DH 832/1032 Catalog

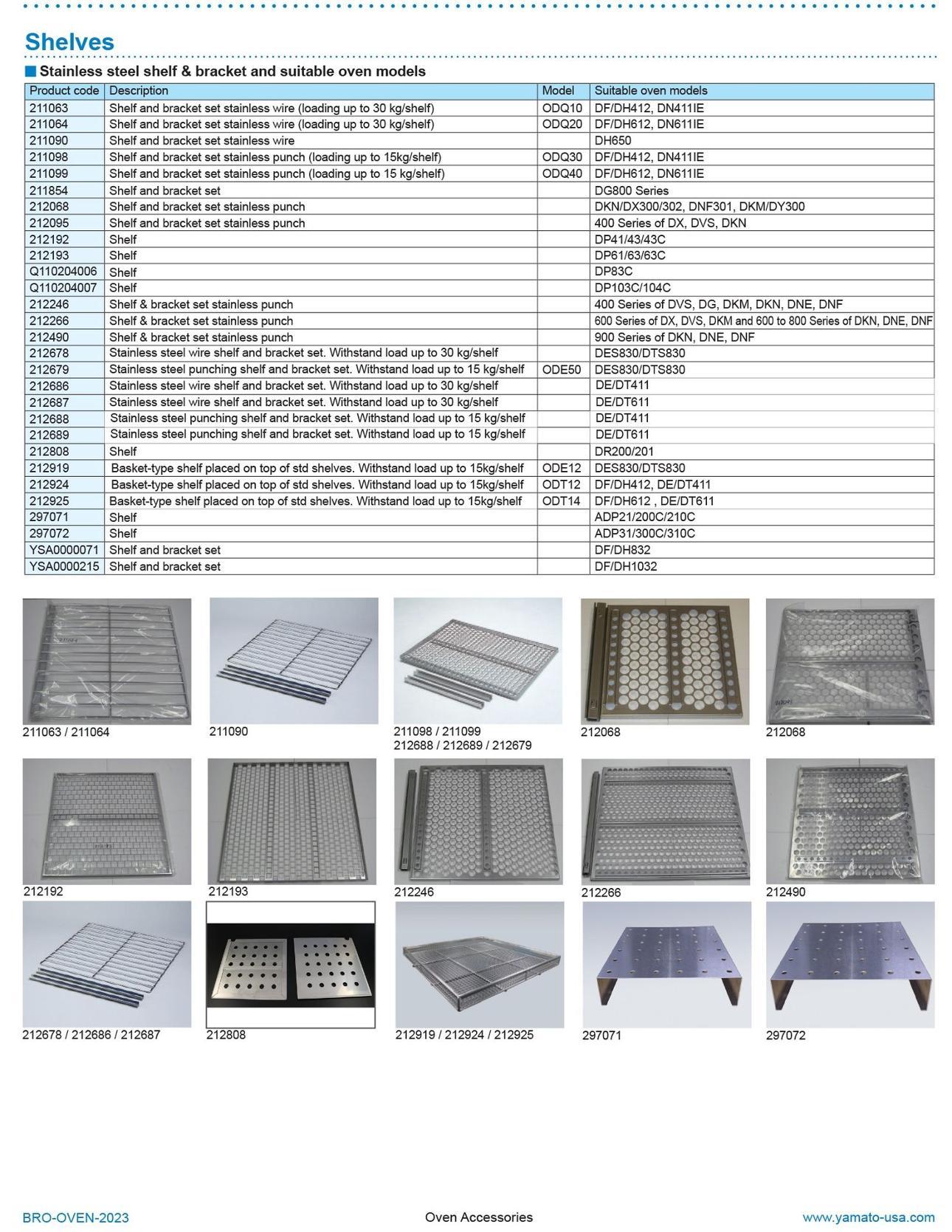

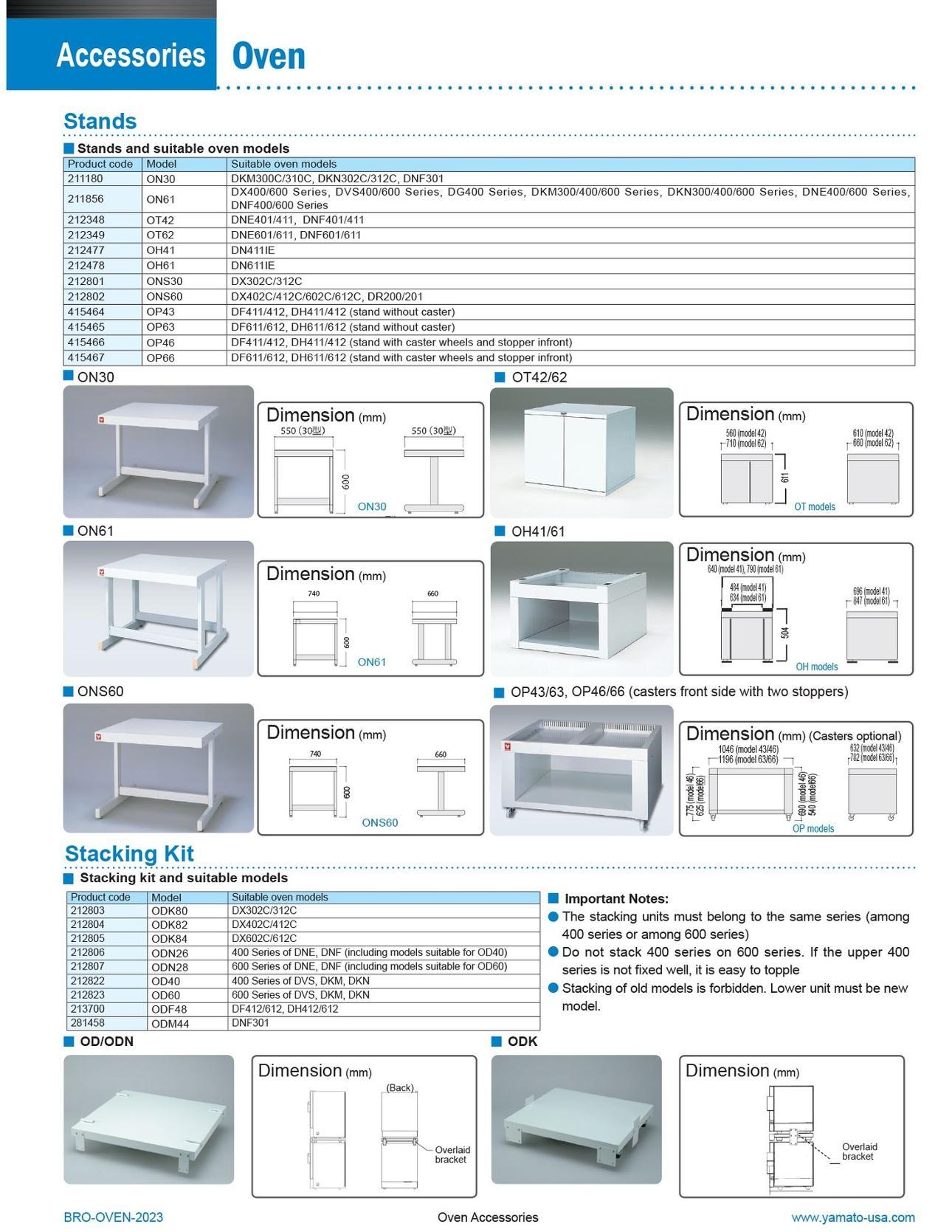

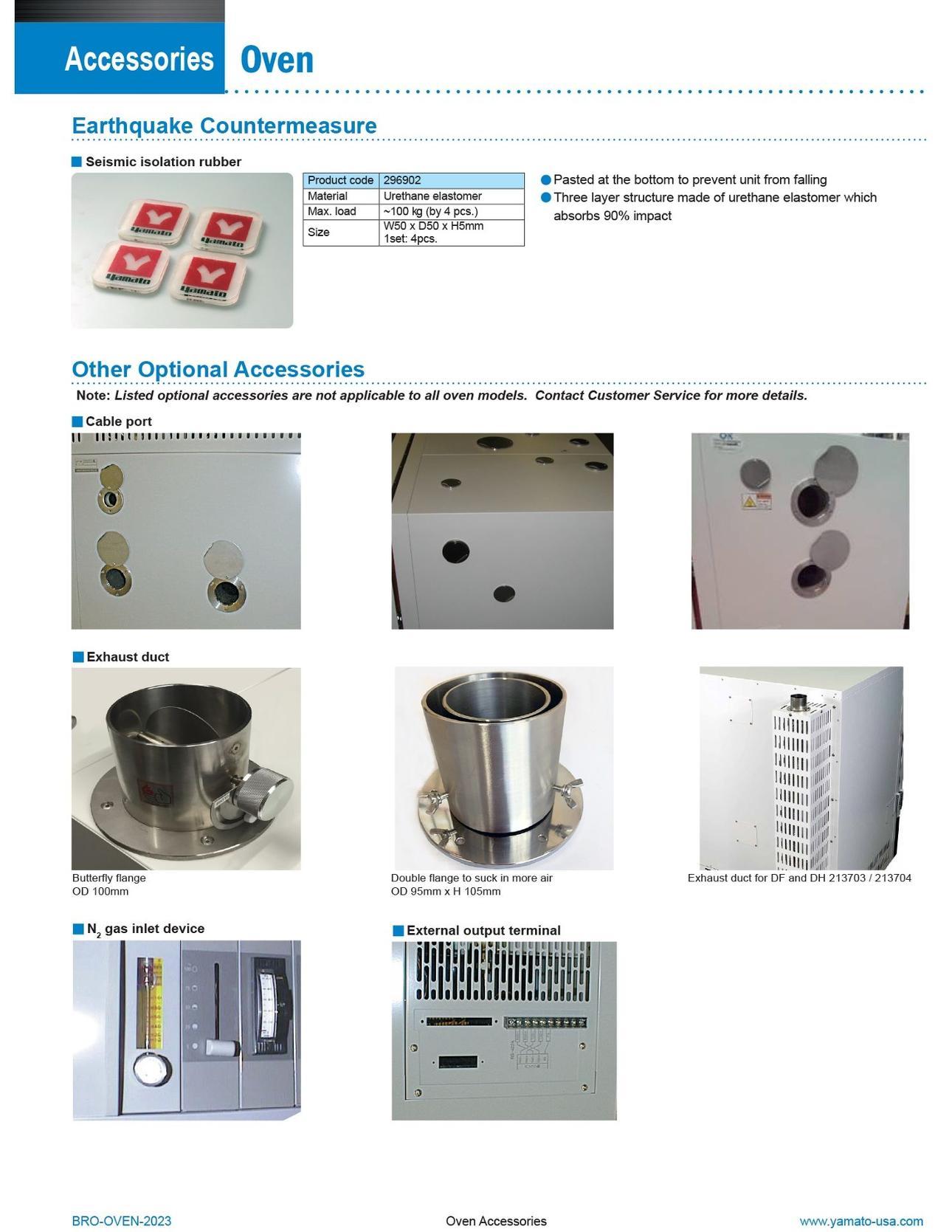

Oven Accessories
